3D Potter 3600 ml Linear Actuator Ram

3D Potter 3600 ml Linear Actuator Ram

The 3600ml extruder. designed to be used with the 3D PotterBot Scara V4. comes with two 3.75 diameter poly-carbonate tubes.?The 3600ml extruder is similar to the 4000ml. but its main purpose is for the Scara V4.

The?3600ml extruder is driven by a large closed loop hybrid stepper motor with a 0.625 Acme screw (larger than the 0.5 screw used on 3D Potter’s 1000ml and 2000ml). This is a much more robust drive system compared to the 2000ml extruder. It’s also capable of extruding thicker clay or paste at a much higher rate than the 2000ml. With a larger tube and the larger nozzle outlet. it is capable of larger-diameter nozzles up to .5″” (12.75mm).

**Note: This item does not qualify for free shipping. Shipping will be billed separately. Please contact us for an estimate.**

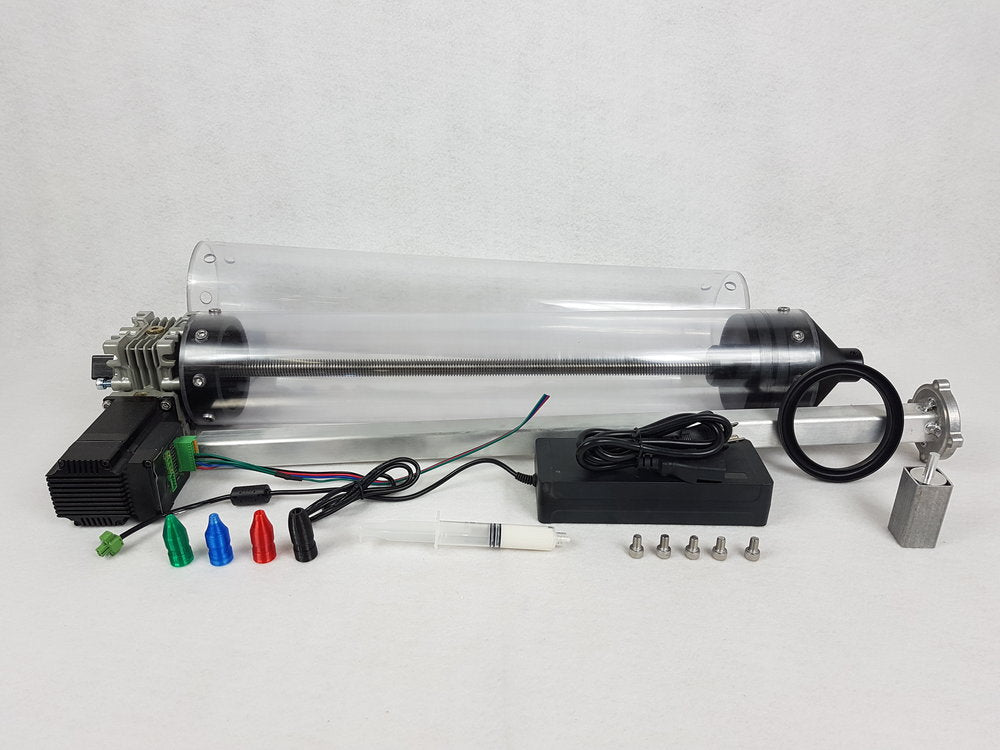

Linear RAM package includes:
– Extruder Assembly
– 2 poly-carbonate 3600 ml tubes
– Acme screw driver tool for fast loading/unloading
– Wire connector for motor
– Syringe with white lithium grease
– 4 nozzles: 3. 4. 5. and 6 millimeter
– Extra screws
– Extra seal
– Power supply with connector

When fully loaded with clay. extruder weight is ~27lb.
