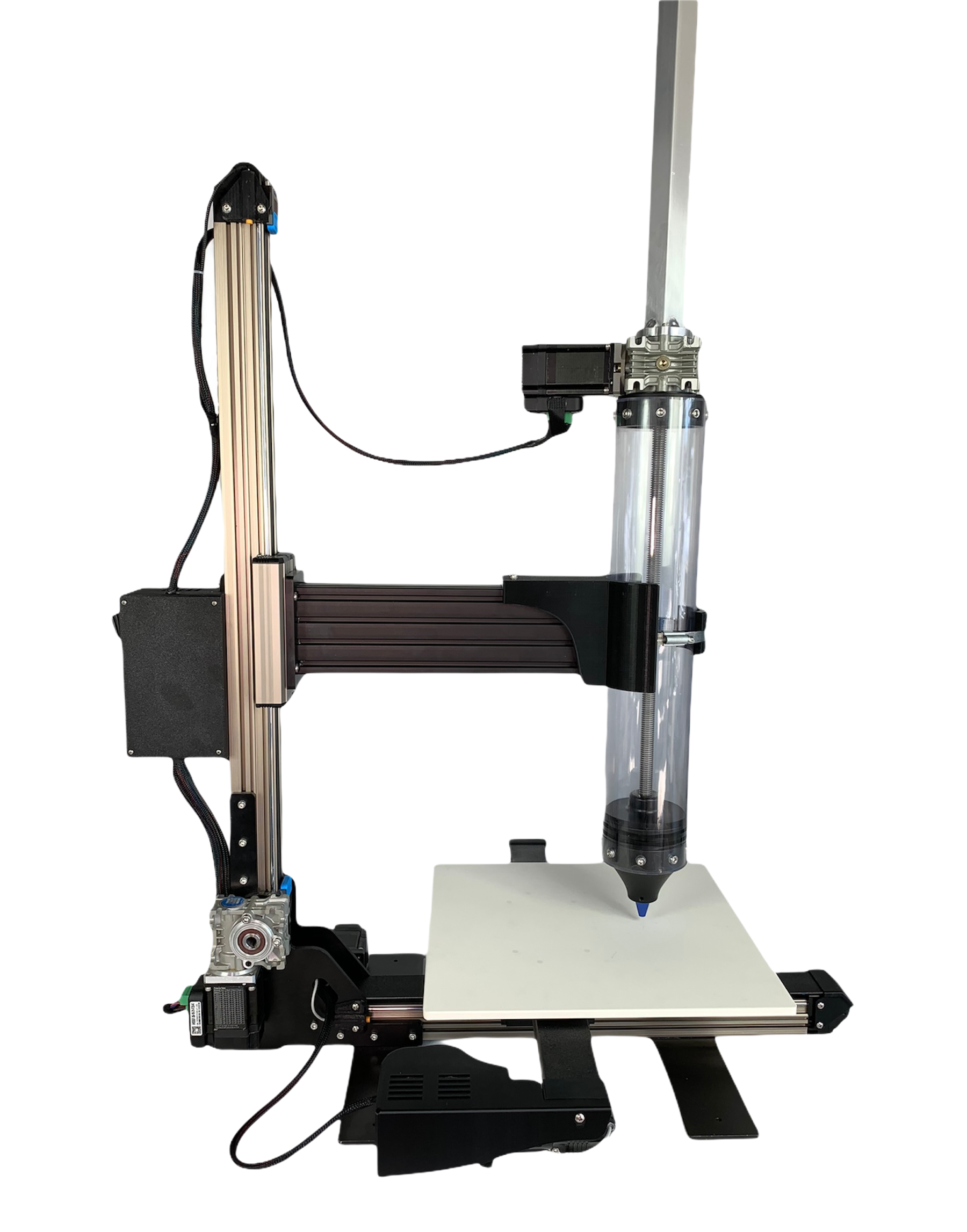

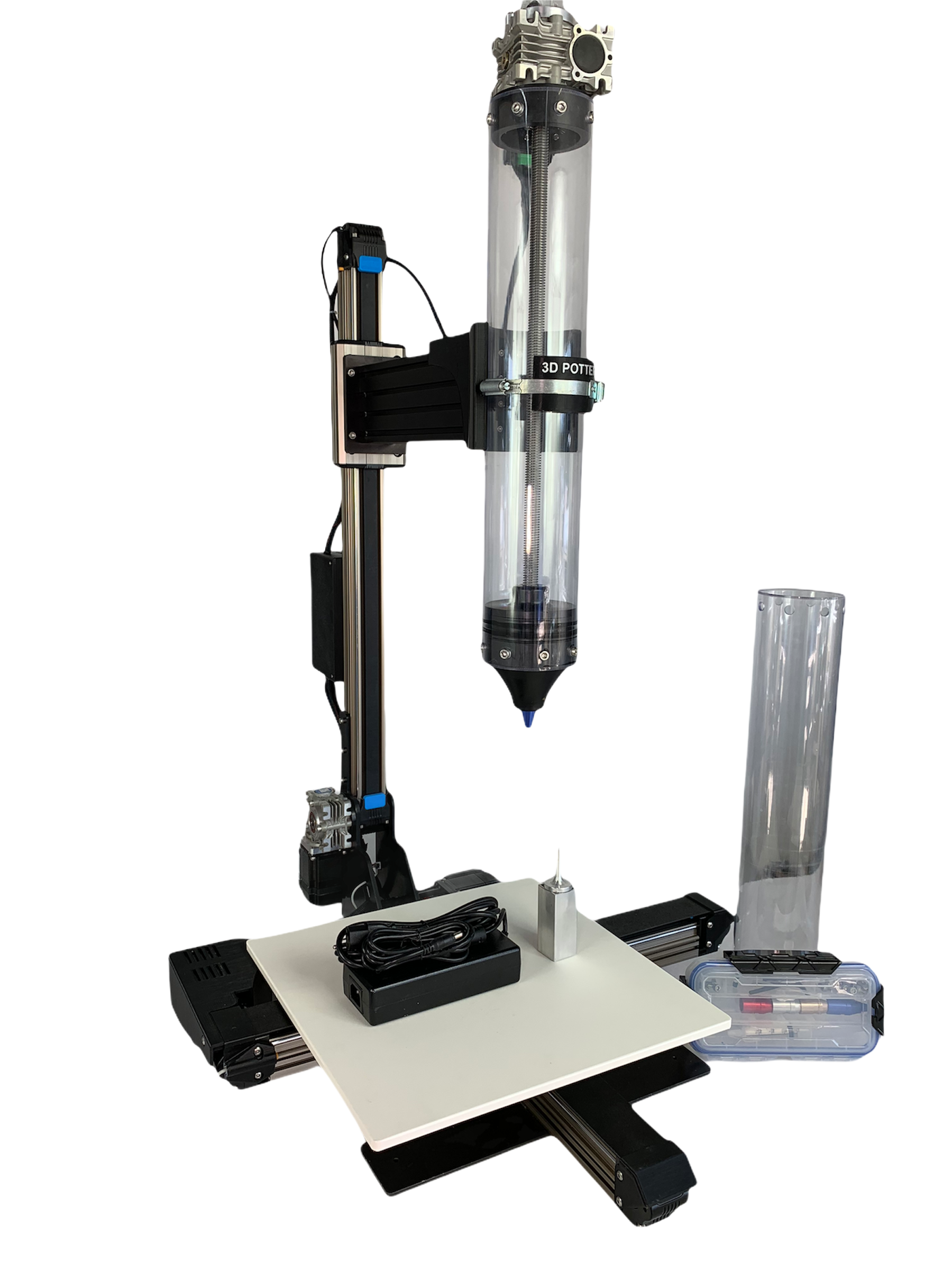

3D PotterBot Super 10 3D Printer

3D Potterbot Super 10

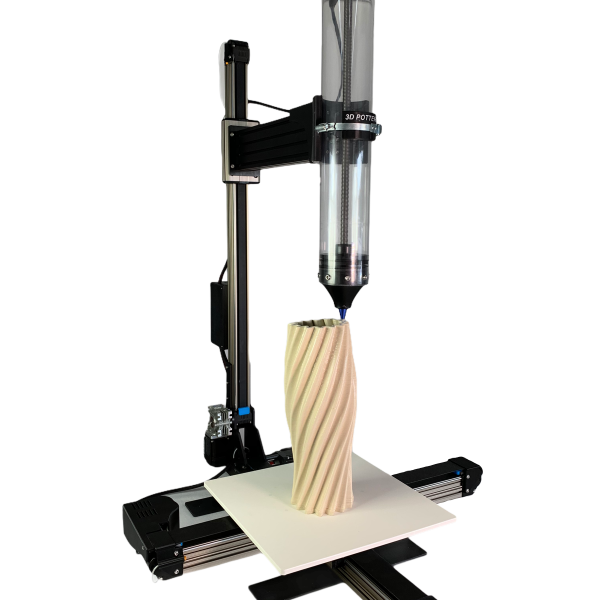

The SUPER 10 ceramic 3D printer model has a more robust construction to carry the higher-volume of 3600 ml clay extruder. This large hybrid motor extruder is capable of much faster speeds of extrusion than 3DP’s standard model 10. Large prints or sequential objects printing can be accomplished without changing the tubes so it is ideal for a production environment. If large prints?is?what you are looking for. you can also consider the?10XL. or the Scara models.

3D Potter Ceramic Printers

3D Potter ceramic printers use high quality anodized aluminum rails. These rails are robust and have a smooth surface. allowing for easy movement of parts while being able to withstand classroom or industrial environments.

The unique feature of our printers is the direct extrusion of real clay. Other brands use a compressed air system printing slip (watered down clay or alcohol diluted clay). The advantage of direct extrusion is printing full body clay. or other paste-like materials. All materials used to build our printers are food grade. so get creative.

3D Potter keeps improving its designs. The 10th generation brings a new wireless feature with a full web interface controlled over WiFi. You can now control and upload files to the printer from multiple devices simultaneously. The interface allows you full control over every setting of the machine. Interface preview.

The 10th gen has a new uniform nozzle design for improved performance. across all 3DP printers. This allows you to interchange nozzles between all 3DP printers. from the Micro to the Scara V4.

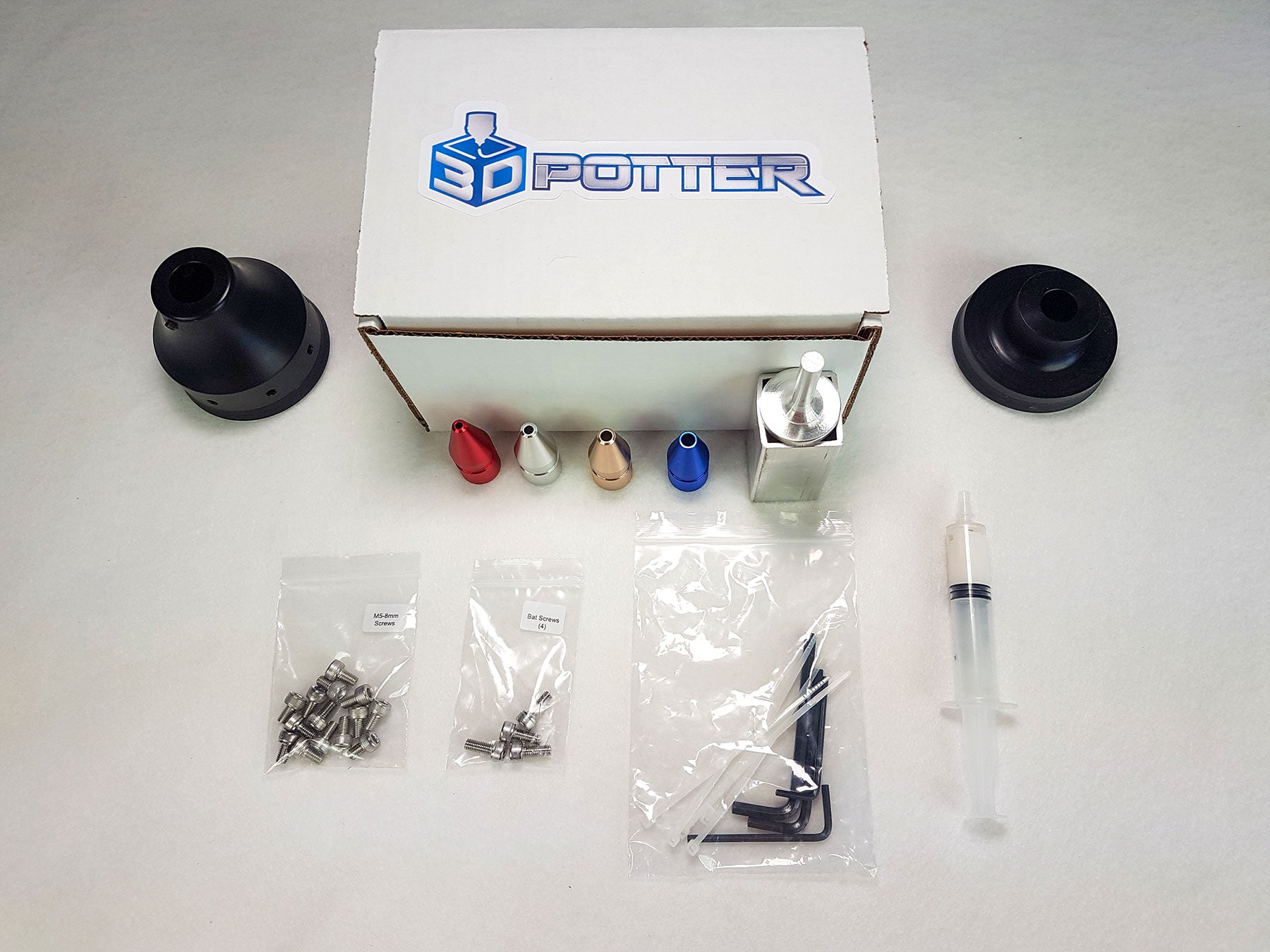

What’s included:

1. 3D PotterBot 10 Super

2. Closed loop stepper on X. Y. Z. extruder

3. 3600ml extruder. 2 tubes

4. 4 anodized aluminum nozzles (standard sizes: 3. 4. 5. and 6mm)

5. Parts Box: Alan key set. grease. Acme driver tool. tie wraps. extra screws

6. Power Supply.

Specifications

Printing Envelope:
X-16 (415mm)
Y-16 (405mm)
Z-20 (500mm)

Printer size:
W-26 L-34 H-40
Operation space needed: W-32 L-40 H-78
Bat diameter (printer bed): 15 (381mm)
Height to the top of the extruder fully extended is 78 (1981mm)
Weight with extruder: 52 lbs. (23kg)

Recommended print speed: 1.1 /s’ to 7.9”/s (30 to 200 mm/s)
Maximum print speed: 7.9in /s (200mm/s)
Power Supply: Output – 24V 10 amps. Input – 100-240V. 50-60 Hertz.
Power consumption: 24V ~5 amps. ~120 Watt
Main controller board running Duet3D with Atmel SAM4E8E: 120MHz ARM Cortex-M4

Full control through web interface. no apps or software installation. Non-WiFi versions are available. please contact us if you would like this type of connection (Ethernet connection).
