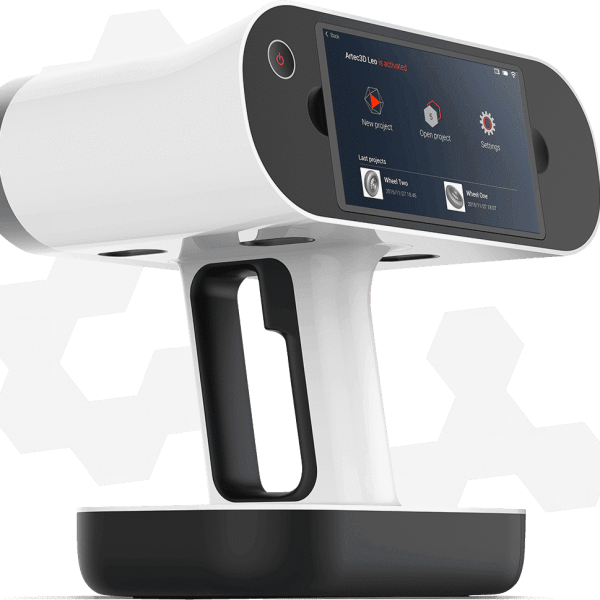

Artec Leo – Education Package – 3D Scanner

Breakthrough 3D scanning speed

The 80 frames per second 3D reconstruction rate makes Artec Leo the fastest professional handheld 3D scanner on the market. Furthermore. with its large field of view. Artec Leo can 3D scan and process even large objects and scenes fast and accurately. And for even greater precision. users can point the scanner closer to the object to pick up intricate detail. just as they would zoom in with a video camera.

A fully mobile scanning experience
Thanks to the powerful embedded processor and the inbuilt battery. Artec Leo gives you true freedom in 3D scanning. With no need to connect to a computer or plug into a mains power source. you can hold Leo in one hand and walk around freely. scanning your object unhampered by any wires or additional equipment. Purchase supplementary battery modules for unlimited 3D scanning on expeditions or in remote areas with no power supply.

?

The smartest 3D scanner on the market
Artec Leo contains state-of-the-art technologies. including the NVIDIA? Jetson? platform. which is the scanner’s own internal computer. featuring Quad-core ARM? Cortex?-A57 MPCore CPU and NVIDIA Maxwell? 1 TFLOPS GPU with 256 NVIDIA? CUDA? Cores; a built-in 9 DoF inertial system C accelerometer. gyro and compass C which allows the scanner to understand its position and environment; and a two-in one optical system designed to spec for the most exact texture to geometry mapping.

?

Designed for usability

With a built-in battery. touch panel screen and wireless connectivity. Artec Leo takes handheld 3D scanning to the next level. Have complete freedom of movement when you scan. stream video to a second device via Wi-Fi or Ethernet. if an additional display is needed. and upload your data at the touch of a button. Add to these features a carefully balanced. ergonomic design. devised to make 3D scanning in one hand easy and comfortable. and you have a next-generation professional 3D scanner. built with usability in mind.

Applications
Since the user is able to capture both expansive areas and fine detail. Artec Leo can be used for scanning a range of objects. from small mechanical parts to the human body. cars. boats or crime scenes. As with all Artec 3D scanners. the applications are wide and far-reaching. including industrial manufacture and quality control. healthcare. forensics. VR and e-commerce. Furthermore. Artec Leo’s new wireless functionality and internal processor allow for a wealth of integration possibilities. making it even easier to streamline your application. regardless of the industry.

The most mobile 3D scanner on the market

With its inbuilt battery and Wi-Fi connectivity. Artec Leo offers true freedom in 3D scanning. Move right around your object. unhampered by any wires!

?

Built-in touch panel screen and simple interface

See your 3D model being built directly on the scanner itself. Check your model. change the settings or touch it up with some simple tools in the easy to use interface on the touchscreen. Wirelessly connect to a second screen. for ease of scanning or collaborative work.

Built-in 9 DoF inertial system

The internal accelerometer. gyro and compass mean that Artec Leo is the only handheld 3D scanner to be able to precisely pinpoint its position within its surroundings. even differentiating between horizontal and vertical surfaces. such as floors and walls.

Unparalleled texture to geometry mapping

No need for targets

As with all Artec’s full powered 3D scanners. Leo uses powerful hybrid geometry and texture tracking. meaning you can really just point at your object and shoot. No need to stick targets on it (and then remove them!).

Built-in SSD drive

Store 256 GB on the SSD drive. You can also extend the capacity. storing unlimited data on micro SD cards. Ideal for 3D scanning in the field!

3D HDR

Scan tricky objects in HDR. For great capture of black and shiny areas. for example. normally difficult materials for 3D scanners to render.

A wealth of integration possibilities

The head of the scanner can be mounted to robotic arm or a conveyor system for automated 3D scanning. or synced with multiple devices and used in multi 3D scanner installations.

Reverse Engineering

Industrial Design and Manufacturing

Healthcare

Science and Education

Art and Design

–Product design

–Customisation

–3D documentation

?

–Reverse engineering

–Quality control

–Rapid prototyping

–Aerospace

–Orthopedics

–Prosthetics

–Plastic surgery

–Custom wheelchairs

–Research

–Training

–Online museums

?

–Heritage preservation

–Architecture

–CGI

–Fashion

?Artec Leo technical specifications*?

A quantum leap above industry standard Artec Eva

Display

Built-in half HD touch panel screen

Processing

On-board real-time processing

Volume capture zone

Over double the size

3D reconstruction rate. up to

Leo: 80 FPS.? Eva: 16 FPS

3D resolution. up to

0.5 mm

?3D point accuracy. up to

0.1 mm

Color resolution

2.3 mp

Structured light source

VCSEL

Position sensors

Built-in 9 DoF inertial system

Connectivity

Wireless connectivity and data transfer

Power source

In-built exchangeable battery. optional mains power

Multi-core processing

NVIDIA? Jetson? TX1
