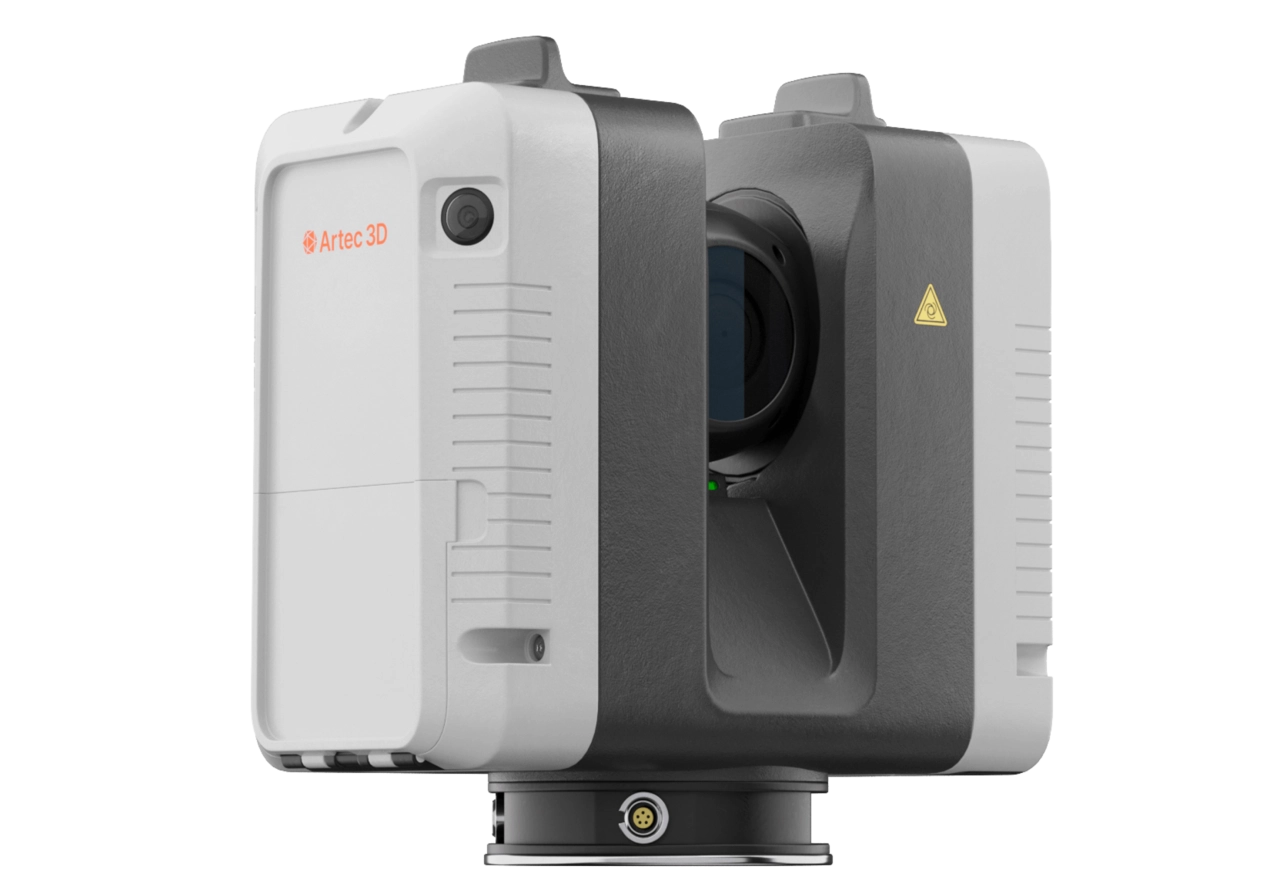

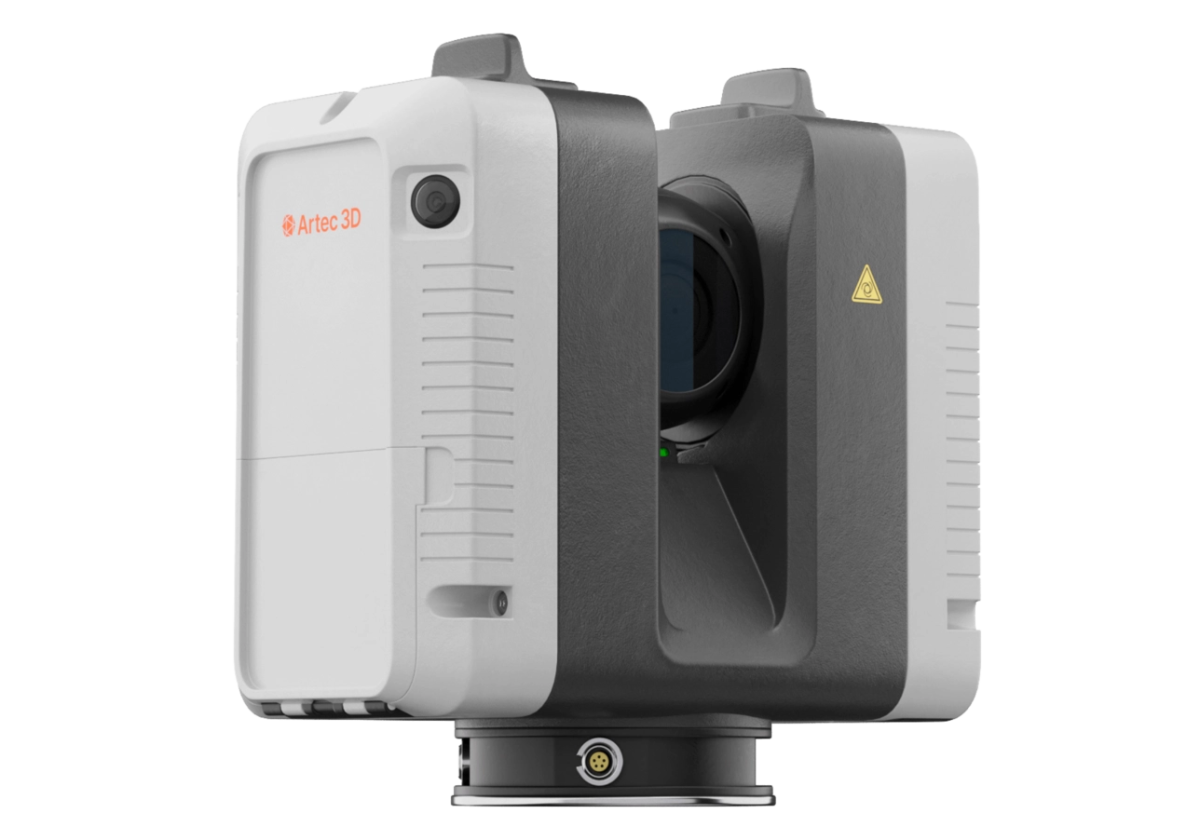

Artec Ray II

Lightning-fast long-range laser 3D scanner for professional captures with high accuracy.

Speed

Capture a full dome at highest resolution in 1.7 mins.

Accuracy

Expect data with an uncompromised 3D point accuracy of 1.9 mm from 10 meters.

Resolution

No details missed at a resolution of 3 mm at 10 meters.

INTRODUCING THE ARTEC RAY II

With the high-accuracy. long-range. wireless Ray II laser 3D scanner you can precisely and rapidly capture large to massive objects. scenes or areas. and from up to 130 m away. Expect 3D point accuracy that meets high professional standards and best-in-angular-class accuracy.

Ideal for precise capture of huge objects such as wind turbines. ship propellers or airplanes. bridges or factory floors. forensic scenes or archeology sites. this professional LiDAR solution produces 3D scans of the highest quality. whether your application is reverse engineering. inspection. creating true-to-life digital twins. documenting crime scenes. or making change-over-time assessments of civil infrastructure.

The wireless Ray II’s lightweight portability make it a cinch to take anywhere you need: vehicles can be captured in minutes. aircraft and full-sized buildings in just a few hours.

LIGHTNING FAST AND LONG RANGE

Metrology-grade precision

Artec Ray II scans with high 3D point accuracy and best-in-class angular accuracy.

Check and Adjust

If your device isn’t perfectly calibrated. your scanner will either automatically calibrate itself by scanning the surroundings. or let you know if further action is required.

Accuracy Certificates

Scan with full confidence knowing that your scanner has been verified to fall within specifications.

Lifelike replicas

In heritage preservation. Ray II enables the recreation of every detail in true-to-life color.

Comprehensive long-range capture

With the long-range 3D scanner Ray II. the expansive 360°-300° field of view gives you flexibility to capture objects from 0.5 to 130 meters away. and with high accuracy and superior quality.

Onboard Control

Fuss-free scanning is ensured with the intuitive Ray II ?with basic features accessible on board. it’s as simple as pressing a button. with no computer or other device needed.

Portable and quick to set up

At just 5 kg including the tripod. Ray II 3D scanners need no targets and are ready for full setup in mere seconds.

Remote Scanning

When scanning something large. in an inaccessible location. or at a height you can’t safely be on. control your scanner easily and from a distance with the Artec Remote App.

Real-time registration on board

Track the scanner’s movement in real time with feature tracking and advanced algorithms for intuitive 3D-space navigation including Ray II’s Visual Inertial System (VIS). Altimeter. compass. and Global Navigation Satellite System.

Automatic removal of moving objects

Ray II’s smart auto-removal of moving objects that may enter or exit the scene keeps all captured data focused on exactly what you need.

Continuous supply battery system

Powered by two hot-swappable batteries and another two on standby. the 3D laser scanner Ray II comes ready to scan for a full 8 hours. Need more time? Charge while you scan. and swap without any downtime.

Water and dust protection: IP54 (IEC 60529)

Your scanner is protected and your work kept safe with the Ray II’s water and dust protection. designed to keep particles or humidity from getting into your device.

Power couple

An unbeatable combination of two smart. wireless scanners: Artec Ray II’s range and speed for full scenes and large objects. the handheld Artec Leo for specific areas and angles.

Perfect match for Leo

Exceptionally well-suited for use with the wireless powerhouse Artec Leo. the duo can quickly capture large or even massive objects with high accuracy and full coverage.

Scan-to-CAD export

Upload to Artec Studio to precisely position and fit your scans with CAD primitives. then export to SOLIDWORKS or other CAD software ?or for inspection. directly to Geomagic Control X for in-depth reports.

Specifications

Accuracy and Resolution

3D point accuracy:

• 1.9mm @ 10 m
• 2.9 mm @ 20 m
• 5.3 mm @ 40 m

Angular accuracy:

– 18 arcseconds (0.87 mm @ 10 m)

Range accuracy:

– 1.0 mm + 10 ppm

Resolution:

– 3 user selectable settings: 3 / 6 / 12 mm @ 10 m

Range noise:

– 0.4 mm @ 10 m

– 0.5 mm @ 20 m

Field of view and range

Field of view:

– 360° (horizontal) / 300° (vertical)

Range:

– 0.5 – 130 m

Speed

3D capture rate:

– Up to 2.000.000 pts/sec

Scanning time without texture @ 10m:

– 1.7 min @ 3 mm resolution

– 0.85 min @ 6 mm resolution

– 0.4 min @ 12 mm resolution

Scanning time with texture @ 10m:

– 2.7 min @ 3 mm resolution

– 1.9 min @ 6 mm resolution

– 1.4 min @ 12 mm resolution

Color Capture

Camera:

36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image

HDR:

Automatic. 5 brackets

Operation

On scanner:

Touchscreen control with finger touch. full-color WVGA graphic display 480 × 800 pixels

Mobile devices:

Artec Remote app for iOS and Android tablets and smartphones including:

• Remote control of scan functions
• Settings selection
• Launch scanning

Algorithms

Real time registration:

Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by video-enhanced inertial measurement unit

Automatic Removal of moving objects:

Delete captured data of moving objects using Double Scan

Check and Adjust:

Field procedure for targetless checking of angular parameters

Navigation sensors

Visual inertial systems:

Video-enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time

Tilt:

IMU-based. Accuracy: 18 arcseconds (for upright and upside down setups with +/- 10° inclination)

Geolocation sensors:

Altimeter. Compass. Global Navigation Satellite System

Interfaces

Wireless:

Integrated wireless LAN (802.11 b/g/n)

Data storage:

AS256. 256 GB exchangeable USB 3.0 flash drive

Hardware Specifications

Scanning technology:

Time of flight enhanced by Waveform Digitizing (WFD) technology

Laser class:

1 (in accordance with IEC 60825-1:2014). 1550 nm (invisible)

Dimensions:

120 mm × 240 mm × 230 mm / 4.7″” × 9.4″” × 9.1″”

Weight:

5.35 kg / 11.7 lbs. nominal (without batteries)

Mounting mechanism:

Quick mounting on 5/8″” stub on lightweight carbon tripod or tripod adapter

Power

Internal battery:

2 × AEB364 internal. rechargeable Li-Ion batteries Duration: Typically up to 4 hours Weight: 340 gr. per battery

External:

GEV282 AC adapter

Environmental

Operating temperature:

-5° to +40°C

Storage temperature:

-40° to +70°C

Operating low temperatures:

-10° to +40°C

Dust/Humidity:

Solid particle/liquid ingress protection IP54 (IEC 60529)
