Bambu Lab 4-in-1 PTFE Adapter

Bambu Lab 4-in-1 PTFE Adapter

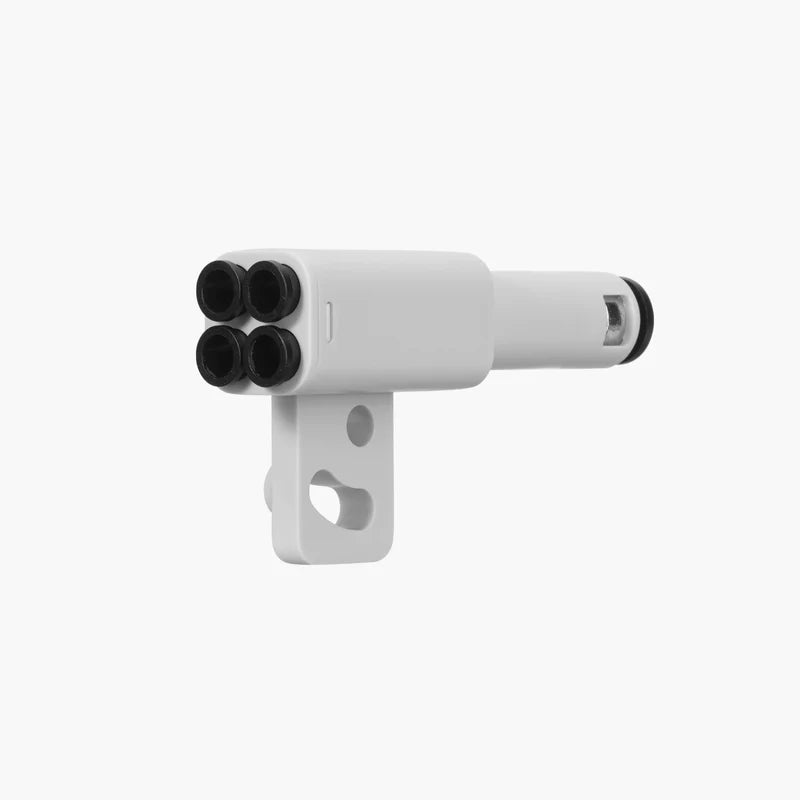

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector. the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)

It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A. Bambu PET-CF and other brands’ carbon-fiber/glass-fiber contained filaments.

Compatibility

X1 Series and P1 Series

In The Box

1x Bambu 4-in-1 PTFE Adapter

Instructions for use

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use. as shown in the figure below.

1. When using AMS:
• Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
• Connect the PTFE tube from the buffer output to one of its IN ends. – Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
2. When the AMS is not being used:
• Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.

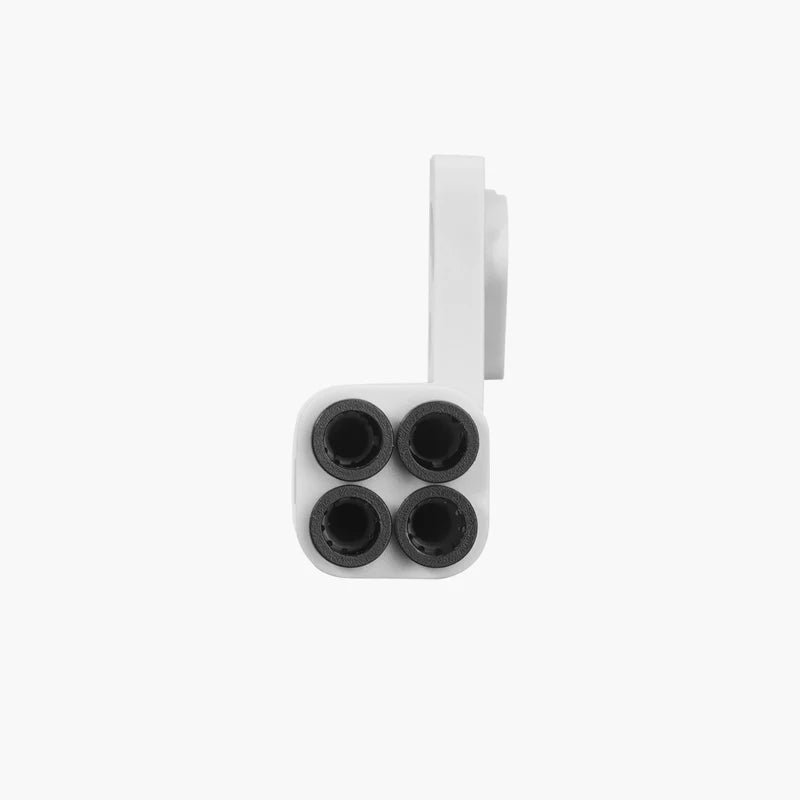

• Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

It is important to note that reversing connections may cause filament blockage. Therefore. it is essential to ensure that the installation direction is correct.

Manufacturer Number: FAZ013
