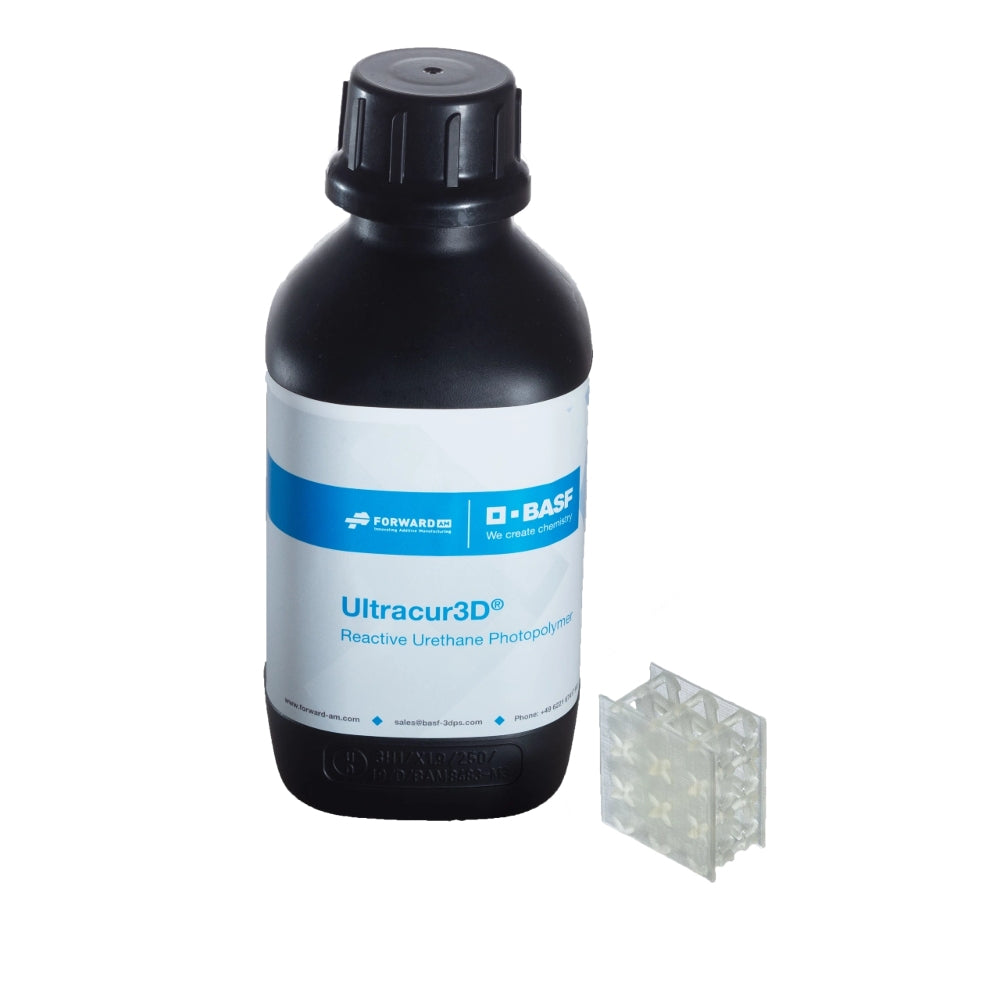

BASF – Ultracur3D FL 60

Ultracur3D? FL 60

Flexible Resin with Optimum Haptics and Low Hardness (Shore 60 A)

Ultracur3D? FL 60 by Forward AM is a well-balanced reactive urethane photopolymer for flexible applications that delivers exceptional flexibility with high tear strength. It provides high softness (Shore 60 A) and excellent haptics. while maintaining long-term color stability.

Benefits at a Glance

• Low hardness (Shore 60 A)
• Very good haptics
• Very stable clear-white color

Example Applications

• Footwear
• Functional prototyping
• Cushioning pads
• Flexible grip

Material Properties

• Rebound resilience: 11 %
• Tear strength (Graves): 9 N/mm
• Elongation at break: 90 %
• Hardness: 60 A

Ultracur3D? FL 60 rebound behavior

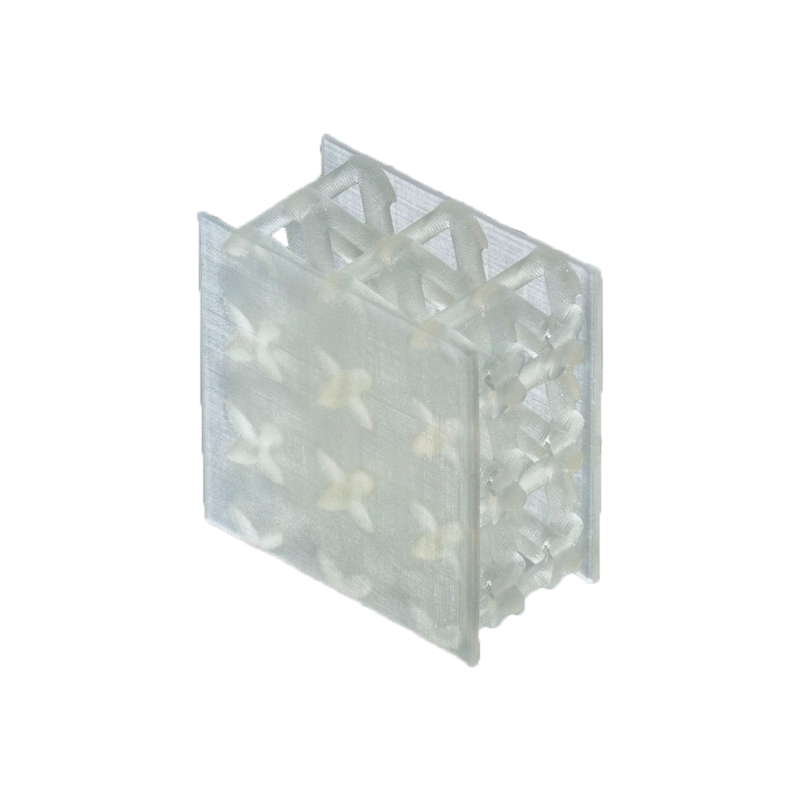

High speed videos of a drop tower test of a steel ball (~130g) onto a lattice structure (60x60x22mm3) from 0.95m height.

• The Ultrasim? material model can also be used for simulating flexible materials
• Depending on the material’s energy dissipation the Ultrasim? material model can be adjusted to reflect the correct rebound behavior

Material Details

• Technical Data Sheet
• User Guidelines

Material Test Data

• Sterilization overview
• UV stability
