BASF – Ultracur3D RG 1100 – Black

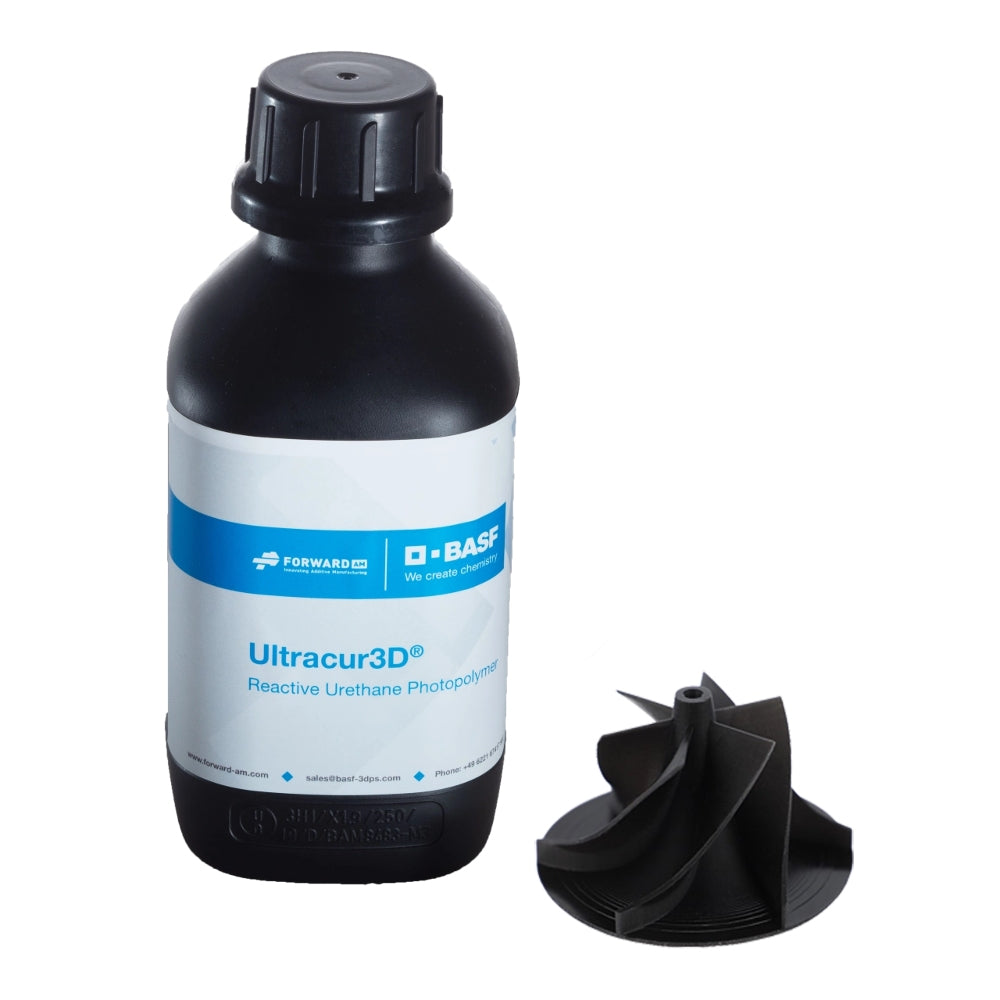

Ultracur3D? RG 1100 B

Rigid Resin with Superior Stiffness and Temperature Resistance

Ultracur3D? RG 1100 B (Black) by Forward AM is a high-strength polyurethane-based engineering grade resin with mechanical properties comparable to widely spread injection molding grades used in automotive or other demanding industries.

Due to its high heat deflection temperature (HDT 116 C). its good chemical resistance and long-term UV-stability this material is perfectly suitable for applications such as automotive connectors. demanding engineering parts. exterior covers. brackets and housings.

Benefits at a Glance

• Very high stiffness
• Impressive all-round temperature resistance
• Very high chemical resistance and low water uptake

Example Applications

• Automotive connectors
• Demanding engineering parts
• Exterior covers
• Brackets and housings

Material Properties

• Young’s modulus: 2950 MPa
• Tensile strength: 70 MPa
• Heat deflection temperature: 100 C
• Water absorption (24h): 0.42 %

Material Details

• Technical Data Sheet
• User Guidelines

Material Test Data

• Chemical test: RG 1100
• Steam Sterilization: RG 1100
• Sterilization overview: RG 1100
• UV stability: RG 1100
