BASF – Ultracur3D RG 35 – Black

Ultracur3D? RG 35 B

Rigid Resin with Optimum Combination of Strength. Stiffness and Temperature Resistance

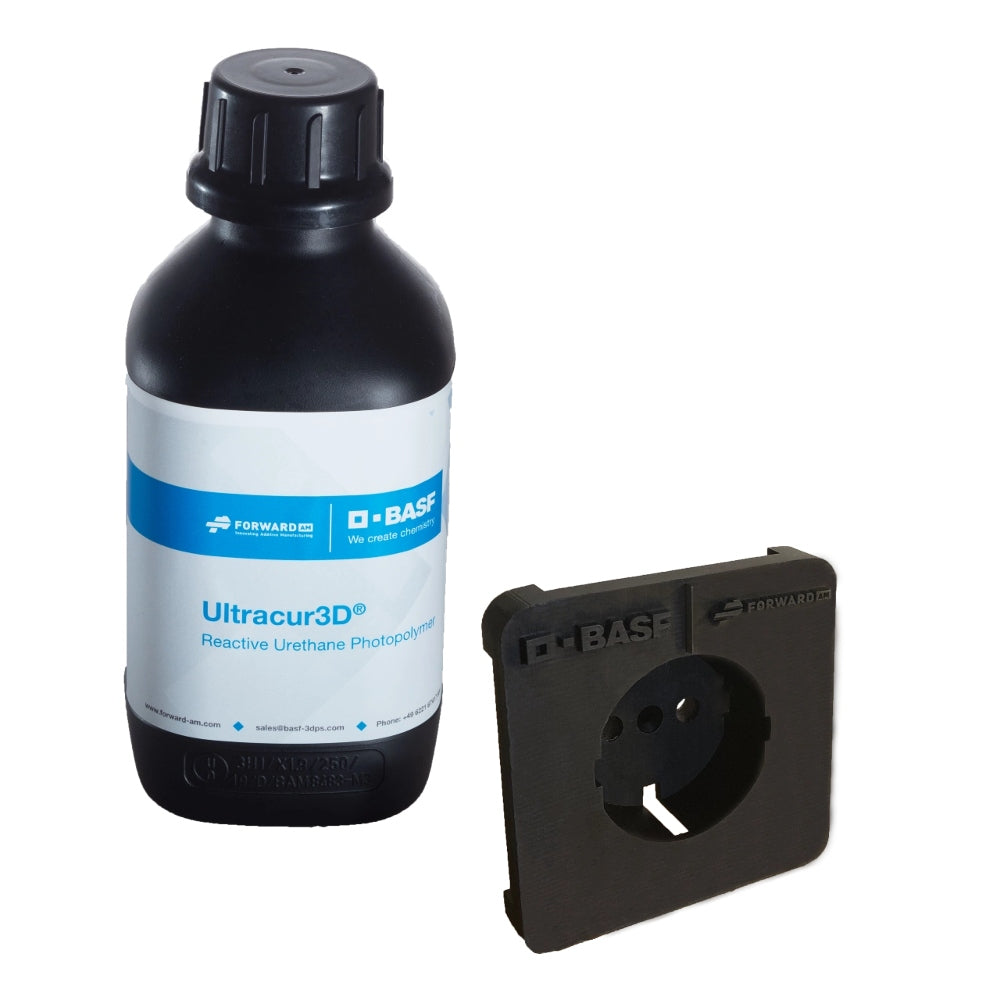

Ultracur3D? RG 35 B (Black) by Forward AM is a medium-viscosity. highly reactive urethane photopolymer for rigid applications that provides very high stability and stiffness. good temperature resistance. and low water uptake. It is very well suited to 3D printing high performance functional parts.

Benefits at a Glance

• Very high stiffness and high temperature resistance
• High accuracy and low shrinkage
• Low water uptake
• Easy to polish

Example Applications

• Automotive housings
• Jigs and fixtures
• Molds and inserts

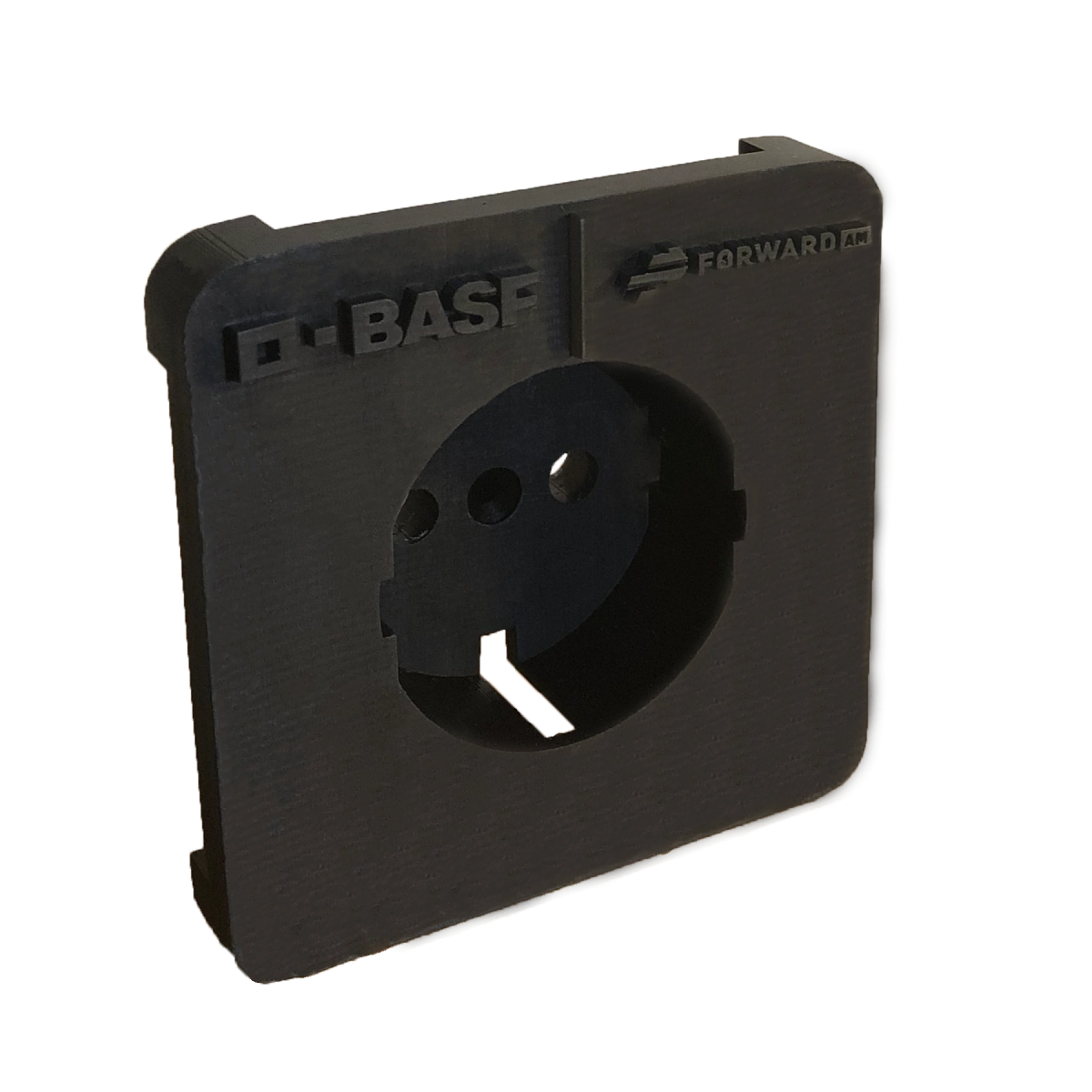

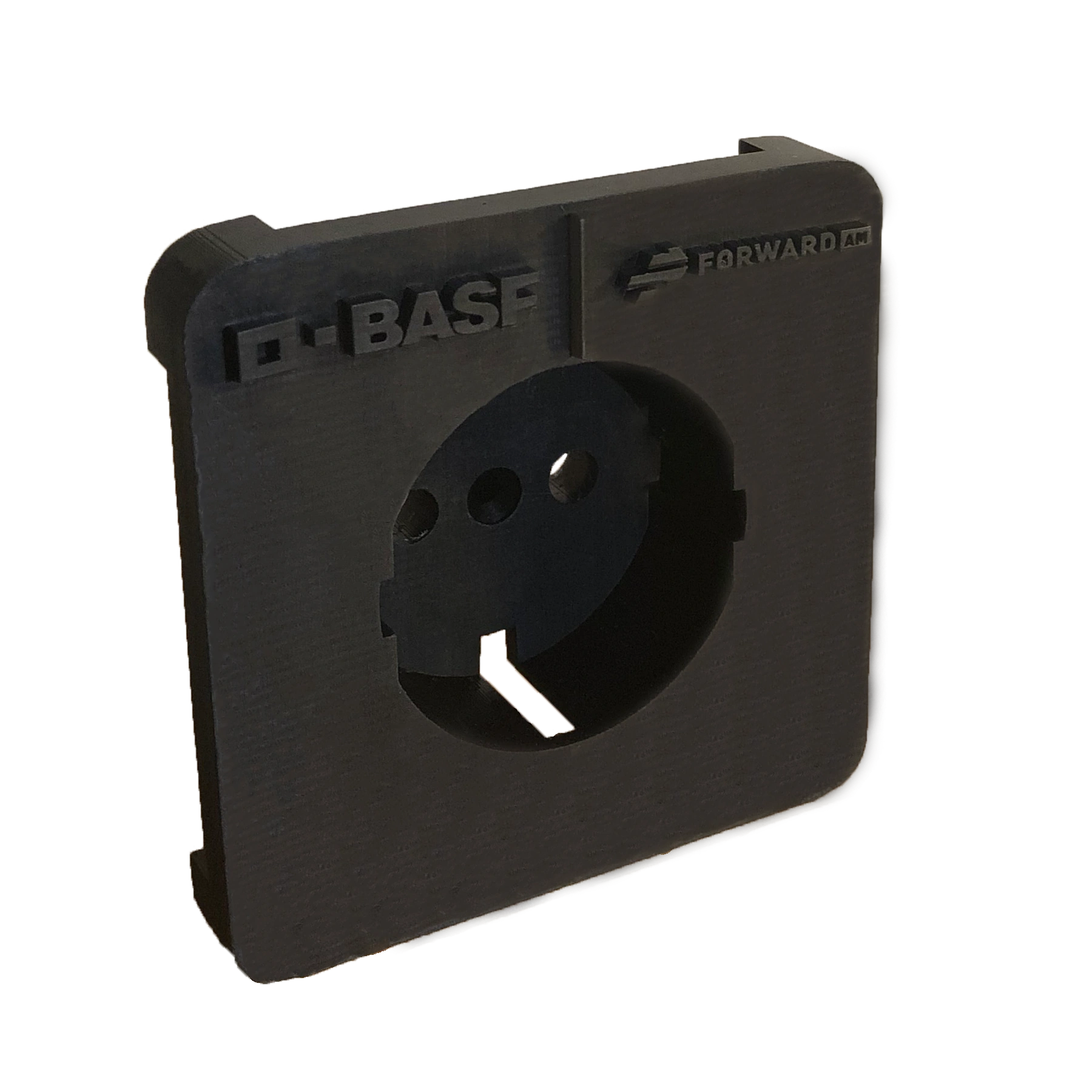

• Electrical castings

Material Properties

• Young’s modulus: 2600 MPa
• Tensile strength: 62 MPa
• Heat deflection temperature: 87 C
• Hardness: 83 D

Material Details

• Technical Data Sheet
• User Guidelines

Material Test Data

• Biocompatibility
• Chemical test: RG 35
• Steam sterilization: RG 35
• Sterilization overview: RG 35
• UV stability: RG 35
