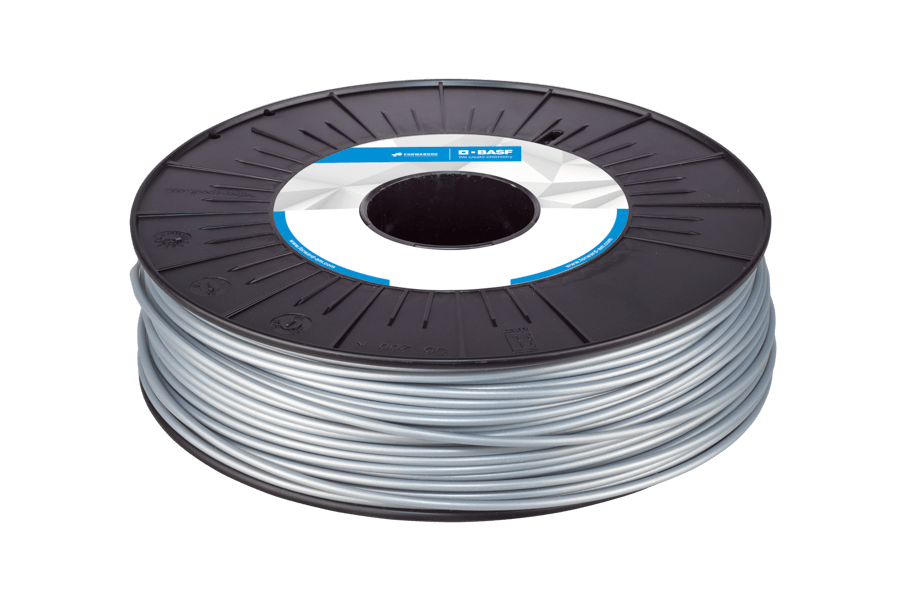

BASF – Ultrafuse ABS Filament – Silver

Ultrafuse? ABS

ABS is the second most used 3D printing material

Strong. flexible and has a high heat resistance. ABS is a preferred plastic for engineers and professional applications. ABS can be smoothened with acetone. To make a proper 3D print with ABS you will need a heated print bed. The filament is available in 9 colors.

Benefits at a Glance

• Long life span
• Very tough
• High wear and tear
• Can be used for working parts
• Chemical resistance

Example Applications

• Functional prototypes
• Chemical environment
• Reasonable heat resistance

Material Properties

• Tensile Strength (MPa): 21.3 (ZX). 36.3 (XY)
• Flexural Modulus (MPa): 1587 (ZX). 1767 (XZ). 1833 (XY)
• Elongation at Break: 1.8 % (ZX). 7.4 % (XY)
• Impact Strength Izod notched (kJ/m2): 3.5 (ZX). 18.9 (XZ). 18.8 (XY)
• Impact Strength Izod unnotched (kJ/m2): 7.2 (ZX). 35.7 (XZ). 40.0 (XY)
• HDT @ 0.45 MPa: 96 oC

Printing Guidelines

• Nozzle Temperature: 240-260 C
• Build Chamber Temperature: –
• Bed Temperature: 90 – 110 C
• Bed Material: Tape. Spray. Glue
• Nozzle Diameter: 0.4 mm
• Print Speed: 40-80 mm / s

Printing Profiles

• Ultimaker
• Raised 3D
• Prusa
• BCN3D

Material Details

• Techincal Data Sheet
• Saftey Data Sheet
