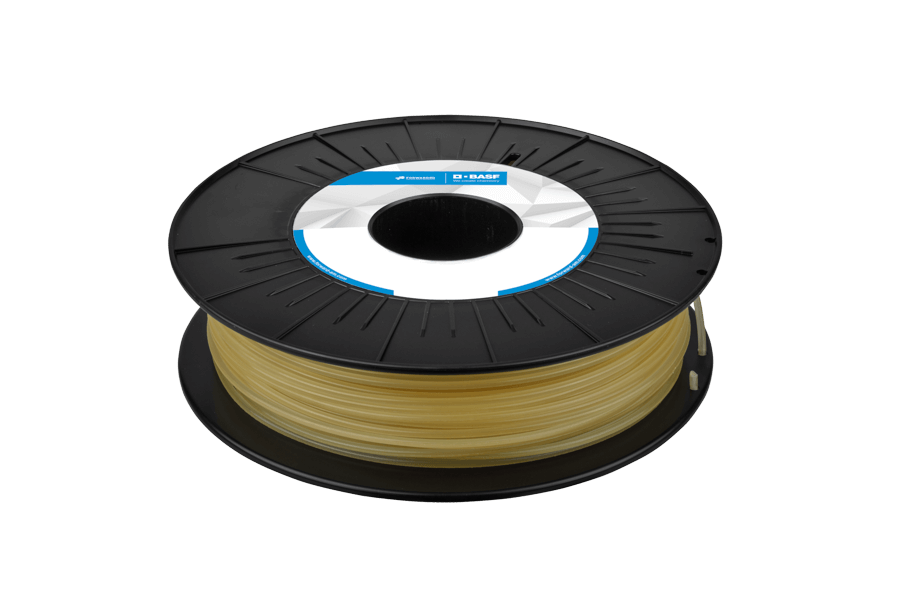

BASF – Ultrafuse BVOH – Natural

Ultrafuse? BVOH

Print complex designs

Support material Ultrafuse? BVOH offers great compatibility to a variety of materials.

Printing complex designs may only be possible with temporary support structures. Ultrafuse? BVOH water-soluble support filament has been designed to easily dissolve in water. The solubility is increasing with higher water temperature. It offers great compatibility to a variety of materials: PLA. PRO1. ABS. ABS Fusion+. PA and PAHT CF15. Store this monofilament in a sealed bag or container to prevent moisture uptake.

Benefits at a Glance

• Water soluble
• Dissolves 2 times faster than other PVA
• Support compatible with multiple materials. such as Ultrafuse PLA. ABS Fusion+. TPUs. PET. PA. PAHT CF15

Example Applications

• Parts with overhang
• Complex parts
• Hollow parts

Material Properties

• Tensile Strength (MPa): 8.7 (ZX). 33.7 (XY)
• Tensile Strength (MPa): 8.7 (ZX). 33.7 (XY)
• Elongation at Break: 0.8 % (ZX). 14.8 % (XY)
• Melting Temperature: 175 C

Printing Guidelines

• Nozzle Temperature: 190-210 C
• Build Chamber Temperature: –
• Bed Temperature: 60 – 100 C
• Bed Material: Glass
• Nozzle Diameter: 0.4 mm
• Print Speed: 30 – 60 mm / s

Printing Profiles

• Ultimaker

• Download via BCN3D website
• Download via Raise 3D website

Material Details

• Techincal Data Sheet
• Safety Data Sheet
• Material Compatibility
