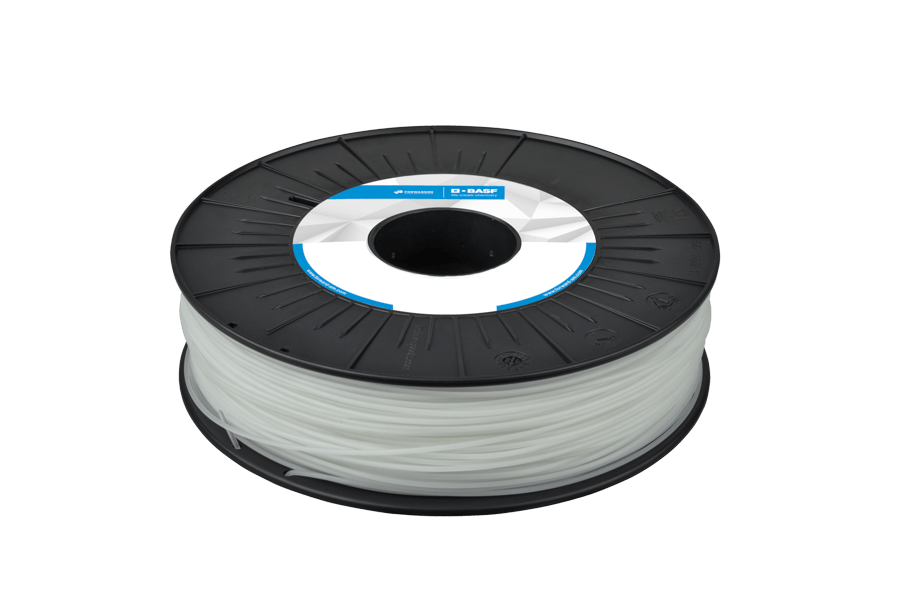

BASF – Ultrafuse PA – Natural

Ultrafuse? PA

First BASF Filament Development Based on Ultramid?

The key features of Ultrafuse PA are the high strength and high modulus. Furthermore. Ultrafuse PA shows a good thermal distortion stability.

The key features of Ultrafuse PA are the high strength and high modulus. Furthermore. Ultrafuse PA shows a good thermal distortion stability.

Benefits at a Glance

• Good fatigue resistance
• High mechanical strength
• Low melting point makes it printable for many FFF printers
• Good wear resistance/ lubricity
• Good impact resistance at low temperatures

Example Applications

• Most engineering sectors
• Suitable for a wide range of different components and machine elements. such as high-grade electrical insulation material

Material Properties

• Tensile Strength (MPa): 16.4 (ZX). 61.4 (XY)
• Flexural Modulus (MPa): 2149 (ZX). 2246 (XZ). 2051 (XY)
• Elongation at Break: 0.8 % (ZX). 9.6 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.7 (ZX). 3.9 (XZ). 5.8 (XY)
• Impact Strength Izod unnotched (kJ/m2): 3.2 (ZX). 45.6 (XZ). 28.0 (XY)
• HDT @ 0.45 MPa: 135 oC

Printing Guidelines

• Nozzle Temperature: 220-250 C
• Build Chamber Temperature: –
• Bed Temperature: 90 – 120 C
• Bed Material: Glass + PVA / Kapton tape / PA adhesive
• Nozzle Diameter: 0.4 mm
• Print Speed: 30 -60 mm / s

Printing Profiles

• Ultimaker
• Prusa

• Download via BCN3D website
• Download via Raise 3D website

Material Details

• Product Leaftlet
• Techincal Data Sheet
• Safety Data Sheet
