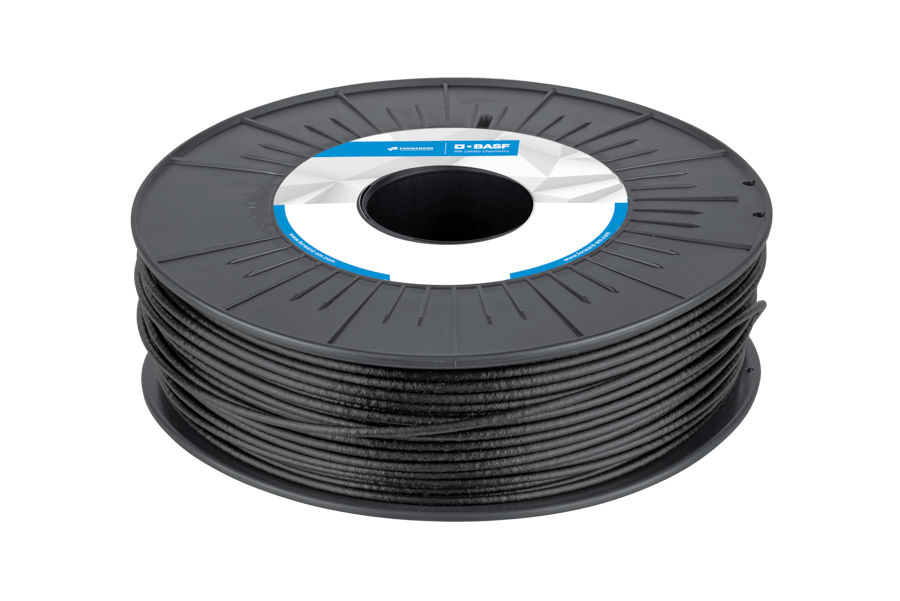

BASF – Ultrafuse PA6 GF30 – Black

Ultrafuse? PA6 GF30

A unique compound

Ultrafuse? GF30-PA6 filament for 3D printing is a reinforced material designed to be compatible with any standard Fused Filament Fabrication 3D printer.

Ultrafuse? PA6 GF30 is a unique compound specifically developed for FFF printing. Due to the glass fiber content of 30%. parts tend to warp less. In addition the excellent layer adhesion and its compatibility with the water soluble support Ultrafuse? BVOH make this material the perfect solution to develop industrial applications on an FFF printer.

With its high wear and chemical resistance. high stiffness and strength. Ultrafuse? PA6 GF30 is perfect for a wide variety of applications in automotive. electronics or transportation.

Ultrafuse PA6 GF30 is designed for functional prototyping and demanding applications such as industrial tooling. transportation. electronics. small appliances. sports & leisure

Benefits at a Glance

• Very high stiffness and strength
• Good chemical resistance
• Resistance to UV light exposure
• High wear resistance
• Excellent layer adhesion
• Works with Ultrafuse? BVOH

Example Applications

• Automotive / transportation
• Industrial tooling
• Functional prototyping

Material Properties

• Tensile Strength (MPa): 78.3 / 46.4 (XY). 14.9 / 12.2 (ZX)
• Flexural Modulus (MPa): 4694 / 2861 (XY). 8103 / 4300 (XZ). 2371 / 1070 (ZX)
• Elongation at Break: 2.2 / 3.2 % (XY). 0.8 / 1.9 % (ZX)
• Impact Strength Charpy unnotched (kJ/m2): 38.9 / 41.8 (XY) . 45.5 / 48.8 (XZ) . 2.2 / 3.1 (ZX)
• Impact Strength Izod unnotched (kJ/m2): 38.4 / 36.9 (XY) . 38.7 / 41.4 (XZ) . 2.6 / 3.8 (ZX)
• HDT @ 0.45 MPa: 110 / 114 oC

Printing Guidelines

• Nozzle Temperature: 240 – 280 C
• Build Chamber Temperature: –
• Bed Temperature: passively heated. closed chamber
• Bed Material: Glass
• Nozzle Diameter: 0.6 mm
• Print Speed: 30-60 mm / s

Printing Profiles

• BCN3D
• Raise3D
• Prusa
• Download via Ultimaker Website

Meterial Details

• Product Leaflet
• Technical Data Sheet
• Safety Data Sheet
