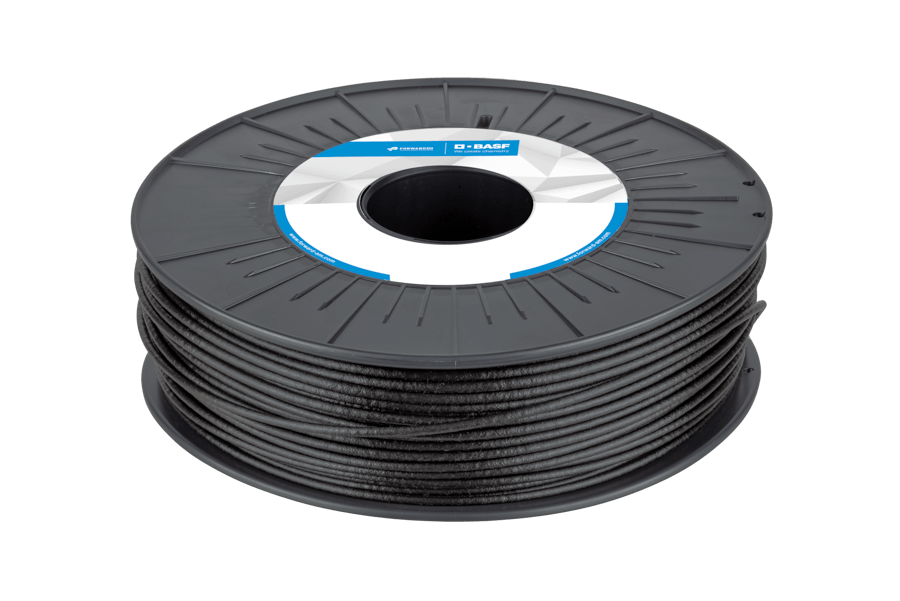

BASF – Ultrafuse PP GF30 – Black

Ultrafuse? PP GF30

Printing with a High Level of Reinforcement

PP is one of the most preferred thermoplastics in different industries. especially in the automotive sector. However. a high level of reinforcement was always a problem in filament making. until now.

Ultrafuse? PP GF30 contains 30% glass fibers that are specifically designed for 3D printing filaments making Ultrafuse? PP GF30 compatible with any conventional FFF printer.

PP has a lower moisture uptake than PA which makes Ultrafuse PP GF30 fully printable without need for drying. In combination with its high level of glass fiber reinforcement and its ex- cellent chemical resistance. Ultrafuse? PP GF30 is the preferred filament for exceptional harsh environments. Thanks to its UV resistance it is more suitable than any other PP-based filament for applications directly exposed to sunlight.

Benefits at a Glance

• Excellent chemical resistance
• Low density
• Low moisture uptake
• High heat resistance
• Improved UV resistance

Example Applications

• Automotive / transportation
• Functional prototyping
• Jigs and fixtures

Material Properties

• Tensile Strength (MPa): 41.7 (XY); 15.9 (ZX)
• Flexural Modulus (MPa): 3507 (XY); 4026 (XZ); 1671 (ZX)
• Elongation at Break: 4.4 % (XY); 0.8 % (ZX)
• Impact Strength Charpy unnotched (kJ/m2): 23.1 (XY); 25.8 (XZ); 2.5 (ZX)
• Impact Strength Izod unnotched (kJ/m2): 20.5 (XY) . 2.4 (XZ); 2.6 (ZX)
• HDT at 0.45 MPa: 127 oC

Printing Guidelines

• Nozzle Temperature: 240-260 C
• Build Chamber Temperature: –
• Bed Temperature: 20 – 40 C
• Bed Material: PP strapping tape. PP GF adhesive
• Nozzle Diameter: 0.6 mm
• Print Speed: 30 – 80 mm / s

Printing Profiles

• Prusa

• Download via the Ultimaker website
• Download via the BCN3D website
• Download via the Raise 3D website

Meterial Details

• Product Leaflet
• Technical Data Sheet
• Safety Data Sheet
