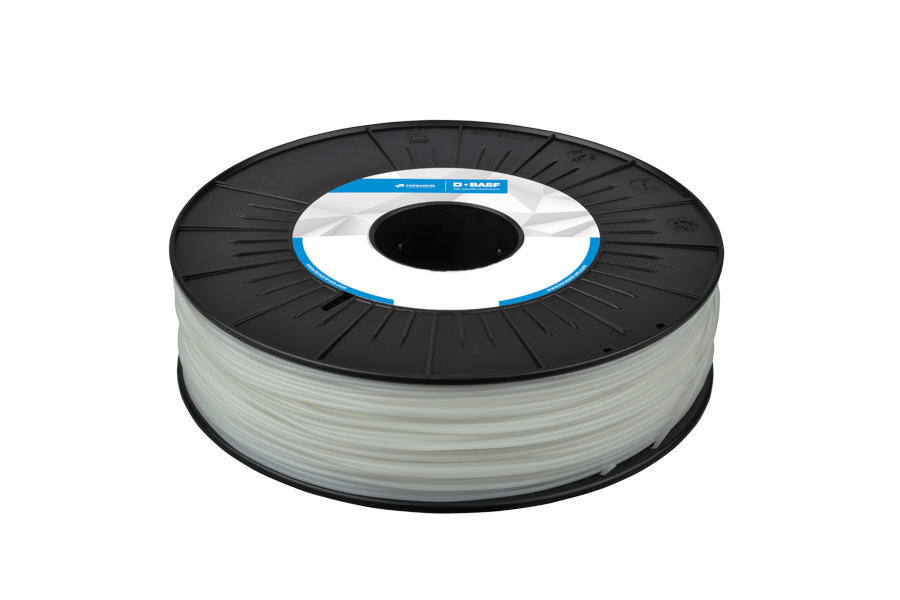

BASF – Ultrafuse TPU 85A – Natural White

Ultrafuse? TPU 85A

First Flexible BASF Filament Based on Elastollan?

Ultrafuse? TPU 85A was specially developed for FFF printing and is an advanced filament based on BASF ?s Elastollan? materials. Elastollan? is the brand name for thermoplastic polyurethane (TPU) by BASF. It stands for maximum reliability. consistent product quality. and cost efficiency.

Ultrafuse? TPU 85A offers a broad range of degrees of hardness with different designs. making this filament an ideal material in applications where specific degrees of flexibility are critical.

Ultrafuse? TPU 85A comes in its natural white color. Chemical properties (e.g. resistance against particular substances) and tolerance for solvents can be made available. if these factors are relevant for a specific application. Generally. these properties correspond to publicly available data on polyether based TPUs. This material is not FDA conform. Good flexibility at low temperature. good wear performance and good damping behavior are the key features of Ultrafuse? TPU 85A.

Benefits at a Glance

• High wear and abrasion resistance
• Very good low-temperature flexibility
• High tensile strength and outstanding resistance to tear propagation
• Excellent damping characteristics
• High resistance to oils. greases. oxygen and ozone
• Biocompatible

Example Applications

• Functional flexible parts Footwear. sports and leisure
• Automotive. industrial manufacturing. agriculture. and construction

Material Properties

• Shore A Hardness: 85
• Abrasion resistance: 82mm3
• Compression set at 23 C. 72 h: 26%
• Stress at break: 34 MPa (XY). 10 MPa (ZX)
• Elongation at Break. Strain at Break: 600% (XY). 320 % (ZX)
• Tear strength: 80 kN/m (XY). 18 kN/m (XZ). 30 kN/m (ZX)

Printing Guidelines

• Nozzle Temperature: 200-220 C
• Build Chamber Temperature: –
• Bed Temperature: 40 C
• Bed Material: Glass
• Nozzle Diameter: 0.4 mm
• Print Speed: 15-40 mm / s

Printing Profiles

• BCN3D
• Prusa
• Bambu Lab

• Download via the Raise3D website

Material Details

• Product Leaflet
• Techincal Data Sheet
• Safefty Data Sheet
