Bondtech CHT? Coated Brass Nozzle 5 pack

Bondtech CHT? nozzles use patented core heating technology to increase melt capacity. allowing you to print more material faster. With Bondtech CHT? nozzles you can get at least 30% more flow with the same hotend. If you want to learn more about Bondtech CHT? high flow nozzles. keep reading or check out Bondtech’s whitepaper. Increasing Melt Capacity With 3 Nozzle Features.

• Higher melt capacity by increasing the surface area of the heating walls
• Affordable price
• Machined with ultra-precision
• Brass nozzle with Nickel coated surface
• Follows nozzle standards: RepRap (M6 1 7.5 12.5)
• May be used with 1.75 or 2.85mm hotends

• Mosquito? / Magnum
• Mosquito? Liquid
• Mosquito? Magnum+
• Copperhead?
• E3D V4. V5 and V6 blocks
• E3D Chimera and Kraken
• RepRap M6

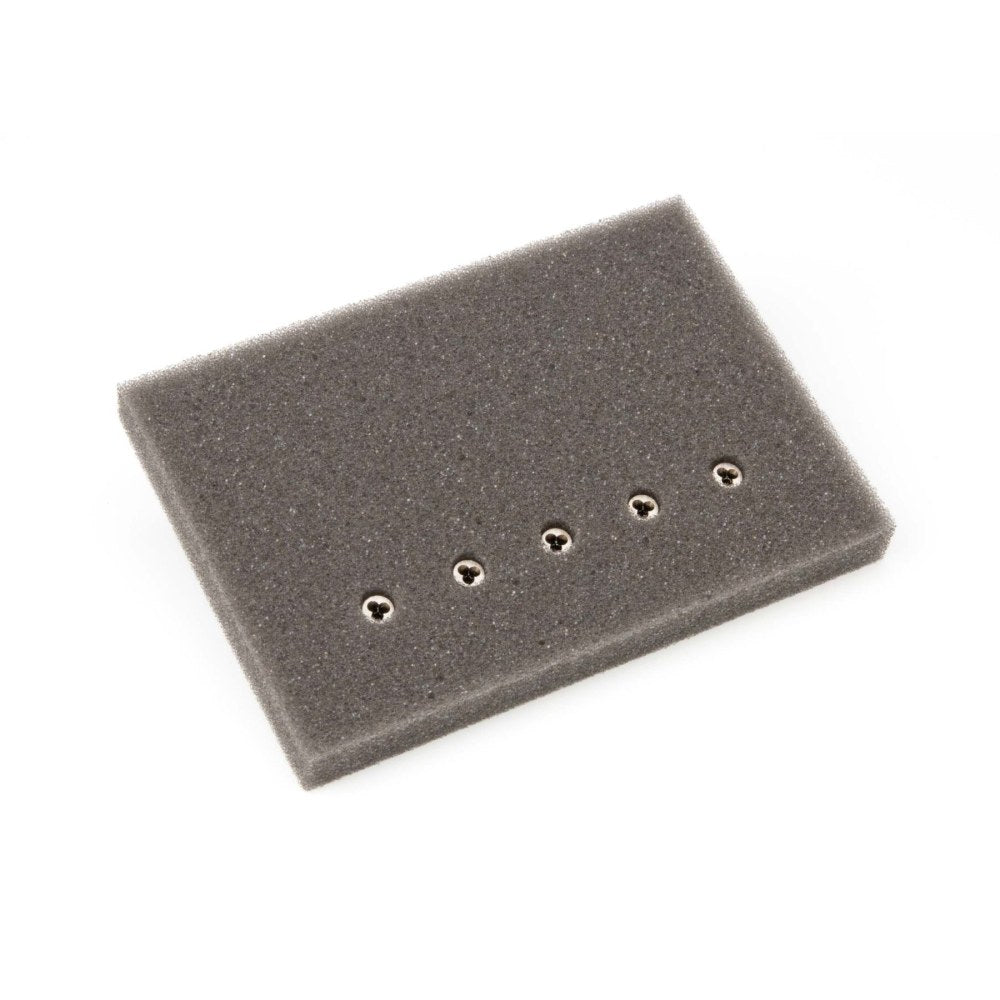

Bondtech CHT? nozzles split the filament into 3 thinner strands allowing to melt the material from within. In doing so. the material melts faster and higher flow rates can be used.

Registration number: EP3445568A1
Nozzles for 3D printers made of metal with at least one or a multitude of holes to increase the surface area of the heating walls.

A Nickel coating is applied to Bondtech’s Coated Brass nozzles to provide protection against corrosion. erosion. and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction. which allows slicker feeding of material and delays plastic adhesion to the nozzle’s surface.

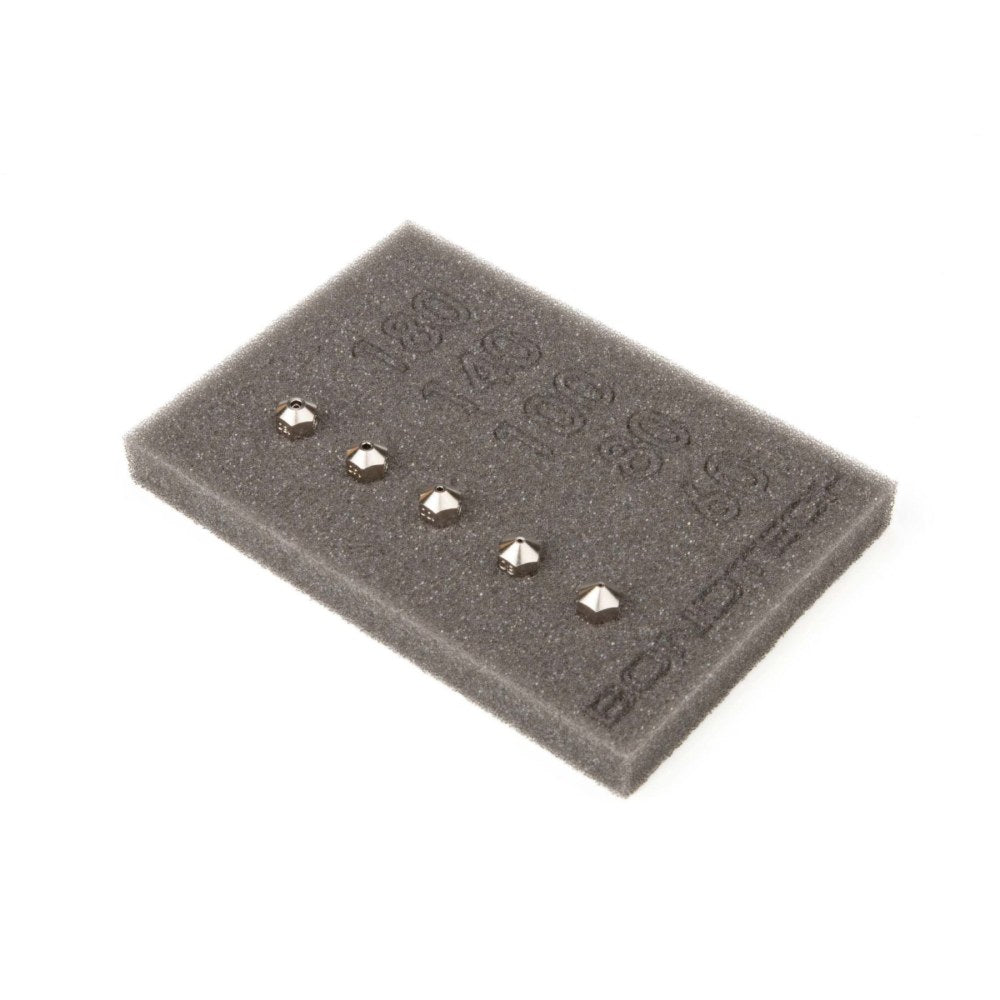

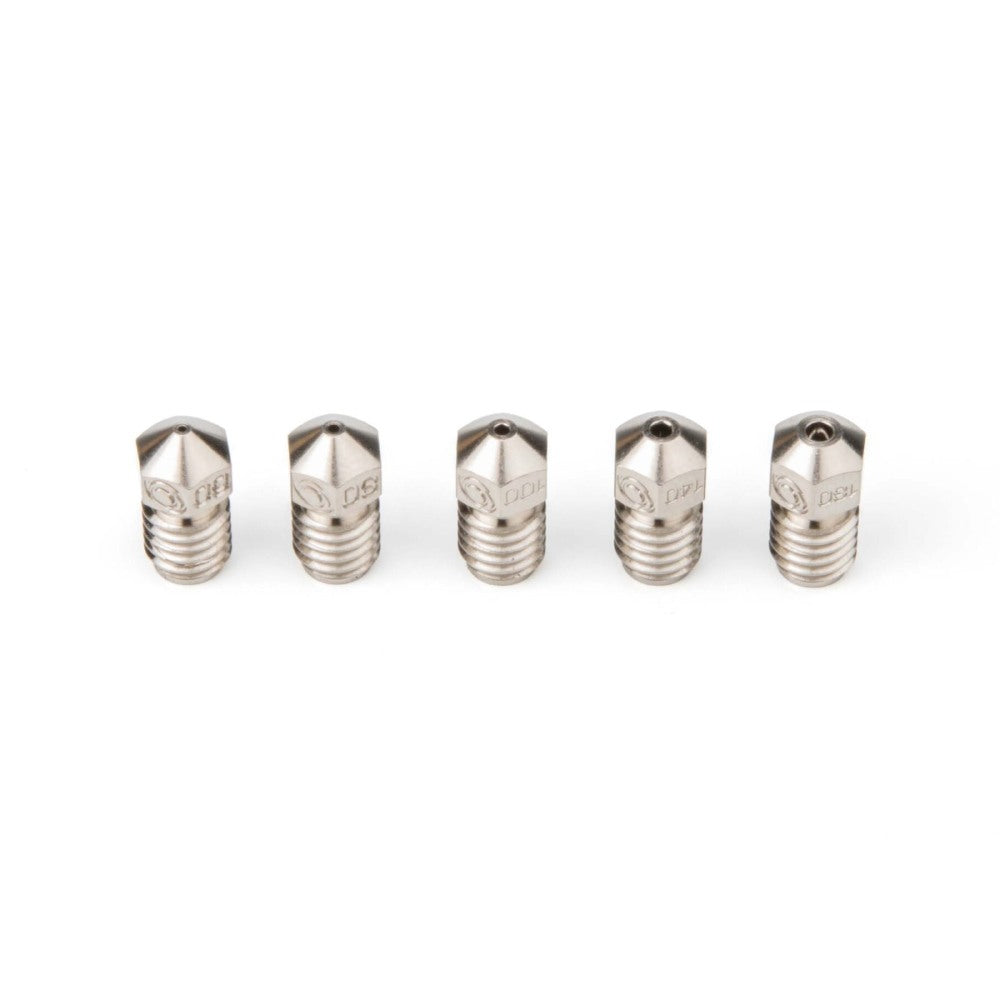

• 5 Bondtech CHT? Coated Brass Nozzles
  • 1x 0.6mm nozzle
  • 1x 0.8mm nozzle
  • 1x 1.0mm nozzle
  • 1x 1.4mm nozzle
  • 1x 1.8mm nozzle

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle. These deposits will cause blockages.
We recommend changing nozzles when changing materials.
