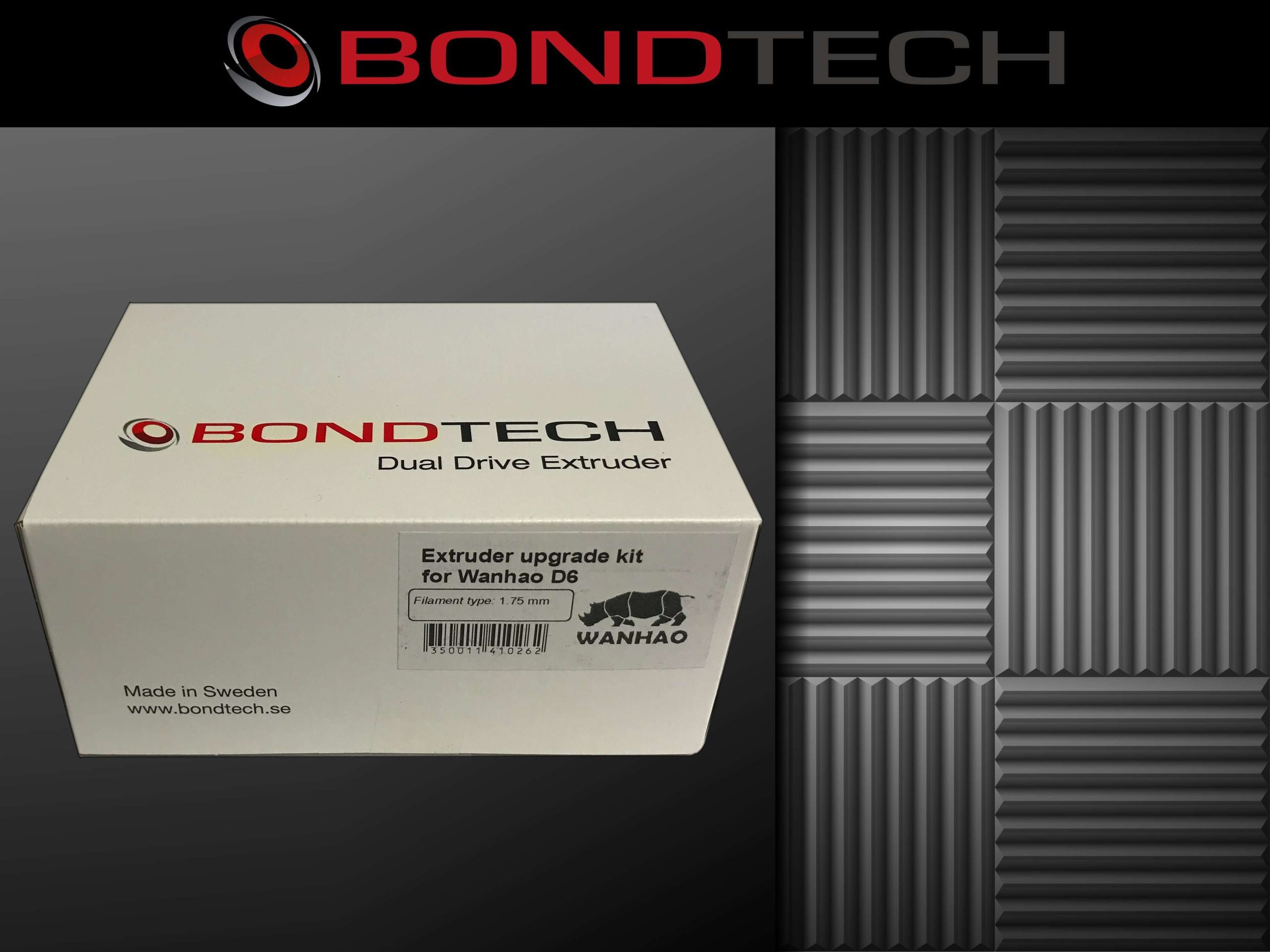

Bondtech extruder kit for Wanhao duplicator 6

This extruder upgrade kit will solve your feeding and grinding problems and will also give you higher resolution that will improve surface quality. It will also allow to print faster with sustained quality and no risk for grinding the filament.

It features our new lightweight BMG extruder with internal 3:1 gearing ratio combined with our DualDrive precision cnc-machined hardened steel gears for maximum performance an for a long lifetime.

This kit includes the following parts:

– 1x BMG Extruder
– 1x CNC machined Aluminium mounting bracket
– 1x Board holder (fdm-printed in ABS)
– 1x Adapter piece with internal PTFE guide tube
– 2x M3x5 screws (to mount the board holder)

E-steps needs to be updated to 415

This kit contains no motor. the original motor is used.

The movemement in Y-direction will be lowered to 190 mm
