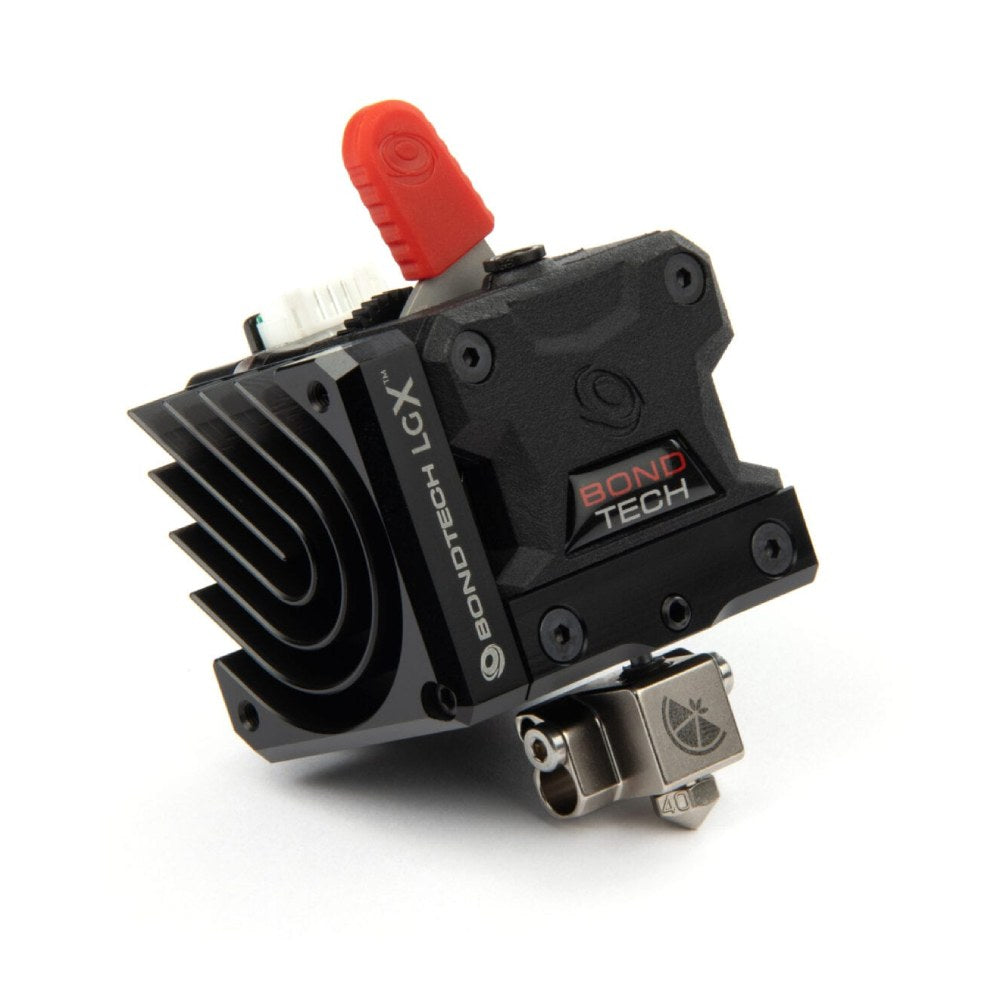

Bondtech LGX Shortcut Copperhead Printhead

The LGX Shortcut Copperhead is a special printhead designed to be used with. and includes the Bondtech LGX Large Gears eXtruder.

The Bondtech LGX Shortcut Copperhead’s main feature is a 27mm shorter filament path than the standard screw mount Slice Engineering Copperhead? Hotend.

Pairing the LGX Shortcut Copperhead with the LGX eXtruder forms a printhead that will excel in printing ALL of the most common materials – especially soft and flexible 3D printer filaments.

Looking for the Bondtech LGX Shortcut Copperhead Hotend?

The LGX Shortcut Copperhead Printhead only supports 1.75mm filament.
No heater or thermistors are included.

• Gives access to softer materials
• Enables you to print flexible and soft materials faster
• Keeps the print-head small and light
• Allows mounting in many different ways

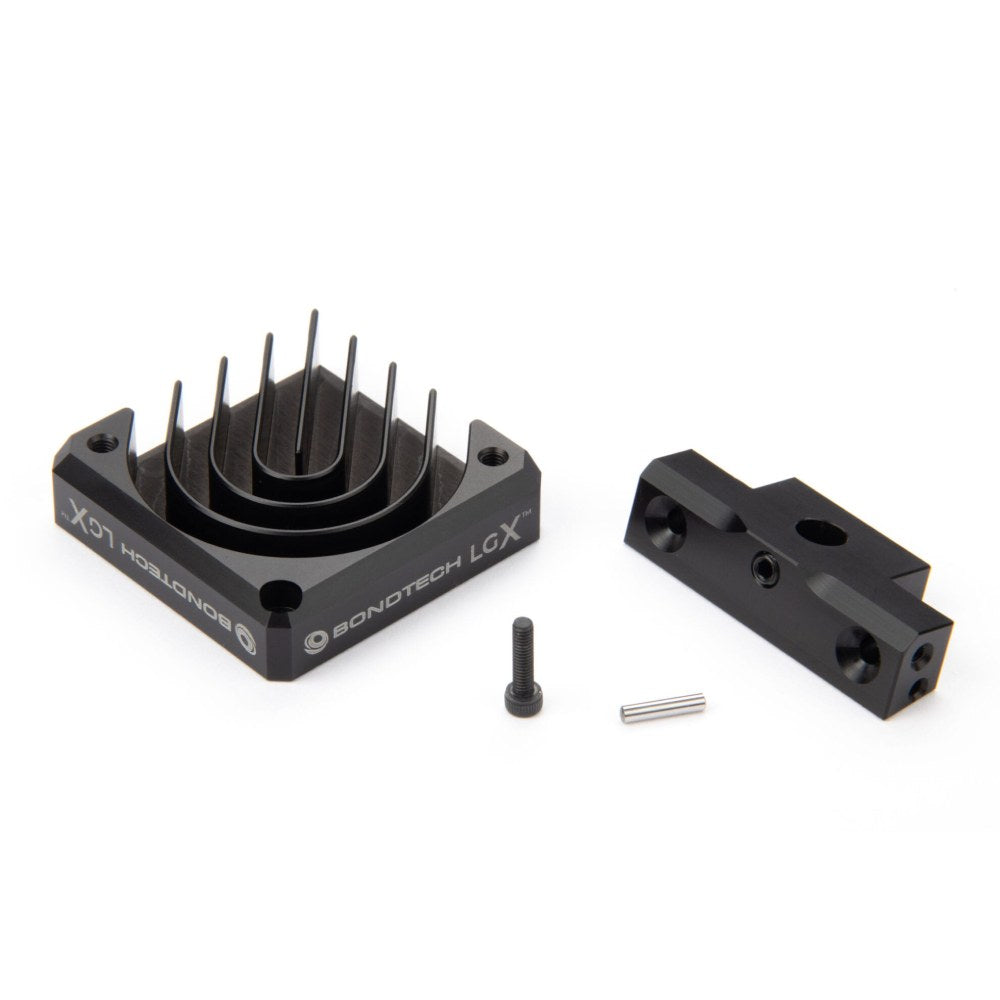

The LGX Shortcut Copperhead Printhead includes a reversible heat sink that can be installed on the left or right hand side of the cold block. The heat sink also includes the hole pattern for attaching 40 40 fans.

Bondtech’s tests suggest a 4010 fan is enough to cool down the cold block and the cold zone of the heat break. even with such small contact surface to the heat sink. In case you have an application where additional cooling is required. try using a 4020 fan or 2 LGX heat sinks. one on each side.

• 1x LGX Lager Gears eXtruder
• 1x LGX Black Anodized Aluminum Heat Sink
• 1x LGX Black Anodized Aluminum Air Cooled Cold Block
• 1x LGX Air-cooled Cold Block Mounting Hardware

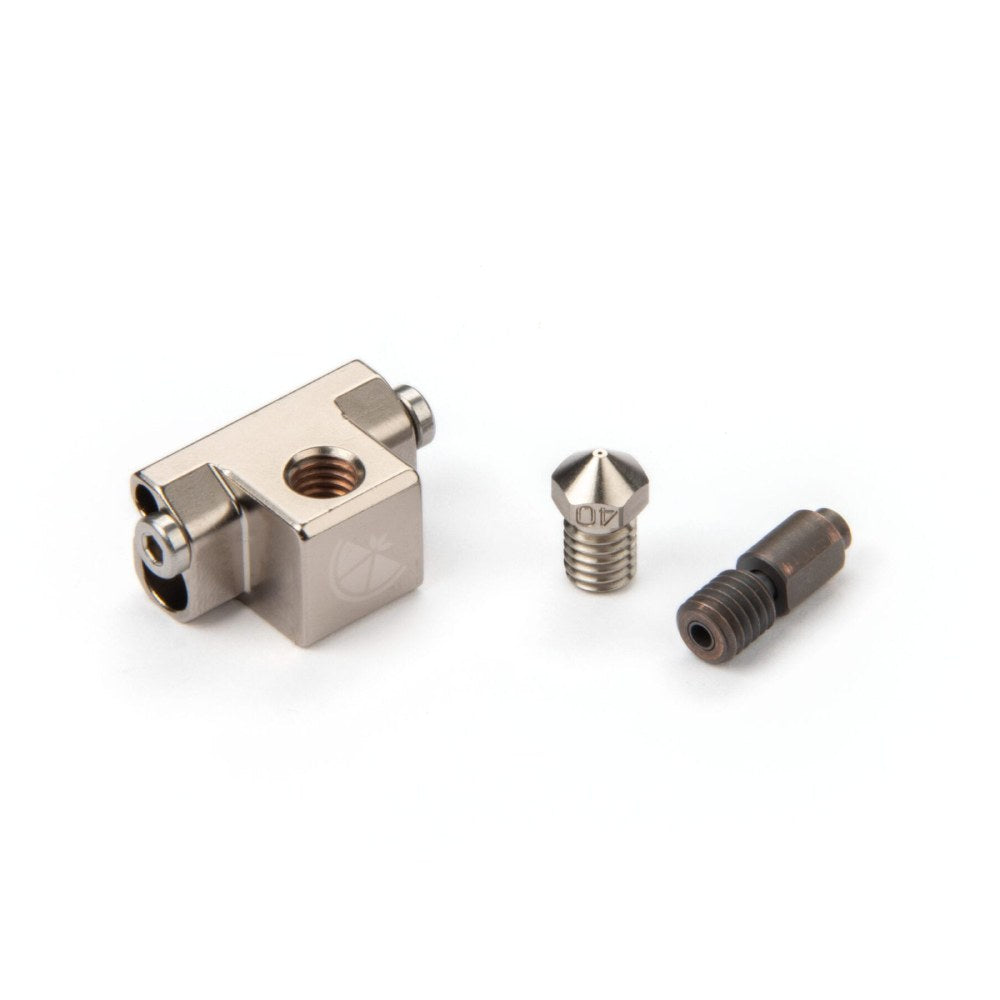

• 1x Copperhead LGX Heat Break
• 1x Copperhead Hot Block
• 1x Bondtech M6x1x7.5 Coated Brass Nozzle 0.4mm
• 1x Silver Based Thermal Paste Sachet 0.5g

The Bondtech LGX Shortcut Copperhead Printhead is not compatible with the following items:

• 3DSolex Matchless 1.75mm nozzles

The hot block included in this product is compatible with the RepRap standard of nozzles. Below is a list of compatible versions.

• Bondtech Standard Brass
• Bondtech Standard Coated Brass
• Bondtech CHT Coated Brass
• Slice Engineering Vanadium? Nozzle
• Slice Engineering Bridgemaster Nozzle

• Cold Block/Heat Sink Material: Anodized Aluminum
• Copperhead Hot Block Materials: Steel tube; Copper body; Nickel plating
• Max operating (nozzle) temperature: 450 C
• Max tightening torque on the extruder screws: 0.3 Nm
• Max tightening torque on the heatsink/cold block screw: 0.6 Nm
• Net weight: 55.5 g
• Package measurements: 80x103x73 mm
• Package weight: 96 g

• e-steps value: 400 using 16 microsteps; 800 using 32 microsteps
• Drive wheels: Hardened steel
• Materials compatibility: abrasive; rigid; semi-flexible; flexible; and soft
• Mounting holes: M3
• Mounting patterns: bottom anterior (2 points); left (2 points). right (2 points). front (4 points). back (4 points)
• Holes on the sides of the LGX?: 5 mm depth
• Holes on the bottom of the LGX?: 12 mm depth
• Max tightening torque on the extruder screws: 0.3 Nm

Click here for more information on the Bondtech LGX Large Gears eXtruder.
