Creality Raptor 3D Scanner, Hybrid Blue Laser NIR, 60fps Scanning Speed, Objects Between 5-2000mm, 24-bit Full-Color Scan, 0.02mm Accuracy, Anti-shaking

Highlights

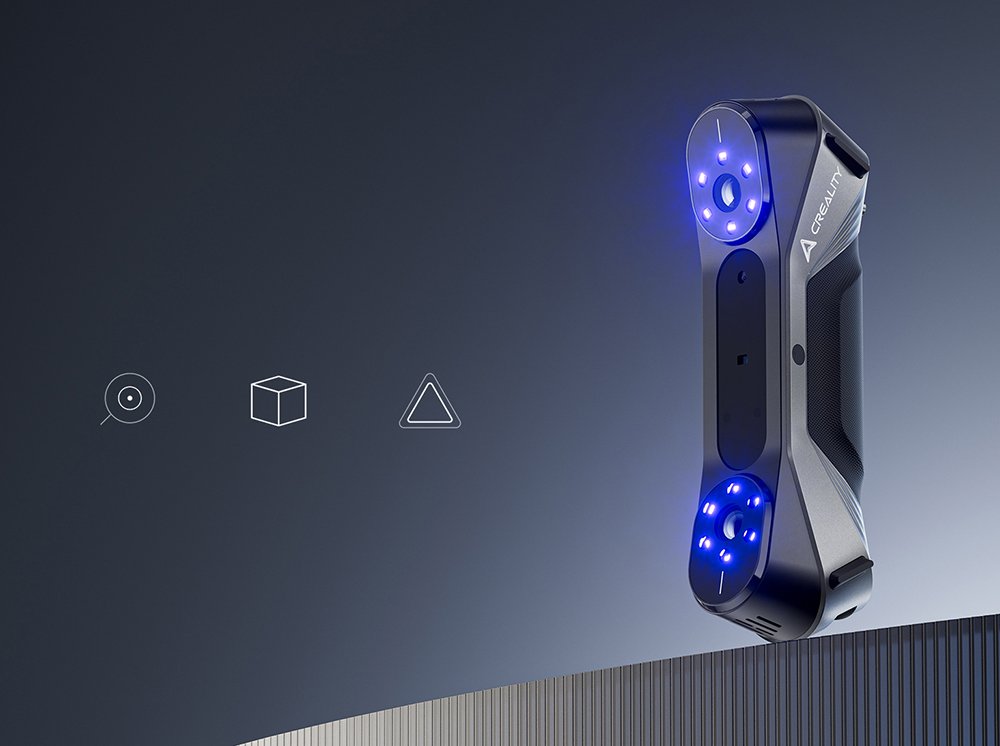

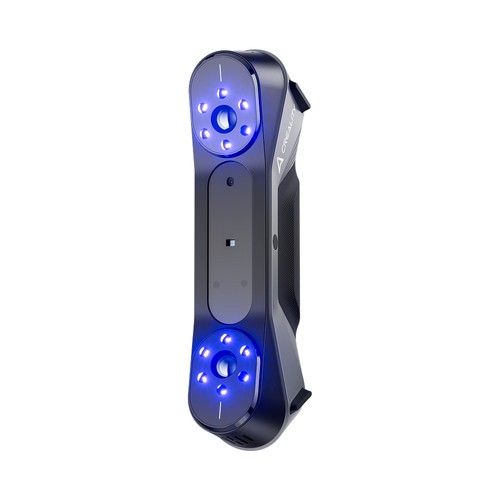

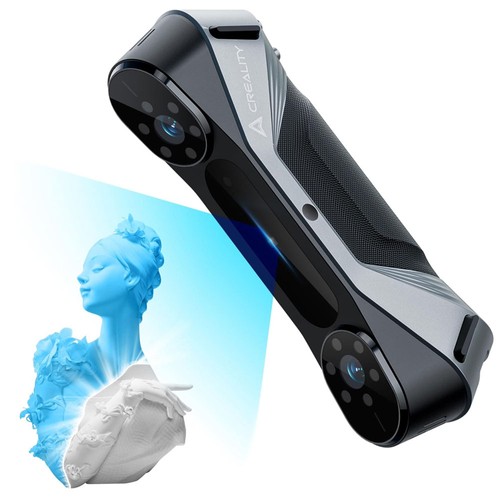

Creality CR-Scan Raptor – Blue Laser + Nir for Small, Medium and Large Objects

The Creality CR-Scan Raptor is a groundbreaking 3D scanner that integrates blue light laser and NIR – into one device! With unprecedented precision, the 3D scanner captures small, medium, and large objects, thus meeting a wide range of requirements.

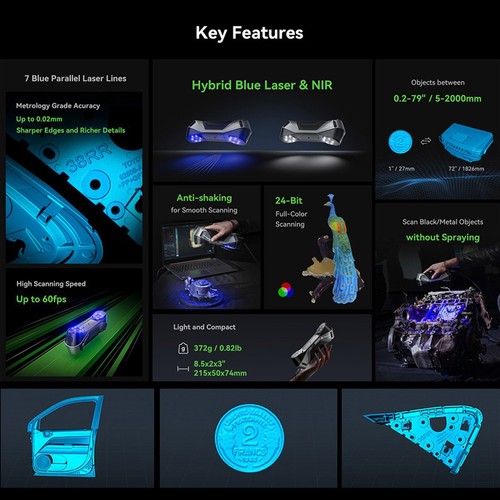

• Combines blue light laser & NIR, scanning of small, medium, and large objects.
• ?7 parallel blue laser lines for fine scanning details, up to 0.1mm to obtain sharper and clear edges
• ?High-speed Scanning: ?Blue Light Scanning Speed up to 60fps;?NIR Scanning Speed up to 20fps
• ?Infrared Structured Light Scanning, No Marker Required
• ?Equipped with a unique face mapping algorithm?that captures more details, a human body scan only needs as quick as 2 minutes.
• ?System requirement: Windows 10/11 (64 bit): i7-Gen7, Nvidia graphics card (6GB video memory), 16GB memory or higher?macOS: 11.7.7 and above, Apple M1/M2/M3 series processors; RAM: 16GB or higher

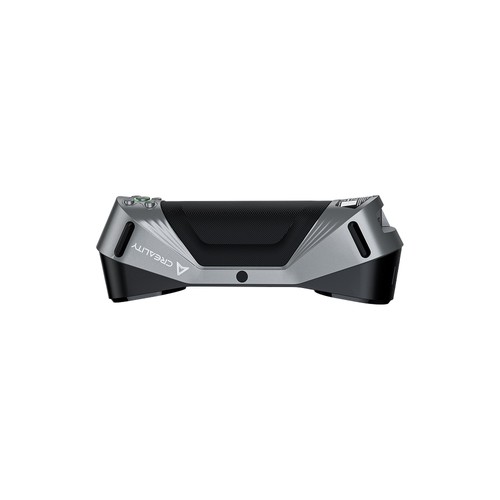

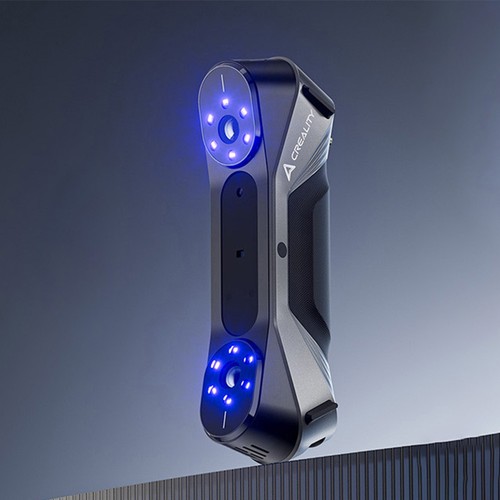

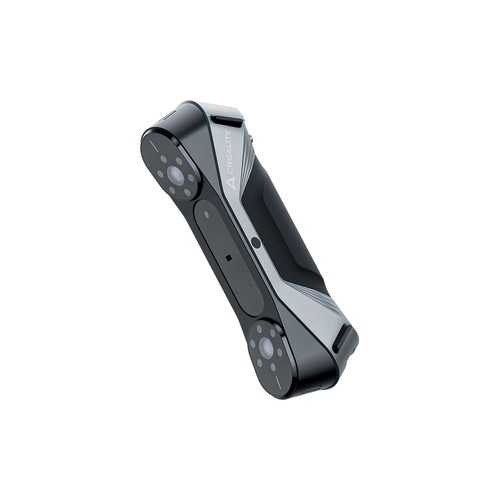

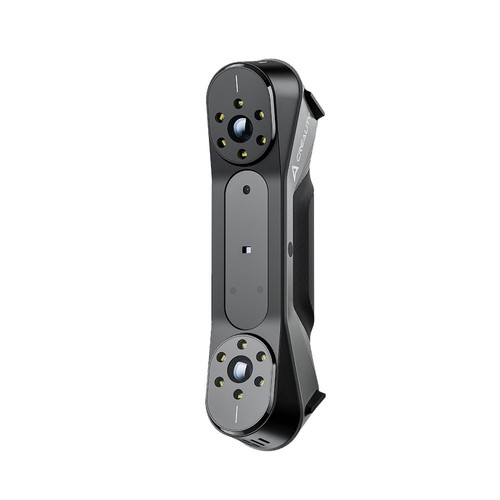

Compact size for more flexibility

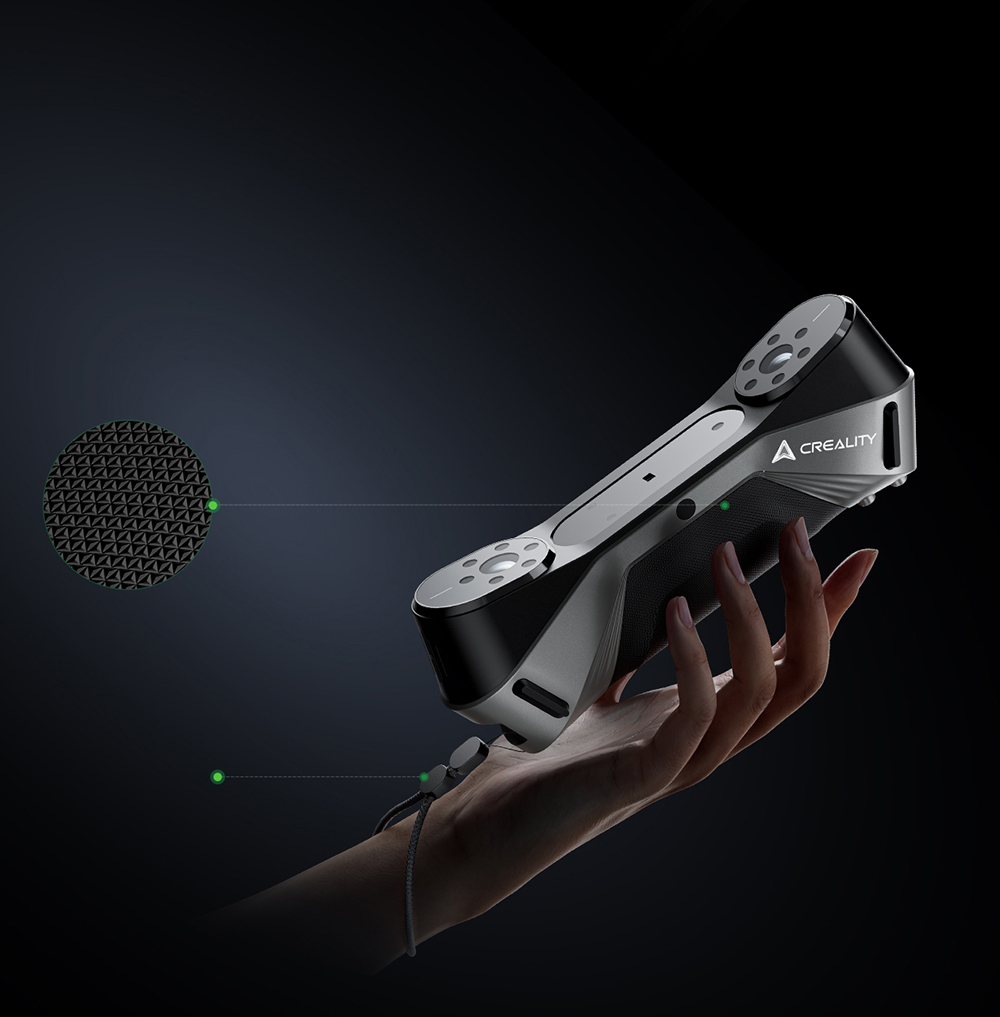

The portable 3D scanner has a low weight of 372 g. It can be operated with one hand and ensures fatigue-free work even during longer scanning projects. The Raptor is equipped with an anti-slip surface and a removable neck cord for flexible operation with greater safety.

Large, medium, or small?

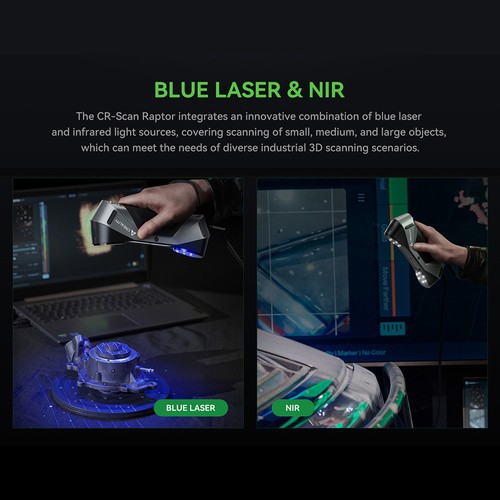

Combining blue line lasers with structured infrared light enables the detection of objects of all sizes! The CR-Scan Raptor detects objects in the scanning range from 5 x 5 x 5 mm; up to 2000 x 2000 x 2000 mm; with remarkable ease, including small figures, bolts, faces, human bodies, car parts and much, much more.

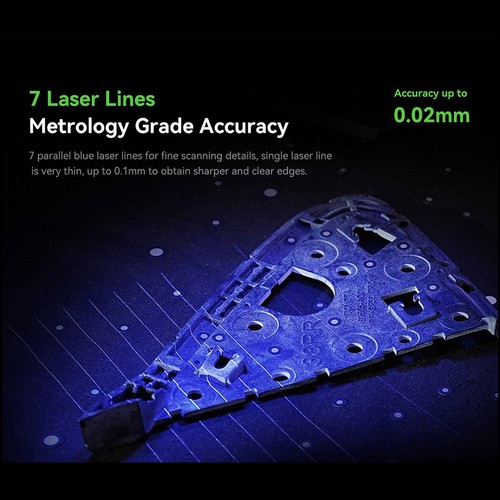

Measurement accuracy with blue light laser lines

The powerful CR-Scan Raptor scans with 7 parallel blue light laser lines. To ensure that sharp and clear edges and precise details can be captured, each laser line is kept ultra-thin (up to 0.1 mm). This ensures outstanding metrological accuracy of up to 0.02 mm.

Of course, other factors also contribute to its incredible accuracy:

• An advanced temperature compensation algorithm improves temperature stability, ensuring its top accuracy.

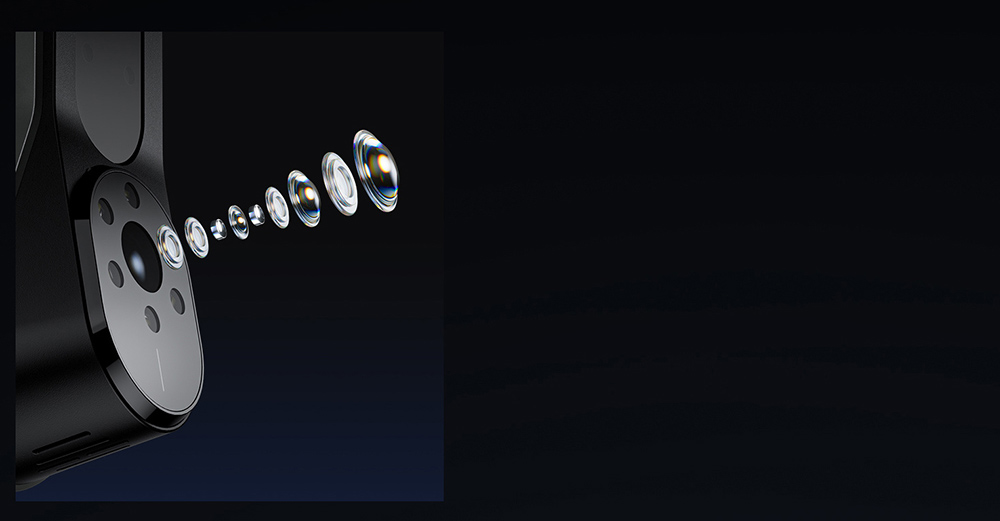

• A high-performance structure enables 3D scanning both from close up and from a distance and provides high stability at high and low temperatures. This is achieved by a 20 mm lens with a large depth of field, a low distortion lens (with distortion < 5 ), a glass lens with 9 lenses, and a metal lens barrel and mount.

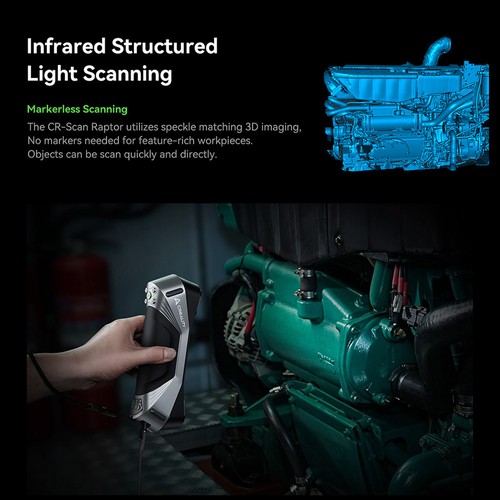

Structured infrared light for scans without markers or scan sprays

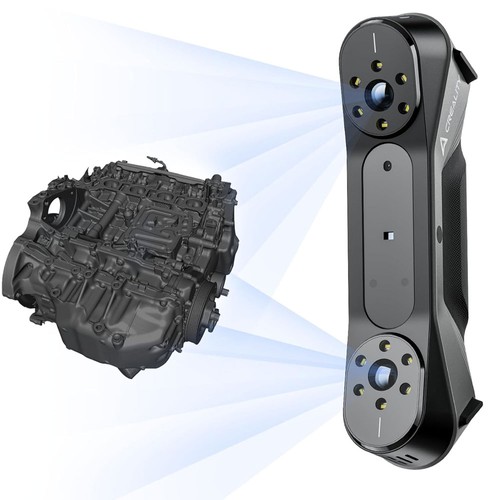

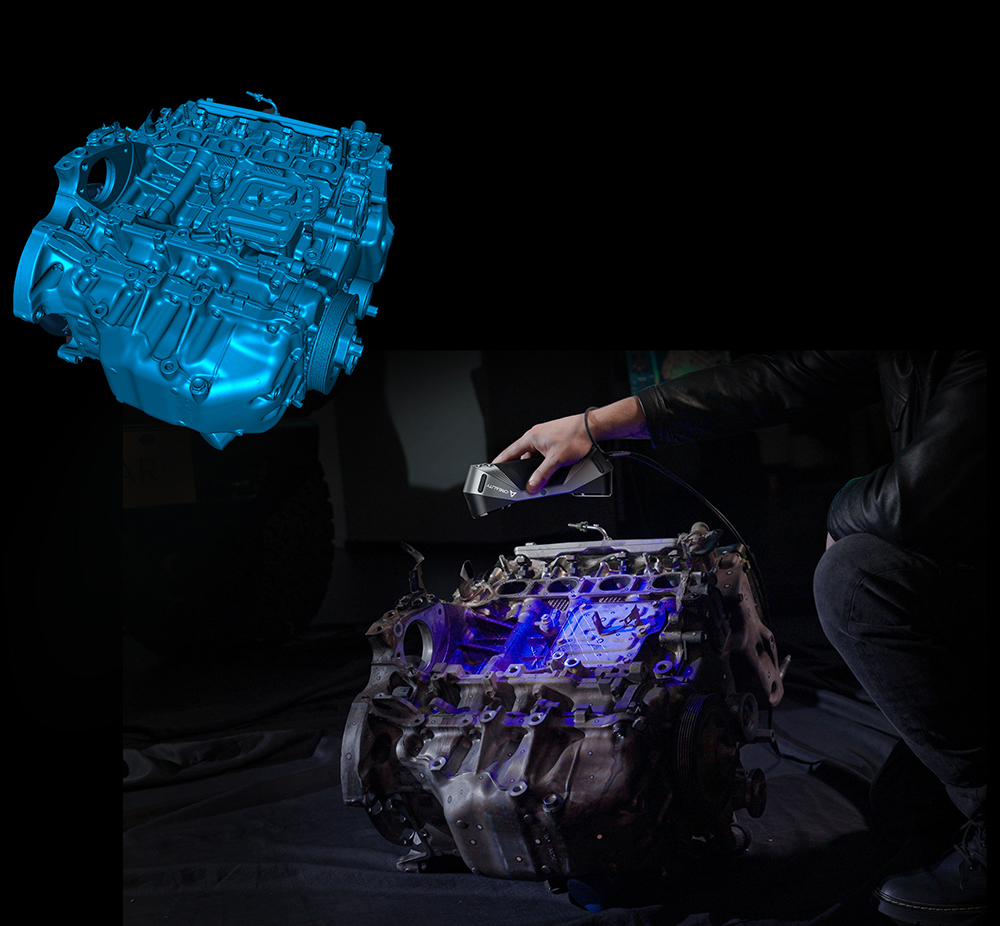

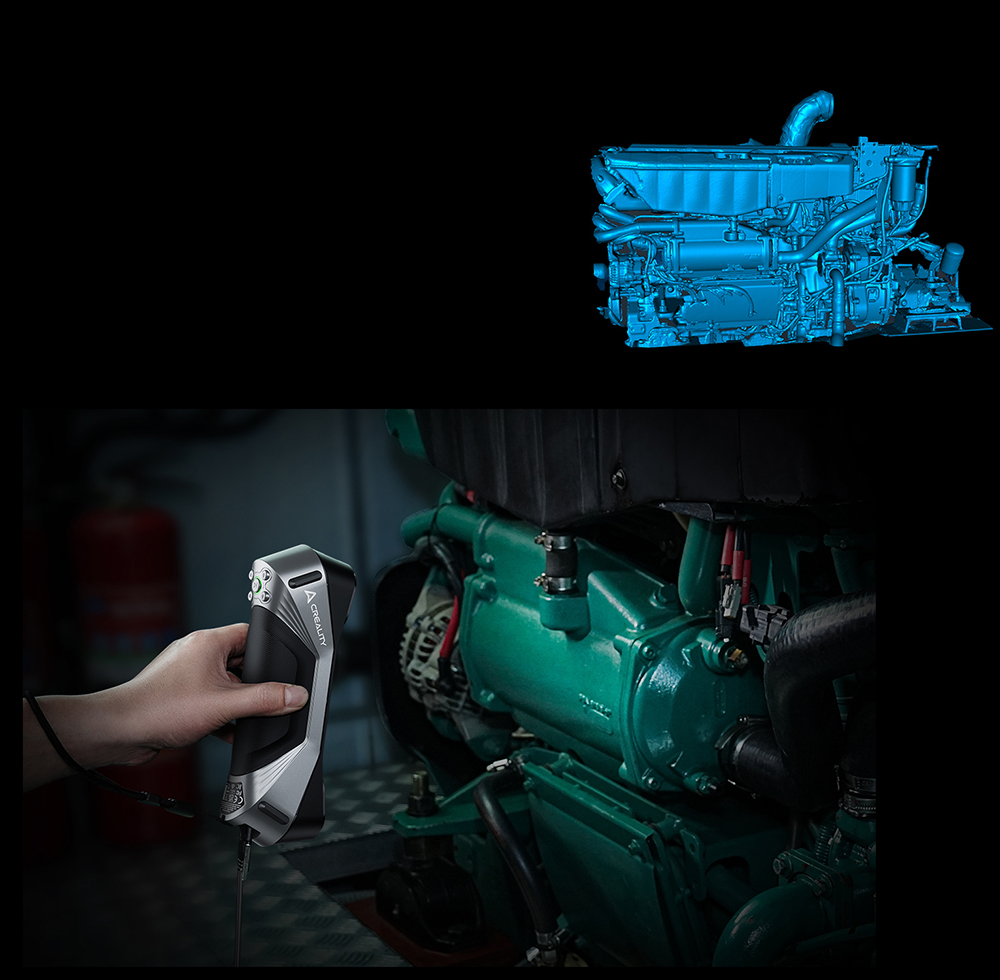

The CR-Scan Raptor uses 3D imaging with speckle matching, eliminating the need for markers for fast data capture, even on detailed parts and complex workpieces. Even without using a scanning spray, cars, car parts, tires, and other black objects and metal parts can be scanned without any problem.

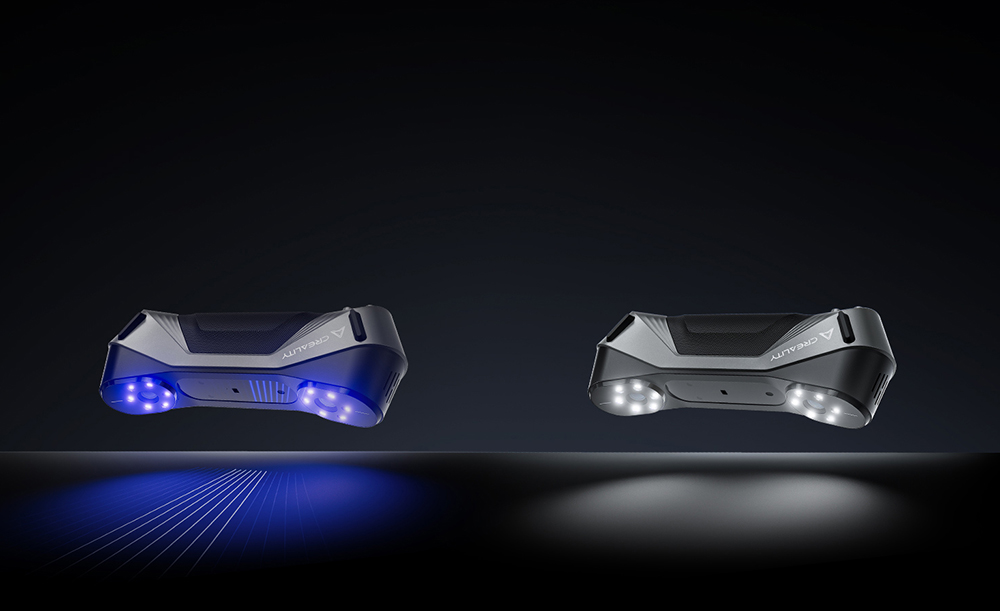

A combination of blue and white light

The circular arrangement of LED texture lights provides more realistic scanning results. While the blue light provides additional light for scanning laser lines, the white light increases the brightness of color textures.

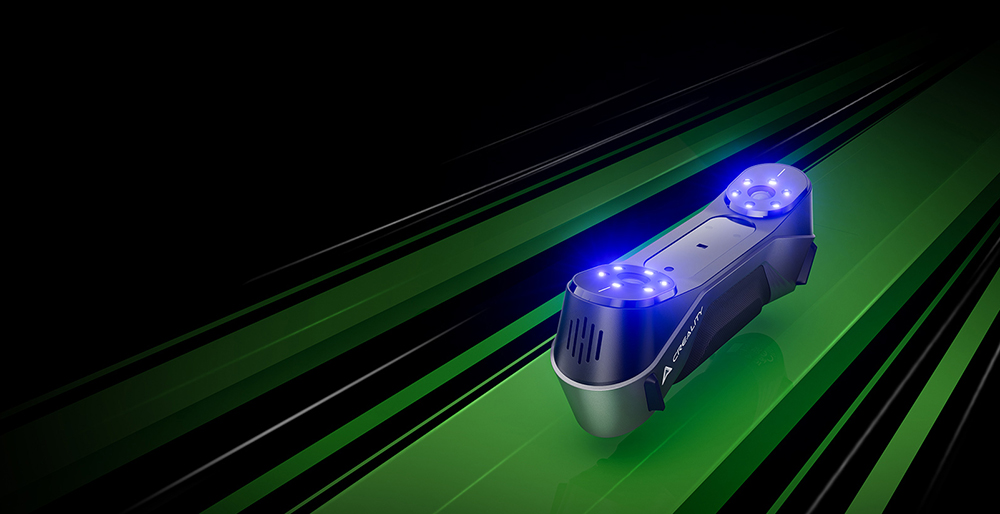

Impressive speed

With an impressive scanning speed of up to 60 fps with the blue light laser and an NIR scanning speed of up to 20 fps, high-resolution scans with the finest details can be captured in a flash.

Face and body algorithm

A face and body mode features a unique facial imaging algorithm for better detail capture. With the CR-Scan Raptor, the entire human body can be scanned in just 2 minutes.

Additional features:

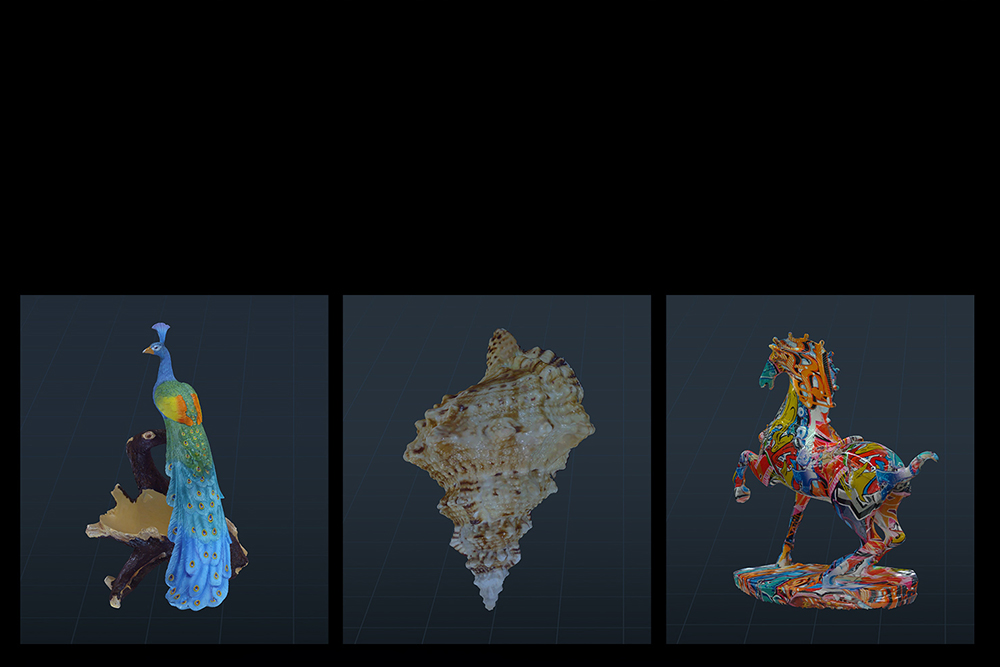

• 24-bit full-color scanning with 12 circular LED texture lights for true-to-life color reproduction,

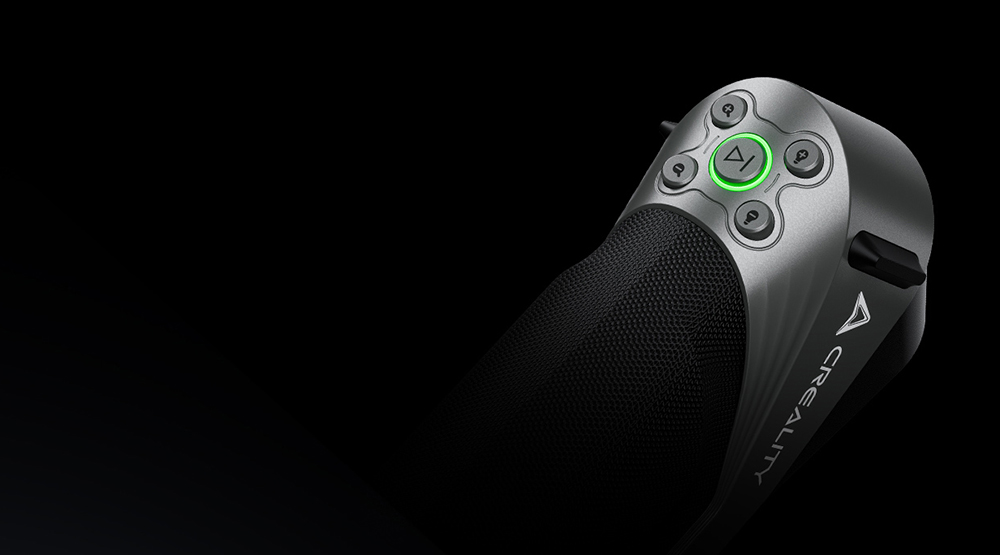

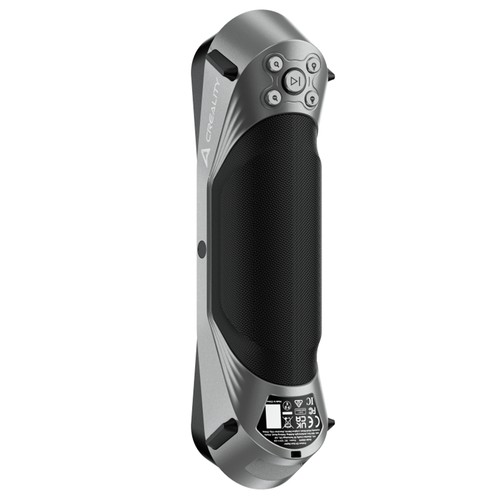

• Intuitive buttons for easy operation, with a ring indicator light that shows the scanning status in real time,
• Smooth scanning processes through anti-shake protection such as One-Shot 3D imaging technology (for natural stability) or the fast retracing speed,

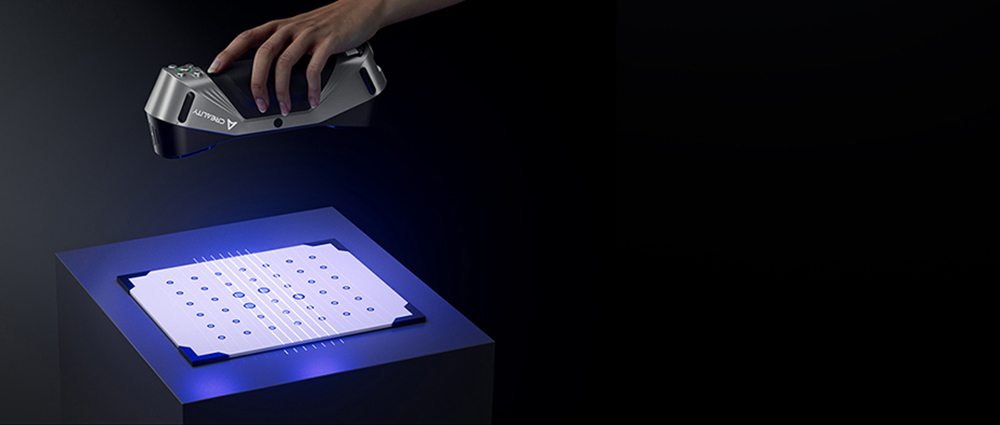

• High-precision calibration plate made of glass substrate,

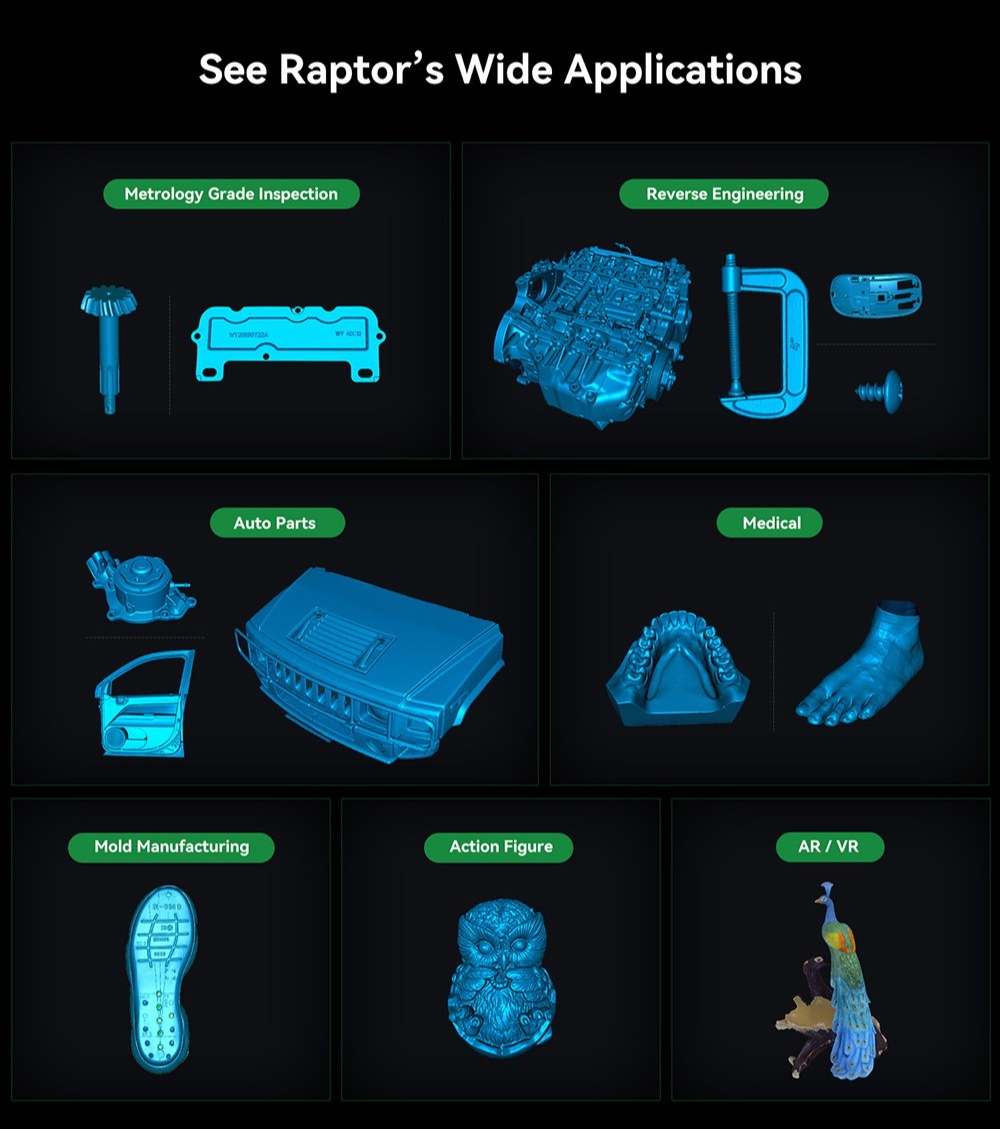

• Wide range of applications: metrological testing, reverse engineering, manufacturing of car parts, medical technology, mold making, action figures, AR/VR, and much more
