Creality Sonic Pad

Highlights

• Open Source 3D Printing Pad Based on Klipper

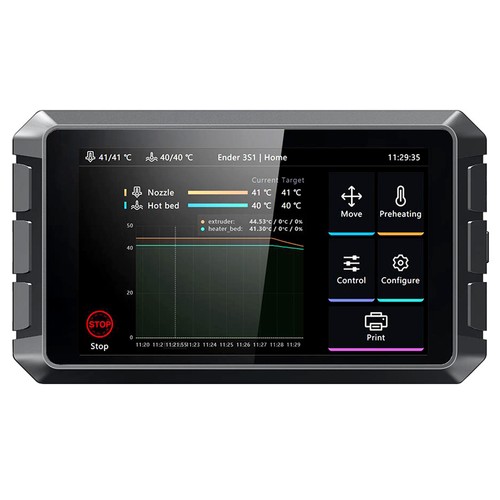

• 7-inch Precise Control Screen
• 1024×600 Resolution
• 64-bit Mainboard

Creality’s Sonic Pad is a Klipper-based 3D printing touchscreen compatible with most of FDM printers, including the pre-configured models like the Ender-3 Pro/Ender-5 Plus/Ender-3 Max/Ender-3 S1 Plus/CR-10 Smart/CR-10S Pro V2/CR-10 V3/Ender-3S1/Ender-3S1 pro/Ender-3v2/Ender-3V2 NEO. A powerful combination of software and hardware ensures unparalleled 3D printing performance, the Sonic Pad brings Klipper to its array of 3D printers with sleek hardware and an intuitive, open-source touchscreen OS and at a compelling price.

Klipper is a firmware that came out as an alternative to Marlin when the limited processing capabilities of 8-bit mainboards started bottlenecking print speeds. Instead of using the 3D printer s primary mainboard as the main processing powerhouse, Klipper is installed on a secondary Linux-based computer C usually a single-board computer (SBC) like a Raspberry Pi C which takes over the heavy G-code processing, relegating the printer s mainboard to simple execution with the lightweight Klippy firmware.

Highly Integrated Klipper Features
The Creality Sonic Pad provides users with a full suite of Klipper s unique features including high print quality and speed, resonance compensation (input shaping), pressure/linear advance, and flexible macros.

Connectivity Easily, Support Personalized Requirement
The Creality Sonic Pad can connect to almost any FDM 3D printer available on the market via a USB cable. Besides, Sonic Pad supports user-defined programmable macros, for a personalized function.

Rich Extensible Interfaces

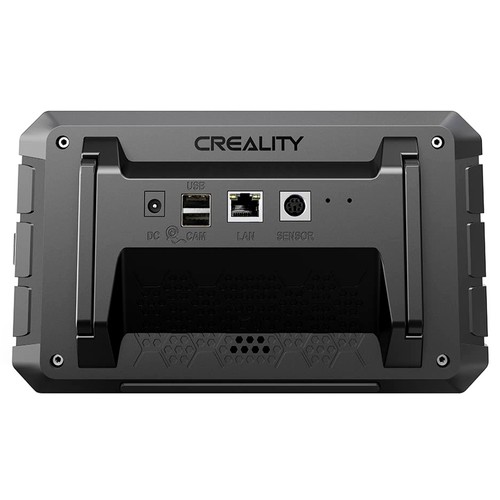

It is powered by a 64-bit CPU and mainboard, and configures 4 x USB ports, 1 x RJ45 port, and 1 x WiFi module, carrying 2Gb RAM and 8Gb ROM, enabling remote control of printers.

Intuitive UI & Real-Time Preview
The Sonic Pad supports sliced model preview when using Creality Print, Ultimaker Cura, Prusa Slicer, and Super Slicer.

Control Access from Multiple Platforms
It can be operated either by the built-in touch screen, remotely on a phone, or a PC from the web UI when connected to a LAN.

OTA & USB Upgrade
The Creality Sonic Pad OS can be upgraded online via OTA or offline via a USB disk.

Open Source Commitment
Creality Sonic Pad follows the rules of the Open Source community. Users will be free to modify and customize the source code.

Plug and Play
With the included configuration manual, it is easy to set things up. There are 30 popular printer models that have been preconfigured to Sonic Pad. Upgrade experience without any delay. Including Ender-3 V2, Ender-3 V2 Neo, Ender-3 S1, Ender-3 S1 Pro, Ender-3 Pro, Ender-5 Plus, Ender-3 Max, Ender-3 S1 Plus, CR-10 Smart, CR-10S Pro V2, CR-10 V3, Ender-5 S1, Ender-5 Pro, Ender-6, Ender-7, CR-6 MAX, Ender-3 Max Neo, CR-10, CR-10 S4, CR-10 S5, CR-10 Smart Pro, CR-6 SE, CR-200B, CR-30, Sermoon D1, Ender-2 Pro, Prusa Mini, CR-M4, Flsun SR, Flsun Q5.
