e3D V6 All-Metal Hotend

e3D’s signature all-metal design allows you to reliably print high temperature materials. and they have added extra functionality with soft and flexible filaments. This opens up a huge range of new opportunities for your printer.

The V6 can comfortably reach 285 C with the supplied thermistor. By swapping a thermistor for a thermocouple (may require additional electronics) or PT100 you can reach over 400 C. This not only allows you to print extremely high temperature materials like Polycarbonate and Nylons but also eliminates Hot End meltdown failures associated with PEEK/PTFE designs. The PTFE filament guide inside the V6 HotEnd is never subjected to high temperatures. so there is no risk of damage through overheating. For more information about the maximum temperature recommendation please visit this documentation page.

e3D has focused on cutting as much bulk from the E3D V6 as possible. This means an overall length of just 62mm. and low bulk in X/Y dimensions!

e3D’s new thermistor cartridge simply slides into place and is secured with a single screw. They use high temperature glass sleeving to insulate the thermistor legs as well. This makes installing or removing the thermistor a quick and clean process compared to previous methods involving fiddly taping.

e3D has kept their sharp thermal transition that gives the high quality printing performance users have come to expect from E3D HotEnds. A sharp thermal break gives better control over filament output so you get more immediate start and stops when extruding as well as retracts that are more effective in combating ooze. This means sharper. more accurate prints that have less stringing. oozing or blobbing.

The V6 is a fully-integrated part of the E3D Ecosystem. e3D’s range of nozzles and blocks gives you more opportunity to choose how you want to print. Choose from different filament diameters and materials to take your printing to the next level. and upgrade for ultra high-temperature printing!

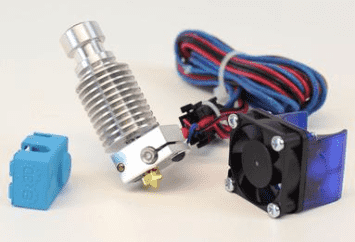

• V6 Heatsink (x1)
• V6 Heatbreak (x1)
• V6 Brass 0.4mm Nozzle (x1)
• V6 Duct (x1)
• V6 Aluminum Heater Block (x1)
• Heater Cartridge 12V or 24V (x1)
• Thermistor Cartridge (x1)
• Thermistor Extension Cable (x1)
• 30x30x10 Fan 12V or 24V(x1)
• V6 Fixings Kit (x1)
• V6 Silicone Sock (x1)
• 100mm or 800mm PTFE Tube (x1)
• Thermal Compound
