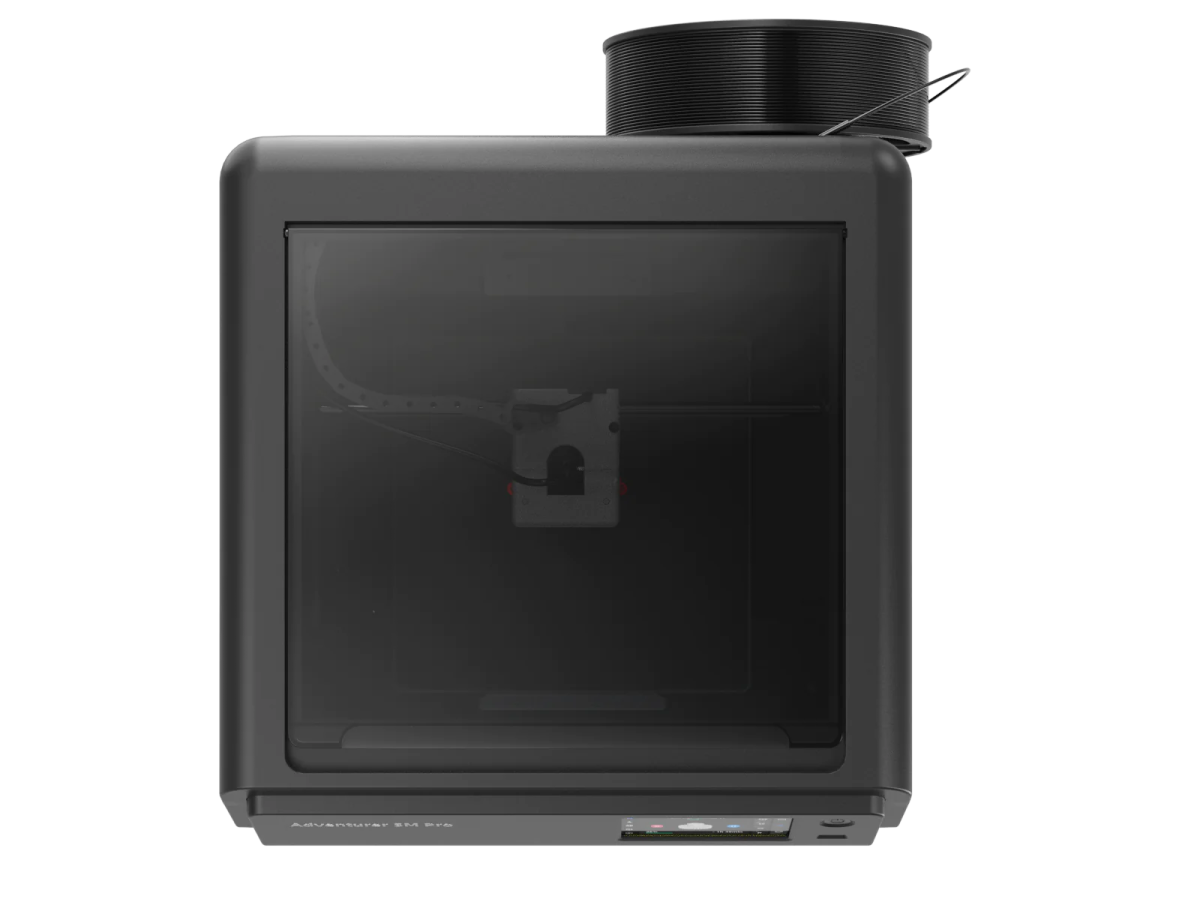

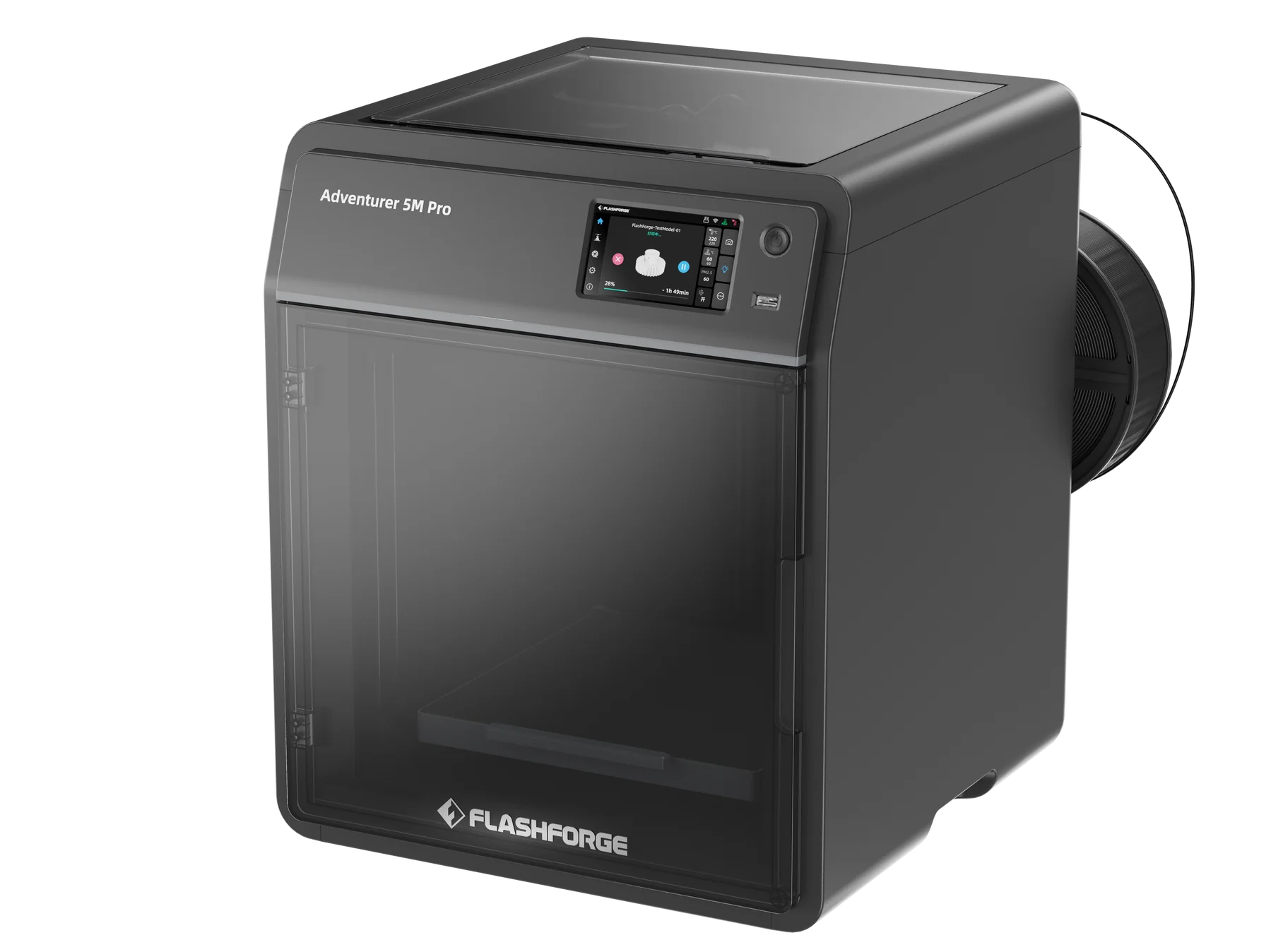

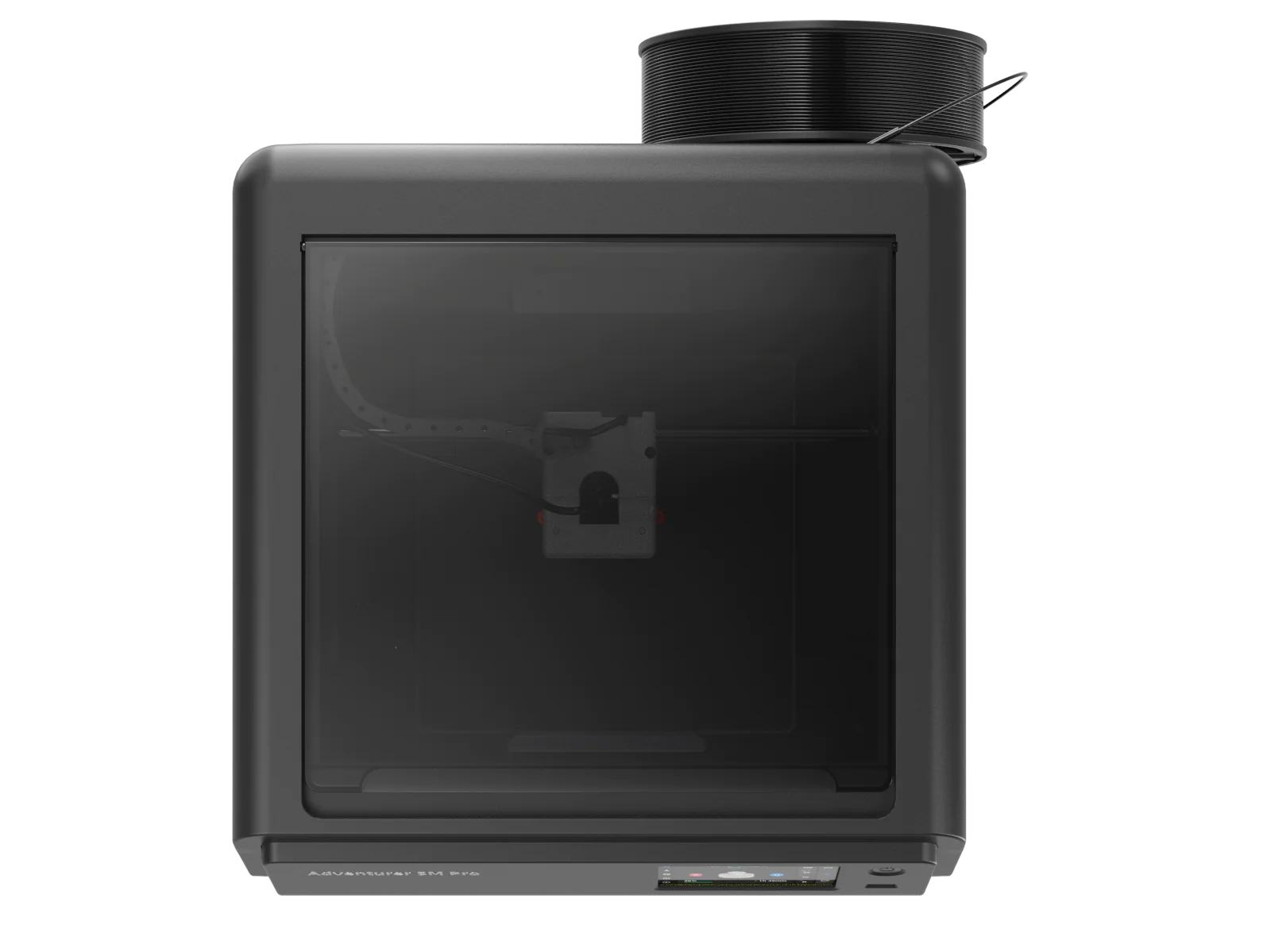

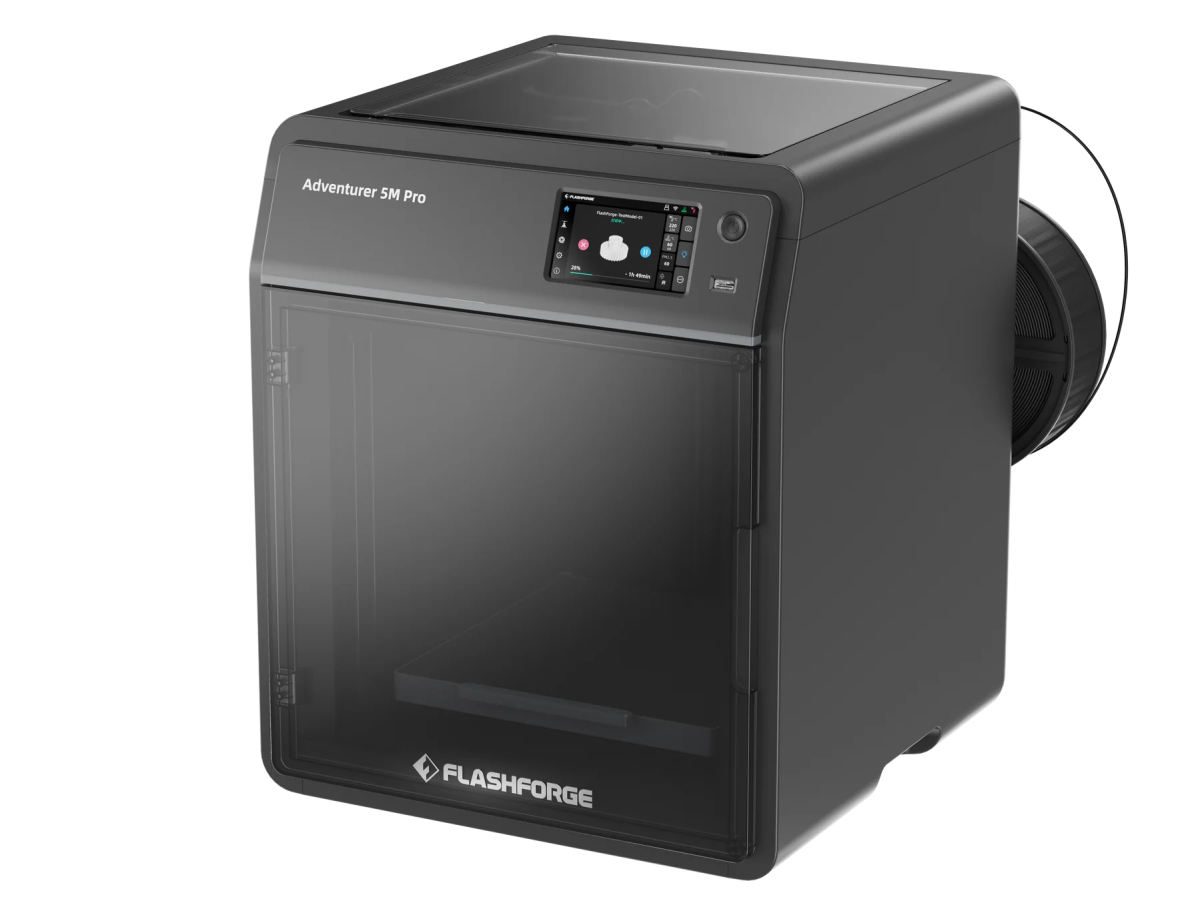

FlashForge Adventurer 5M Pro 3D Printer

Adventurer 5M Pro

*Orders will be shipping out end of December – early January!

Next Level Efficiency

Join the high speed printing movement. Flashforge Adventurer 5M Pro provides unmatched performance and quality with features that can be appreciated by both printing veterans and beginners.

The Ever So Important First Layer

Get that flawless first layer every time. Standard auto build plate leveling and calibration.

Filament Run Out Sensor

Never run out of filament again

Rapid Yet Reliable

Adventurer 5M Pro utilizes a brand-new. sturdy design and consistently reliable materials to ensure high-speed printing while giving you a high-quality work.

• Core XY structure. All-Metal Frame: The stable and smooth motion structure supports stable and low-noise printing in high-speed mode
• Direct Drive: Accurate filament extrusion pressure control

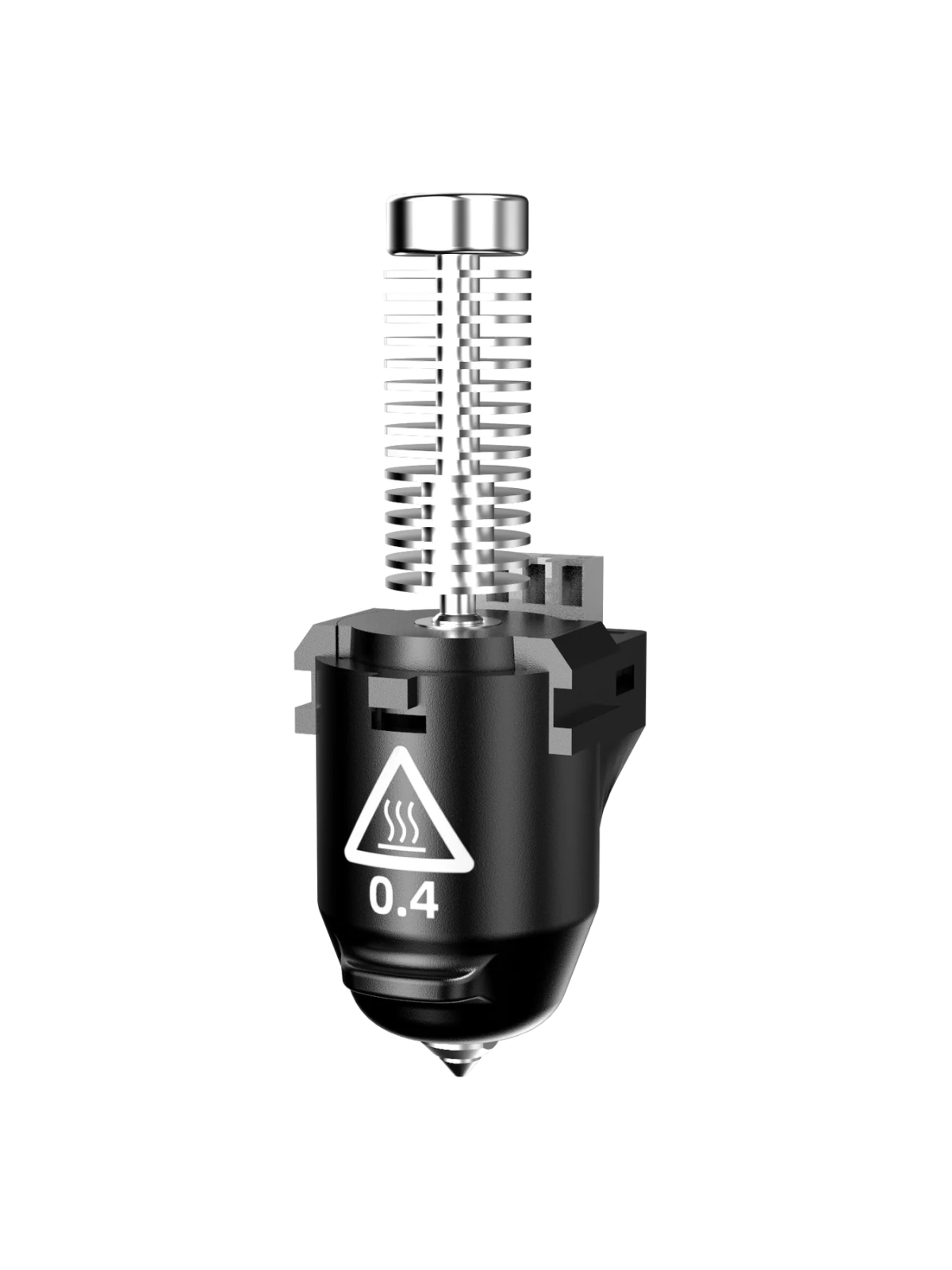

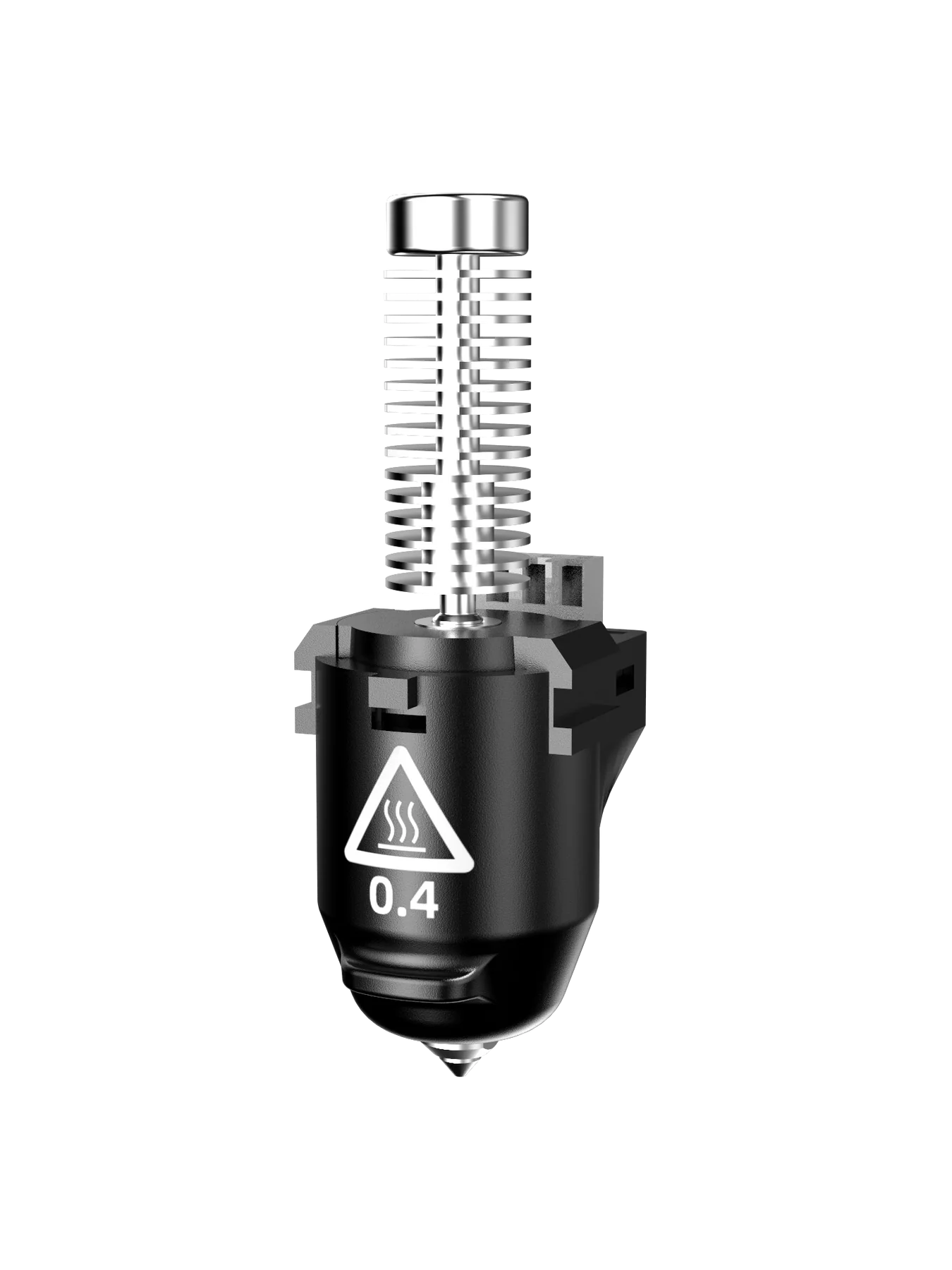

• 280 Nozzle. rapid Heating 360 surround heating. 50w heating power. 200 heating up in 35 seconds .32mm3/s high-flow

Achieve Smooth Printing

• Vibration Compensation: Achieve a smooth surface on your models by eliminating “”ghosting””
• Effective Dual-channel Cooling: Cool your models rapidly with the turbo fan and dual air ducts
• Auxiliary Chamber Cooling: The 12W cooling fan that provides powerful assistance in heat dissipation

Safe Printing

Your health is our concern. Adventurer 5M Pro features a closed structure and dual filtration system to optimize air quality during printing. It includes a HEPA and activated carbon filter to block 99% of particulate matter and VOCs. making it safe for home or classroom use.

• Inner Circulation Filtration: Improve the cavity air. making it suitable for ABS and other materials.
• External circulation filtration: Air is drawn in from outside. filtered. and circulated out. suitable for materials like PLA and PETG
• HEPA + activated carbon double-layer filter: Blocks 99% of particulate matter and VOC. guarantee your health.

Software Enhanced Compatibility

You can easily use FlashPrint 5 for various printing modes and matericals. streaming the slicing process. You can print effortlessly. monitor the print status. and manage the printer online.

It also allows for Cloud control. monitoring your printing progress.

Specifications

Printing

• Number of Extruders: Single
• Print Technology: FFF (Fused Filament Fabrication)
• Print Volume: 220 x 220 x 220 mm (8.7 x 8.7 x 8.7 in)
• Print Precision: 0.2 mm
• Positioning Precision: X/Y-Axis: 0.025 mm; Z-Axis: 0.0025 mm
• Nozzle Diameter: 0.4 mm (Standard); 0.22 mm. 0.6 mm & 0.8 mm (Optional)
• Layer Thickness: 0.1 ~ 0.4 mm
• Print Speed: Up to 300 mm/s
• Travel Speed: Up to 600 mm/s
• Acceleration: 20.000 mm/s2
• Maximum Extruder Temperature: 280 C (509 F)
• Filament Compatibility:PLA/PETG/TPU (0.4mm nozzle) ABS/ASA PLA-CF/PETG-CF (0.6/0.8mm nozzle)
• Heated Build Plate: Yes

Mechanical & Dimensions

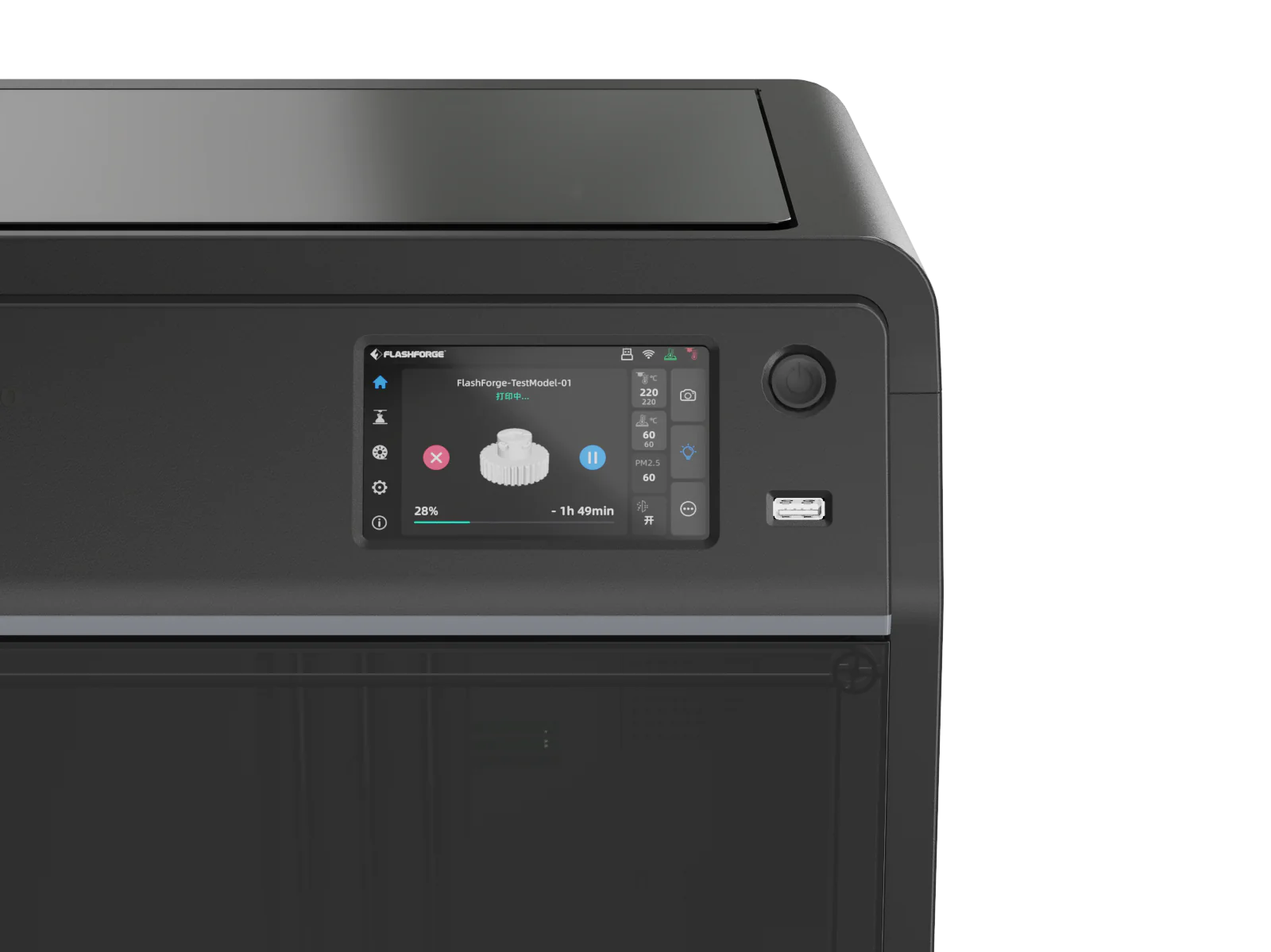

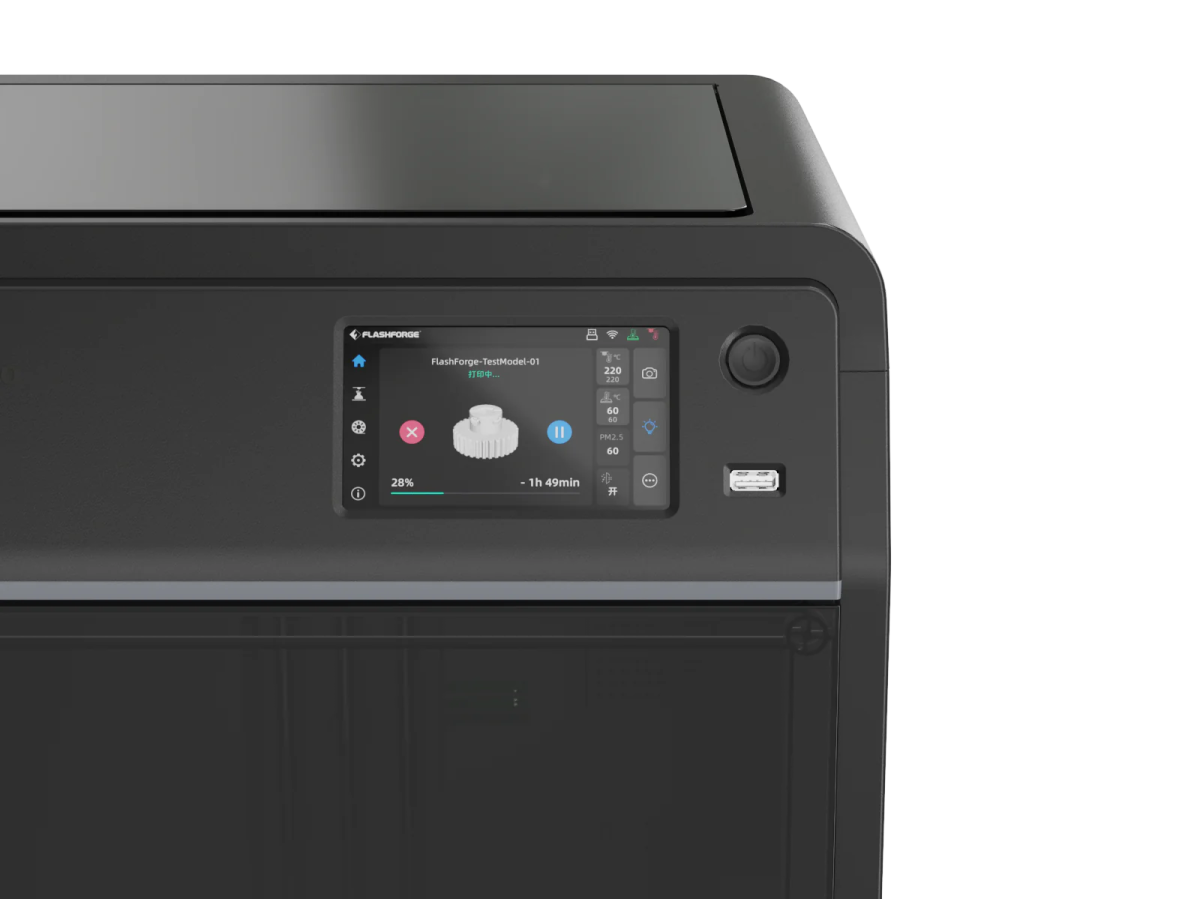

• Screen: 4.3-inch Touch LCD Screen
• Air Filter: HEPA H13 with Activated Carbon
• Remote Camera Monitoring: Yes

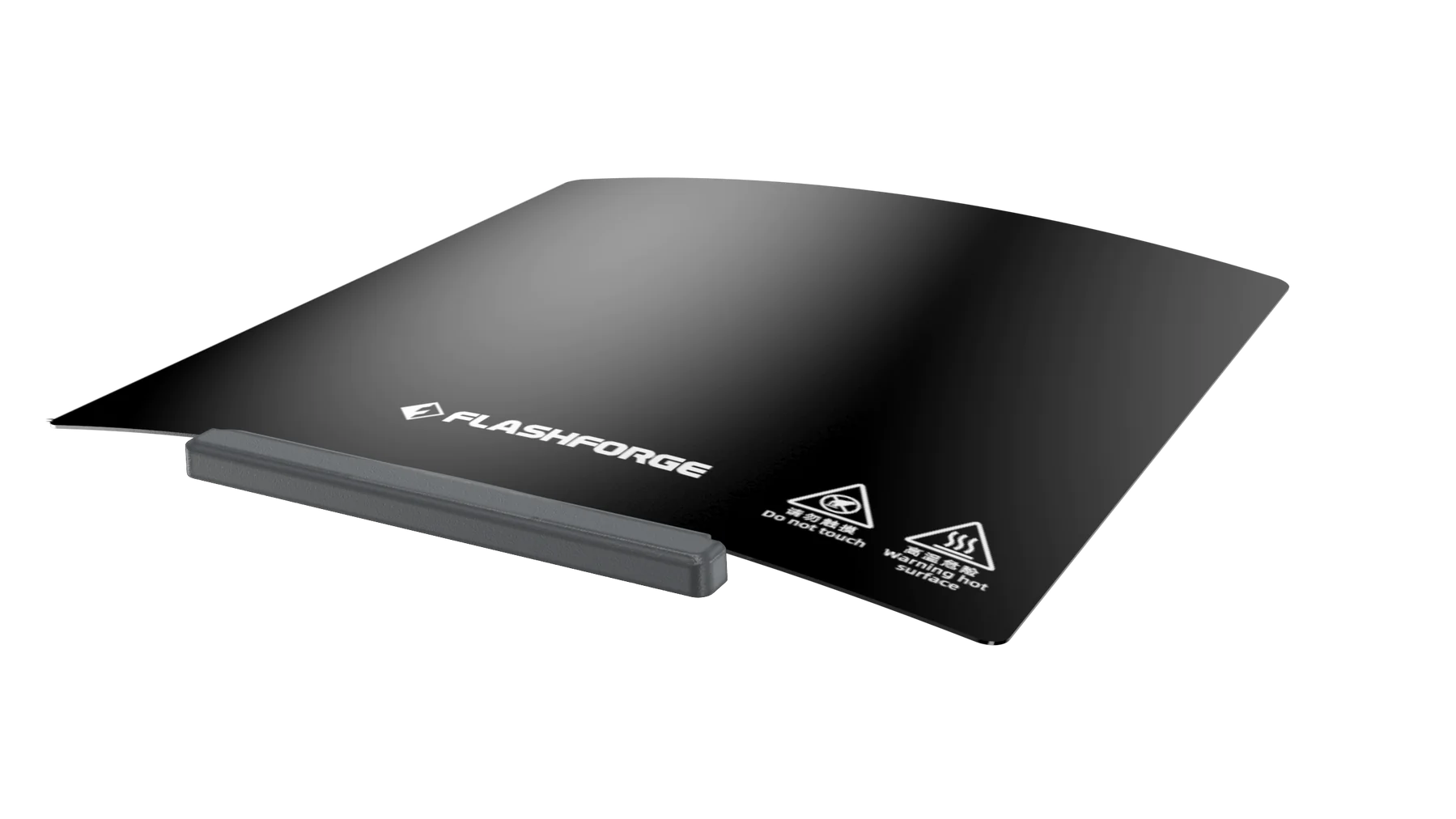

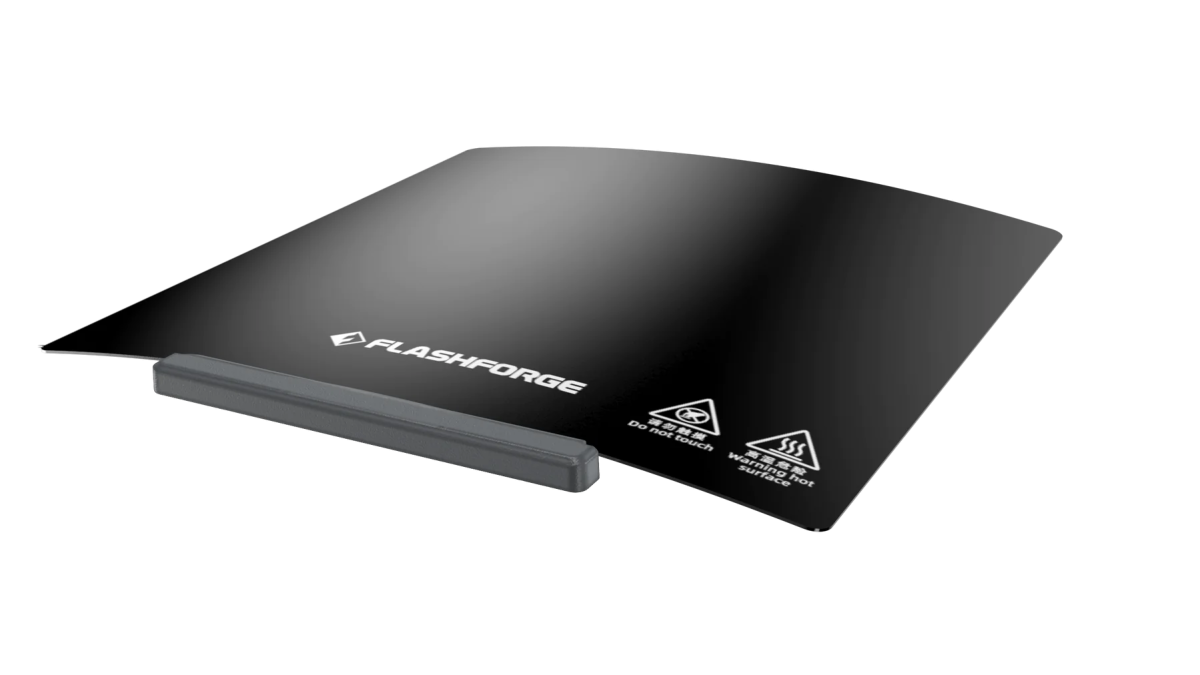

• Print Platform: PEI Build Plate
• Printer Dimensions: 380(L) x 400(W) x 453(H) mm. (15 x 15.7 x 17.8 in)
• Package Dimensions: 460(L) x 480(W) x 530(H) mm. (18 x 19 x 21 in)
• Net Weight: 44.3 LBS (20.1 kg)
• Gross Weight: 58.4 LBS (26.5 kg)

Electrical

• Power Supply: AC 100-240V / DC 24V / 13.3A. 320W

• Connectivity: USB Stick. Wi-Fi. Ethernet. and Cloud Printing

Software

• Slicing Software: FlashPrint / Polar Cloud / Cura
• File Input Format: 3MF / STL / OBJ / FPP / BMP / PNG / JPEG
• File Output Format: GX / G
• Supports (OS): Win7/8/10/11. Linux supports Ubuntu 20.04 and later. Mac OS 10.9 and later

What’s in The Box?

• Adventurer 5M Pro 3D Printer
• 250G PLA Filament
• Power Cord
• Quick Start Guide
• 0.6 mm Nozzle Kit
• Screw Driver
• Hex Wrench Set
• Grease
• USB Drive
• Leveling Tool
• Filament Holder
• Pliers
• Glue
