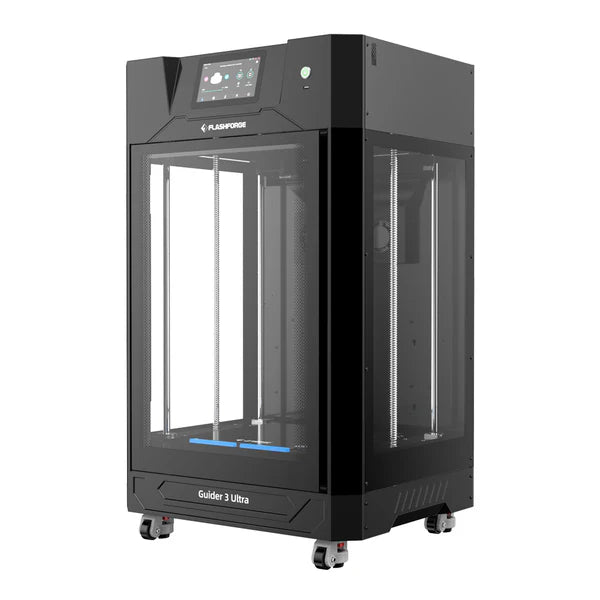

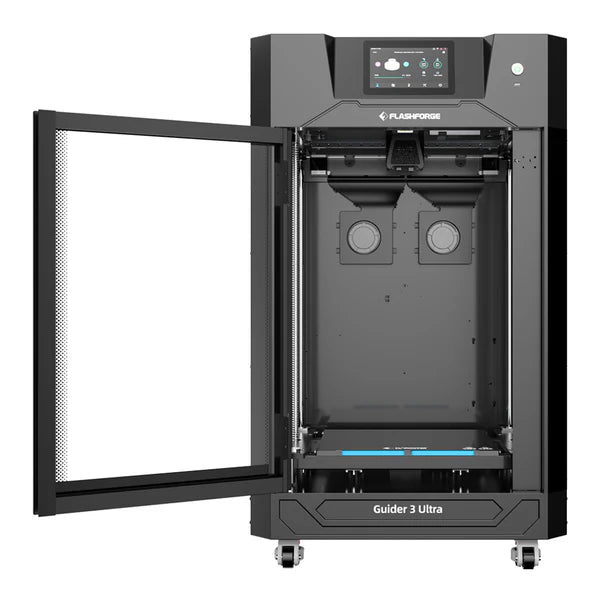

FlashForge Guider 3 Ultra 3D Printer

Guider 3 Ultra

The Flashforge Guider 3 Ultra is a commercial grade additive manufacturing equipment with ultra high speed printing. reliability. and quiet printing operation.

Ultra high speed 3D printing at a commercial and industrial grade levels is what the FlashForge Guider 3 Ultra can offer to your business. Featuring CoreXY design for extreme high throughput while maintaining the legendary Flashforge reliability and quality.

CoreXY Design

Efficiency and Quality

CoreXY Design: smoother movement. reduced resonance frequency. quiet operation. and reduced misaligned layers

High speed printing at 500 mm/sec

Quiet Operation Even with High Speed Settings

Superior Model Suface Details

Newly designed internal structure improves the printing efficiency while improving on strength of the print structure

The dual Z-axis ball screw design provides accurate positioning and smooth model surface resulting in high quality prints

Uninterrupted Steady Movement

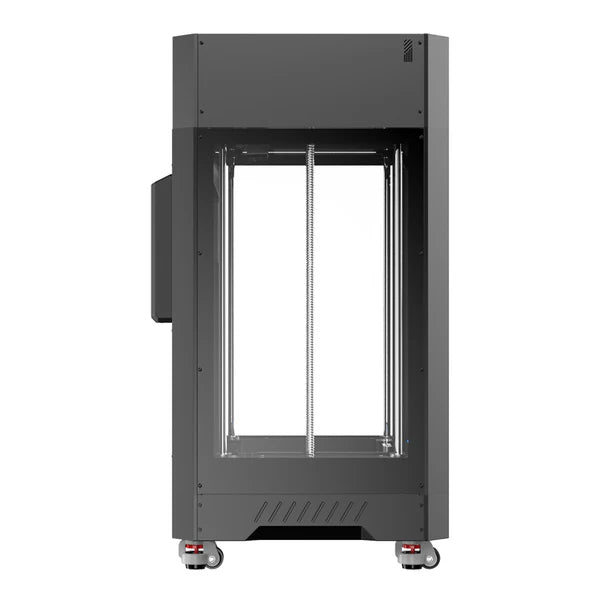

Featuring ultra sturdy and smooth dual z-axis ball screws and guides

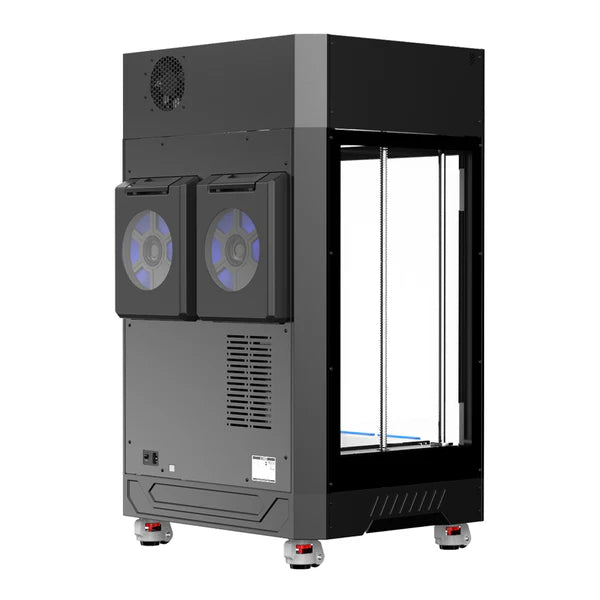

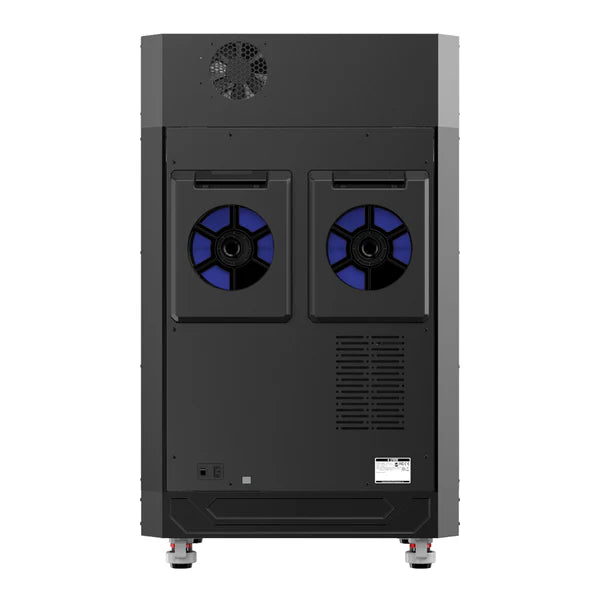

Built-in Filament Drying Chambers

The dual sealed filament chambers will effectively ensure that filaments are in a sealed and dry environment both during the printing process and in the idle state. The humidity level can be visually viewed with a hygrometer equipped.

HEPA 13 Air Filtration System

Comes standard with the Guider 3 Ultra

Material Compatibility:

PA-CF. PA-GF. PETG-CF. PETG-GF. PA. PC. ABS. ASA. PLA-CF. PLA

Third-party Filaments Supported

Note: Use of high quality filaments is highly recommended

Resume Printing from Power Outage

Filament Run-out

Assisted Leveling and Automatic Calibration

Flexible and Removable Build Plate

Quick Release Nozzle

Remote Video Control and Monitoring

Specifications

Printing

• Printing Precision: 0.15mm or 0.002mm/mm
• Position Precision: X/Y axis: 0.011 mm; Z axis; 0.0025 mm
• Layer Thickness: 0.05-0.4mm
• Build Volume: Single Extruder – 330(L) x 330(W) x 600(H) mm (13 x 13 x 23.6 in) Dual Extruder – 300(L) x 330(W) x 600(H) mm (11.8 x 13 x 23.6 in)
• Nozzle Diameter: 0.4 mm Standard (Optional 0.6 mm/0.8 mm)
• Maximum Extruder Temperature: 350 C (660 F)
• Heated Build Plate: Yes
• Filament Diameter: 1.75 mm
• Filament Compatibility: PA-CF. PA-GF. PETG-CF. PETG-GF. PA. PC. ABS. ASA. PLA-CF. PLA. PETG. PVA. HIPS
• Print Speed: 10-250mm/s

Mechanical & Dimensions

• Number of Extruders: Two
• Printer Dimensions: 635(L) x 550 (W) x 1070(H) mm (25 x 21.7 x 42 in)
• Packaging Dimensions: 775(L) x 690(W) x 1235(H) mm (30.5 x 27.2 x 48.6 in)
• Net Weight: 155 LBS (70 KG)

Electrical

• Power Supply: AC100-240V . 850W Max
• HD Touch Screen: 7 inch
• Connectivity: WiFi. Ethernet. USB Flash Drive. Cloud Printing
• Certification: CE / FCC / RoHS

Software

• Software: FlashPrint Third Party Slicing Software: Slic3r. Cura (Required to set up)
• File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
• File Output Format: GX / G / GCode Supports (OS): Windows XP/Vista/7/8/10. and Mac OS
