Two Configurations in One System

This product is estimated to arrive 1-2 weeks after the order is placed.

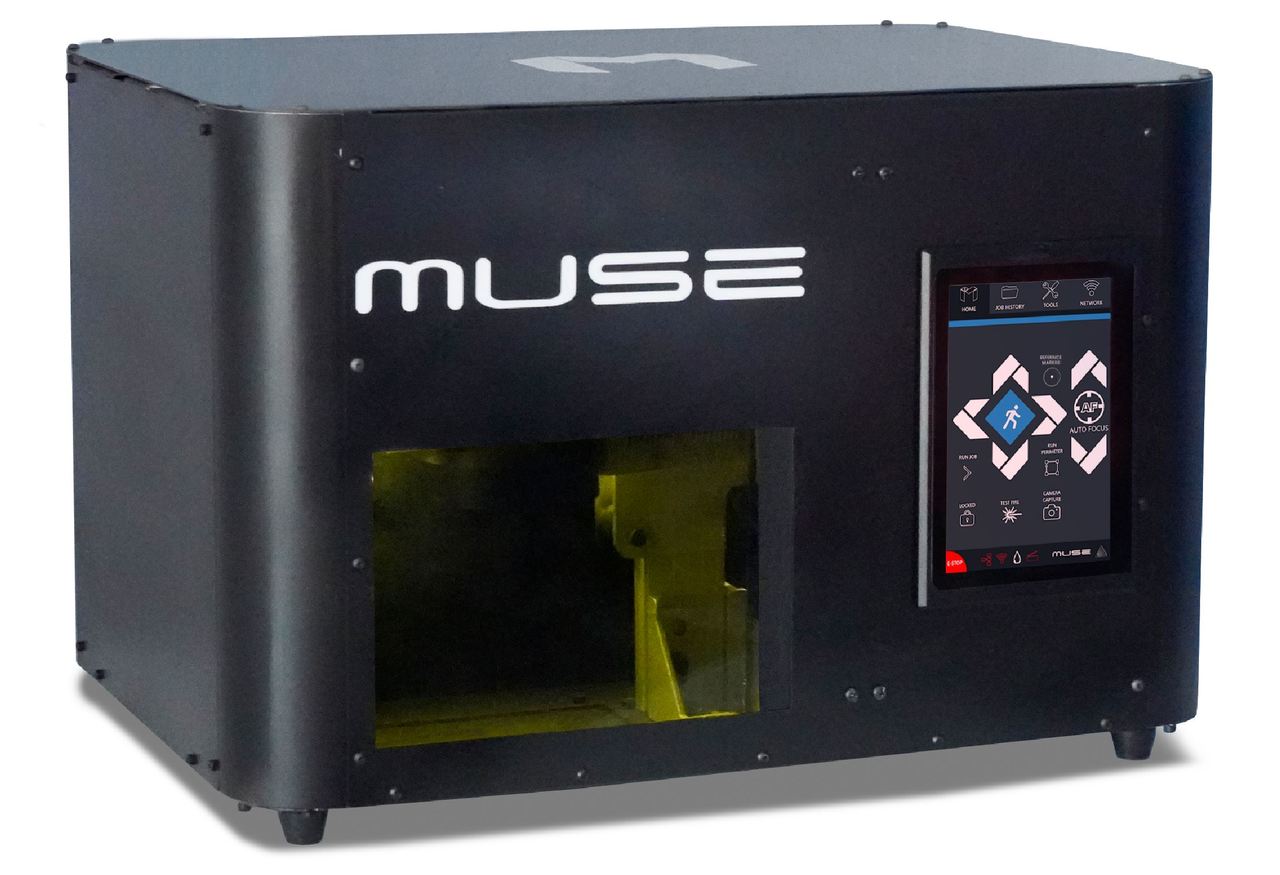

The Muse Pandora is a game changing design which can be used both as a fully enclosed class 2R 1064nm fiber laser with a 4 x 4 marking area with a 160mm lens installed or an open projector style type laser capable of marking up to 12 x 12 when the floor access panel removed. With features like the Intel’s Real Sense camera. allowing for live real-time autofocus. the LCD touchscreen functions and the powerful. yet easy to use self hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business. muse offers the best most innovative technology in the desktop laser market.

Features include:

• Locally Hosted. Browser-Based Software – No internet required. (Windows. Mac and Linux compatible)
• Class 2R Laser Enclosure with Motorized Door – Fully enclosed unit when used with the 160mm lens with motorized door for safe usage

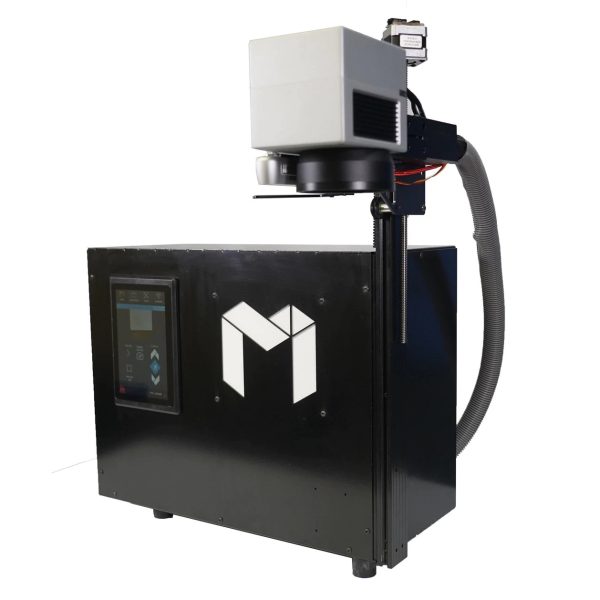

• Removable Floor – A removable bottom allows larger lenses with larger marking areas to shoot through the bottom of the machine
• Rotary Attachment (Optional) – Allows for cylindrical objects such as cups to be engraved
• Material Database – Common materials such as aluminum. steel. black acrylic. lexan. leather. granite and more have built in presets for easy workflow
• 7″” LCD Touch Screen – Allows users to control major functions right from the machine
• 3D Camera Powered Motorized Autofocus – Takes 3D images of what’s inside your laser for extremely accurate design placement on multiple height objects. Motorized Z stage automatically focuses multiple times to mark non-flat object
• Ultra-Reliability – Solid-state 24V DC 1064nm fiber laser requires no water cooling and has no consumable parts with estimated lifetime of more than 25.000 hours
• Ultra-Precision – Closed loop galvonometer scanners with encoder feedback project the laser beam with no additional mechanical parts such as belts. gears or pulleys to ensure perfect results each time
• Power Options – 20W for use with 210mm lens for 6″”x6″” working area (150mmx150mm) or select 50W laser with 430mm lens for up to 12″”x12″” working area (300mmx300mm)
• Technical Support – Via phone and email
• 1 Year Warranty

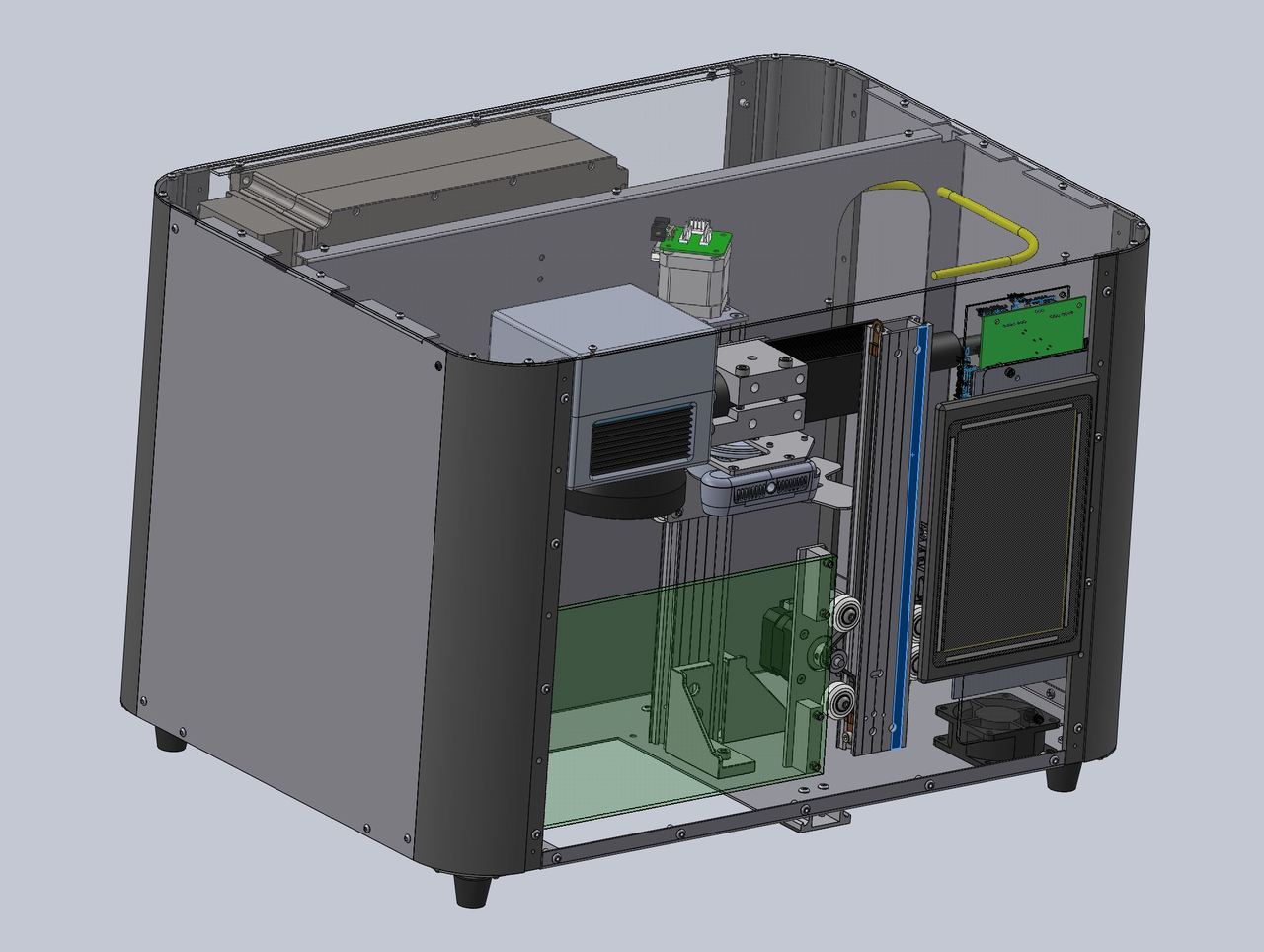

Included with your Muse Pandora 3D Laser Cutter:

• Enclosure/Motorized Door
• Fiber Laser Source
• Intel Real-Sense 3D Camera
• 7″” Inch Touch Screen
• Optics
• Z Stage
• 3D Scanner with Motorized 3D Autofocus and 3D Mark

The Muse Pandora utilizes the Intel’s 3D Real Sense camera to accurately map millions of 3D data points to create a 3D workspace. This allows multiple objects with varying heights to be engraved – all in one job simultaneously. The standard 3D Camera uses two stereo cameras combined with a laser dot projector to create the 3D height map.

Also available is a Time of Flight (ToF) 3D Camera upgrade which measures the speed of light at millions of points to create the height map. ToF cameras are much better at resolving reflective and transparent objects which are otherwise unresolvable by the standard laser dot projector. Using 3D height data. objects outside a normal marking field of view are split and marked with the synchronized Z motor. The Z motor has high resolution encoder for precise travel.

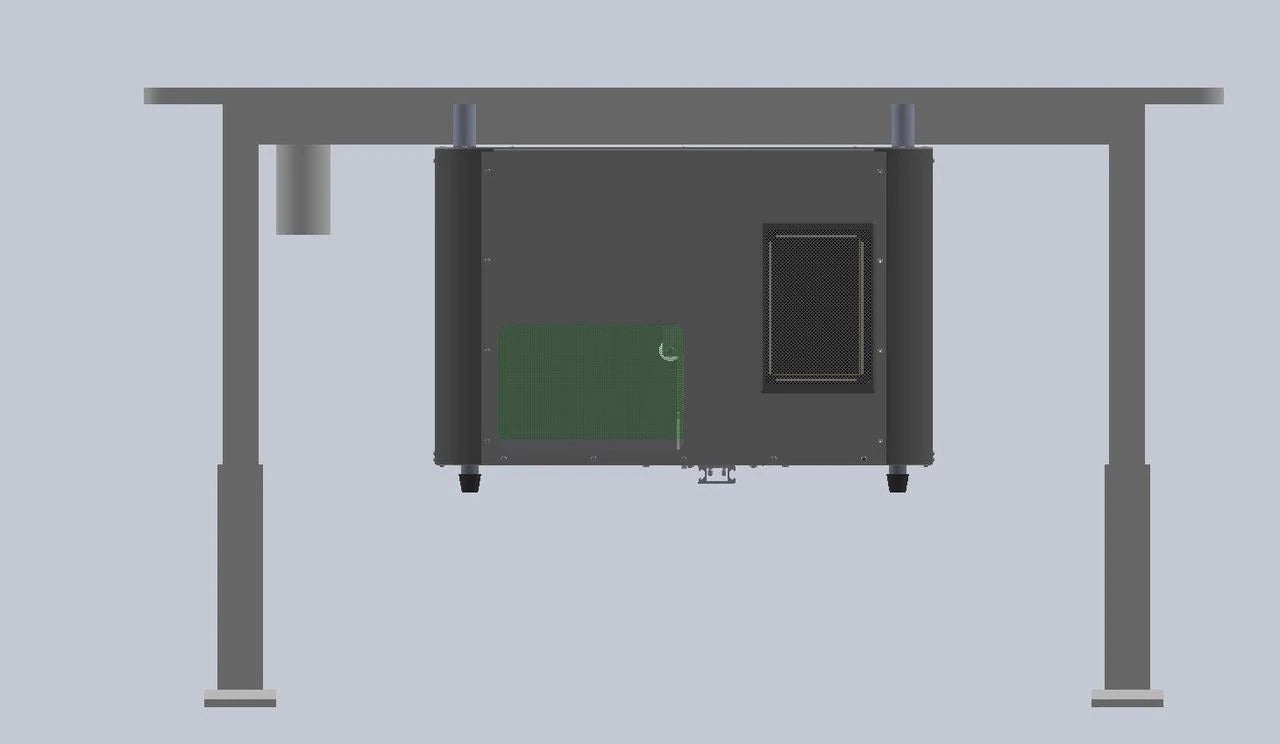

Muse Pandora is capable of autofocusing even with the bottom access panel removed. Combined with the optional Motorized Standing Desk. Muse Pandora sits suspended underneath acting like a projector engraving any object that fits underneath the desk. Rough Z focus is adjusted on the motorized desk then fine percise autofocus is done with the encoder based Z motor drive.

The Perfect Accessories:

Engrave curved objects with a rotary attachment.

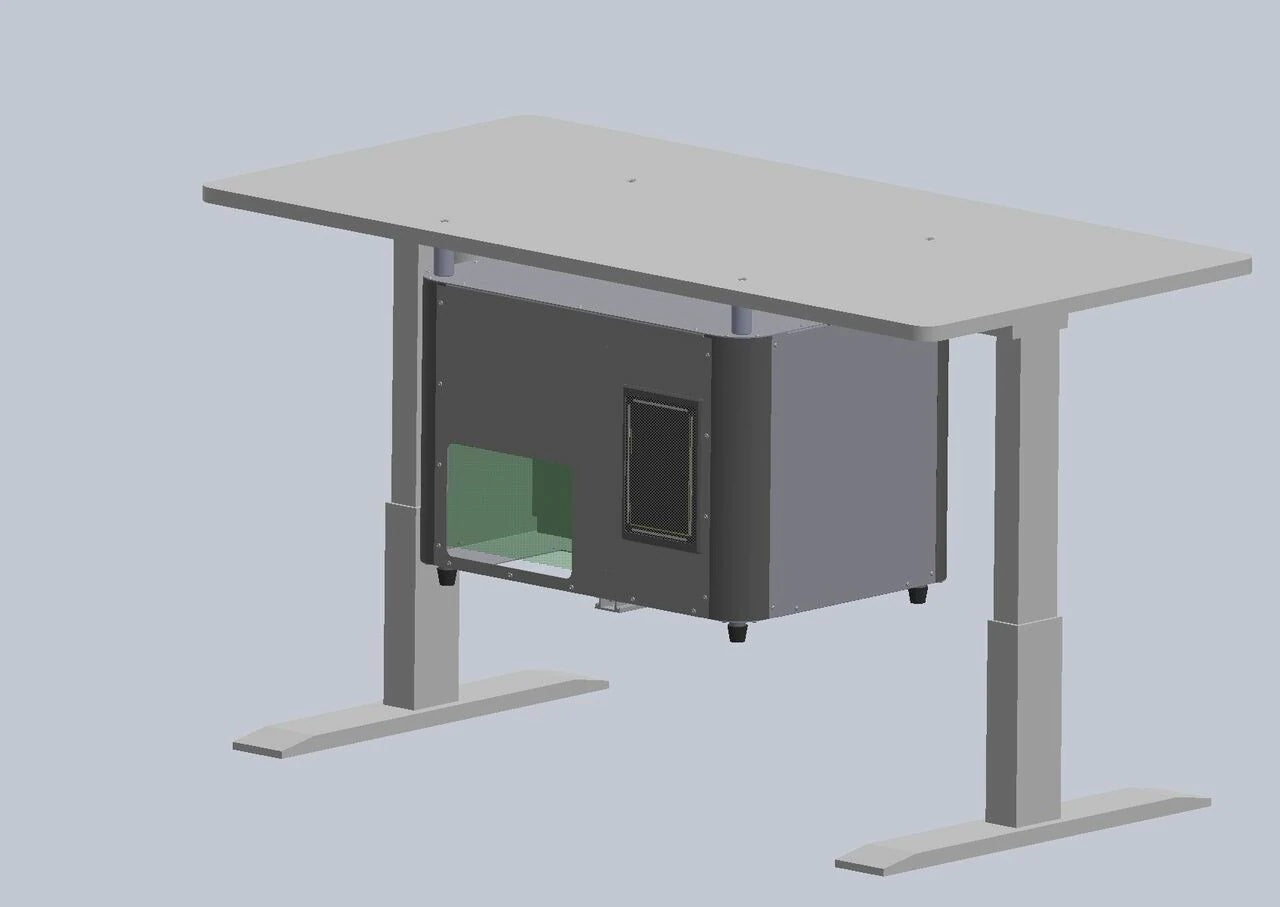

Expand Z travel and Engrave much larger options with our motorized electric standing table. Muse Pandora is suspended underneath the table and can still autofocus even with the largest lens options.
Works 100x faster than non-galvo gantry based lasers
Use the 3D camera to determine object diameter
Work with tumblers. glassware and more.
Increase laser wattage to accelerate engraving speed. depth and marking ability.
Fume extractors. specialty focus lenses and more!
The Best Laser Control Software on the Market!
The powerful. easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There’s nothing to download. ever.

Welcome to the future of laser control & design software!
