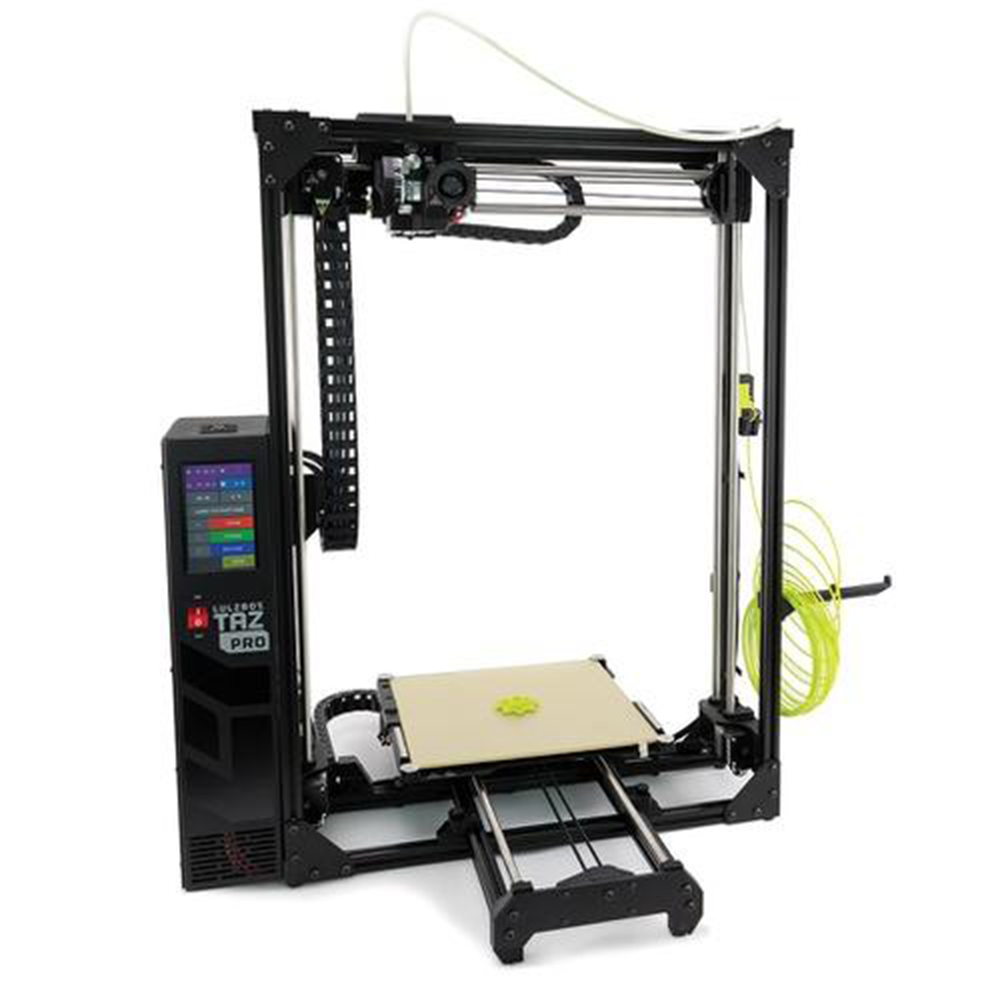

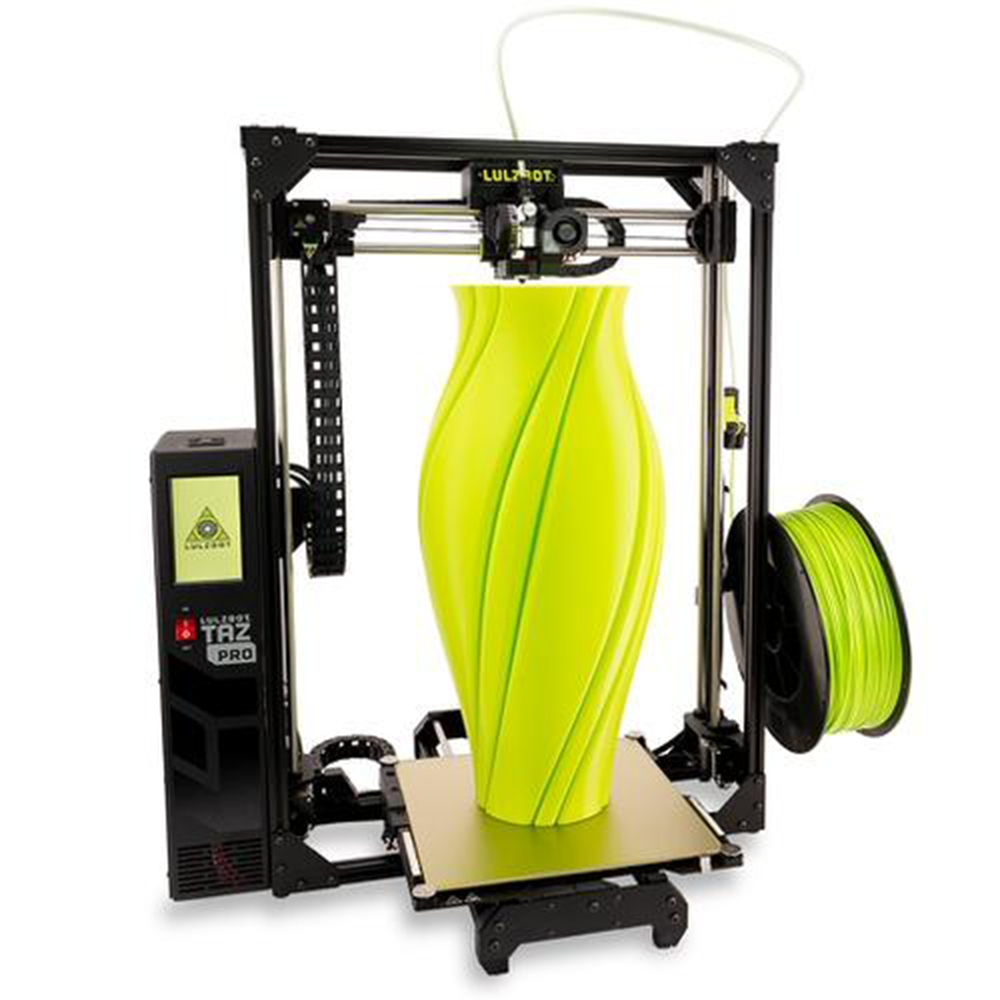

LulzBot TAZ Pro XT 3D Printer
17
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：
Description
Overview
The LulzBot TAZ Pro XT gives you a single extrusion?2.85mm tool head that can put down big layers in a tall 23″” build area with superior 3D print quality. and easy. professional results.
-
Single Extrusion HS+ Tool Head
-
2.85mm extruder featuring a hardened steel nozzle and extruder hobb capable of printing high-strength composite polymers like PA-CF and carbon-fiber filled Nylon along with more traditional materials like ABS. PETg. PLA. and NinjaFlex.
-
Large 280 x 280 x 586 mm build volume with heated build plate.
-
Automated X/Y/Z offset calibration. nozzle wiping. and self-leveling features.
-
Enhanced 32-bit electronics for greater processing power. more memory. and quiet operation.?
-
Filament runout detection.
-
Cable chain and reinforced electrical connectors for long wire harness life.
-
5″” full color touch screen.
-
Made in USA
?
Printing?
Print Technology |
Fused Filament Fabrication |
Print Volume Dimensions |
280 mm x 280 mm x 586 mm (11.02 in x 11.02 in x 23.07 in) |
Print Volume |
45.942 cm3 (2.803.58 in3) |
Ambient Operating Temperature |
From 5 C to 45 C (41 F to 113 F) |
Operating Footprint |
83.2 cm x 71 cm x 52 cm (32.76 in x 28 in x 20.47 in) |
Maximum Travel Speed |
200 mm/sec |
Leveling |
Automatic Compensation |
Calibration |
Automatic X/Y/Z offset calibration |
Connectivity |
USB Serial or USB Flash Drive with Included 4gb Flash Drive |
Included Tool Head |
HS+ Tool Head | 2.85 mm | Hardened Steel | 1.2 mm |
Extruder/Hot End |
E3D Titan Aero |
Nozzle Diameter |
1.20 mm |
Nozzle Material |
Hardened Steel |
Nozzle Temperature |
Up to 290 C (554 F) |
Print Surface |
Modular Heated Borosilicate Glass/PEI |
Maximum Print Bed Temperature |
Up to 120 C (248 F) |
Print Bed Heat Up Time |
From 18 C to 100 C (64 F to 212 F) in 10 minutes. 45 seconds |
Layer Resolution |
0.6mm – 1.0mm (0.027″”-0.039″”) |
Calculated XYZ positional resolution |
10. 10. <1 micron |
?
Materials?
Filament Diameter |
2.85 mm |
Supported Materials |
Open filament system?compatible with PLA. ABS. Nylon. Polycarbonate. Carbon Fiber Reinforced Blends. TPU 85A & 95A (Flexible). PETG. PETT. Copolyester. PVB (Polycast). PVA. HIPS. and many more 3rd party filaments. |
?
Physical Dimensions?
Boxed Unit Weight |
20.86 kg (46 lbs) |
Unit Weight |
16.78 kg (37 lbs) without filament spool |
Boxed Dimensions |
88.9 cm x 30.48 cm x 66.04 cm (35 in x 12 in x 26 in) |
Dimensions with 1kg Filament Spool |
83 cm x 71 cm x 52 cm (32.67 in x 28 in x 20.47 in) |
?
Software
Operating System Compatibility |
GNU/Linux. Mac. Windows |
Recommended Software |
Cura LulzBot Edition Version 3.2 or newer |
Firmware |
Marlin |
Supported File Types |
.stl. .obj. .x3d. .3mf. .png. .jpg |
?
Electrical?
Power Requirements |
100VAC-240VAC. 50Hz-60Hz. 3.2A max |
Output |
24VDC. 500 watts. 21 amps |
Power Supply |
PMC-24V150W1AA |
Power Cable |
IEC cord. C13 to region-specific connector |
?
?
?
?
?
?
