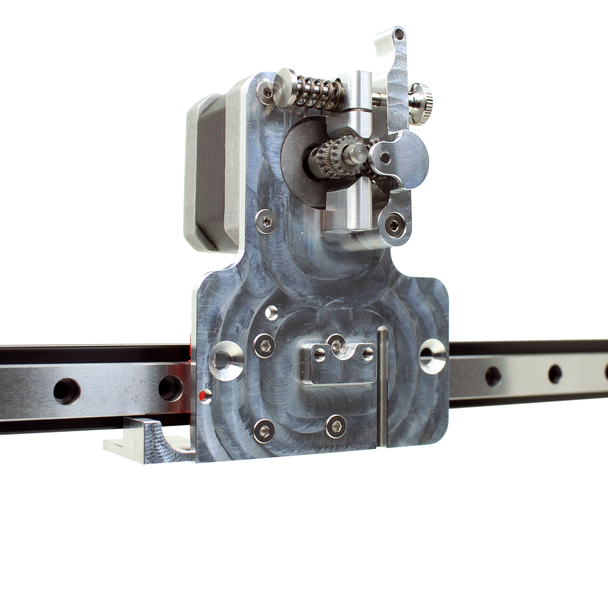

Micro Swiss Direct Drive Extrude for Linear Rail System

Micro Swiss Direct Drive Extruder configured for Linear Rail System

• No modification required. simple plug and play
• No printed brackets or sandwiches

Features:

• Dual-drive train
• Hardened tool steel. CNC precision cut gears
• Adjustable filament grip
• Easy filament loading
• Short. highly constrained filament path
• Prints flexible filaments with high speed and accuracy
• Outstanding extrusion control
• Lightweight aluminum body

Fits:

• Printers with?MGN12 400mm Linear Rail Guide with MGN12H Carriage Block
• Only for printers with bottom belt?mounting position

What’s in the box?

• Stepper motor.?Linear Railand?Carriage Block are NOT included
• 1x Micro Swiss All Metal Hotend(If option selected)
• 1x Main Extruder body
• 1x?Linear Rail mounting bracket
• 1x Extruder Lever
• 1x Spring Pin
• 1x Spring
• 2x Gears
• 1x Tension Knob
• 1x Shoulder Pin
• 1x Extension Cable
• 3x M3 x .5 x 6mm Motor Mounting Screws
• 4x M3 x .5 x 8mm Linear Rail?bracket?mounting screws
• 2x M3 x .5 x 10mm?Screws
• 2x M3 x .5 Nuts
• 5x Zip Ties
• 1x Printed Bracket
• 1x Beveled Capricorn Liner

Manufacturer’s Part Numbers:
With Hotend: M2605
Extruder Only: M2606
