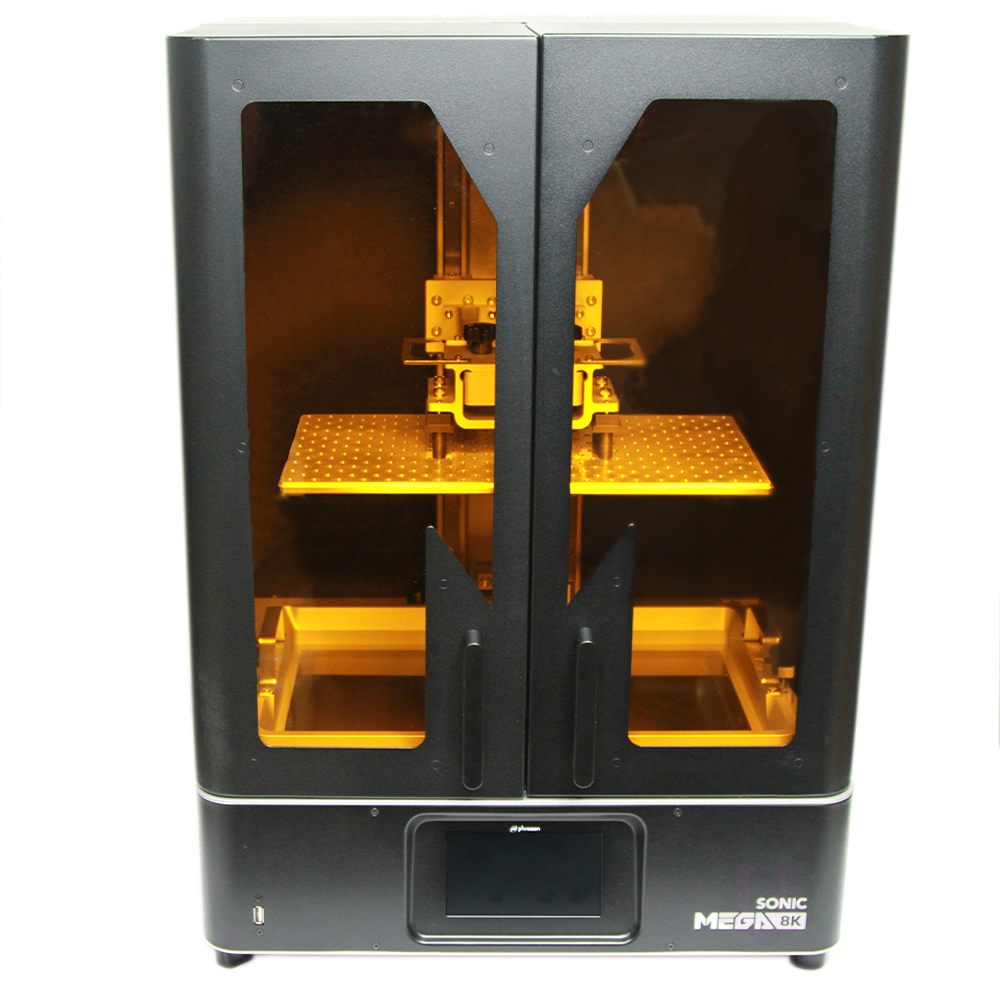

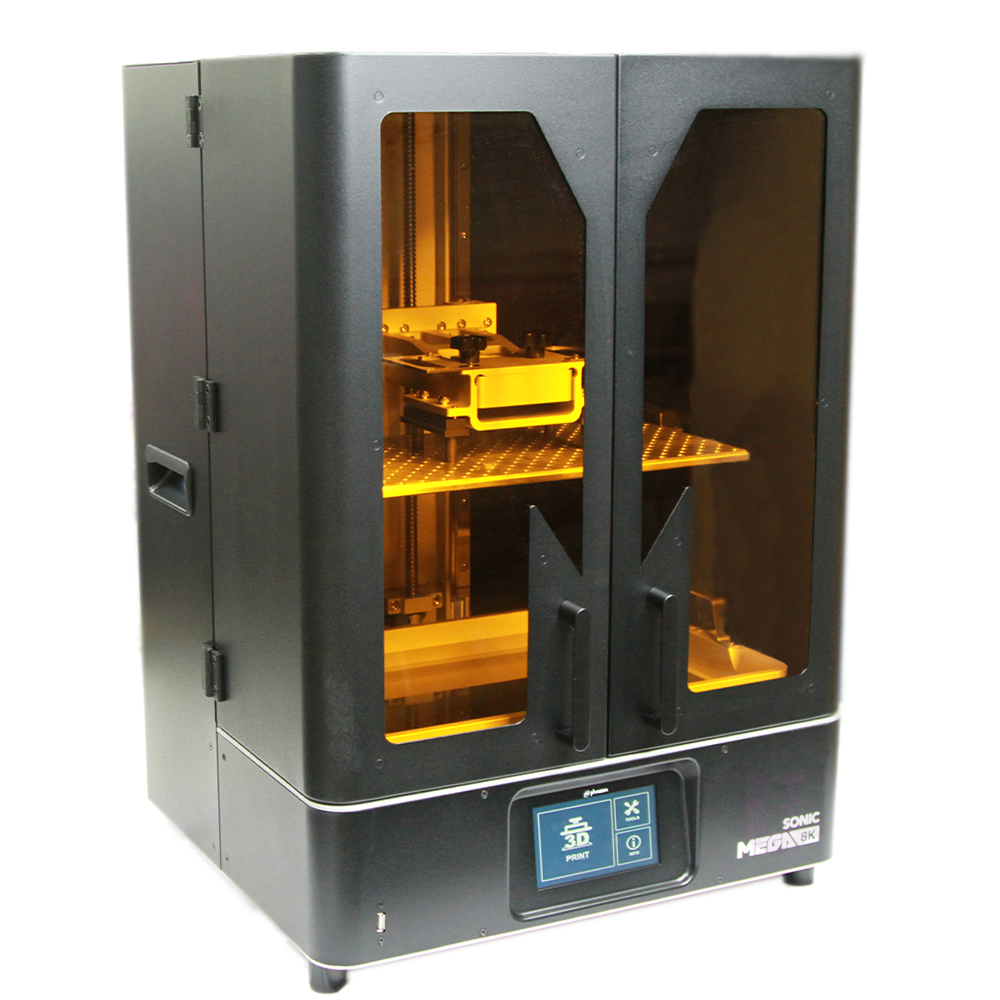

Phrozen Sonic MEGA 8K (Giant) Resin Printer

Phrozen – Sonic Mega 8K – LCD 3D Printer

The Phrozen Sonic MEGA 8K has been discontinued and replaced with the new and improved Phrozen Sonic MEGA 8K V2

? Prints with 8K Quality – The Ultimate Resolution

? The Largest Printing Area on the Market

? Full Metal Exterior

?

?

Phrozen’s most daring and audacious piece of work is finally here: Sonic Mega 8K. Over the past year. we’ve put in a lot of resources and developed this for those who are truly passionate about bringing their most insane ideas to life. In the past. printing out large models meant compromising on print quality. If anyone was interested in printing out large-scale & detailed models. that meant printing out multiple batches of 3D models and assembling them together.

Not anymore. Sonic Mega 8K breaks every single limitation for commercial 3D printing. You can now have both size and quality in one print. at the same time. From regular table sized ogres to a thousand army soldiers. mega-sized terrain that covers your whole table. or even body armor for festivals such as Halloween. Sonic Mega 8K simply prints out all your creations with stunning 8K resolution.

Specifications:

• System: Phrozen OS

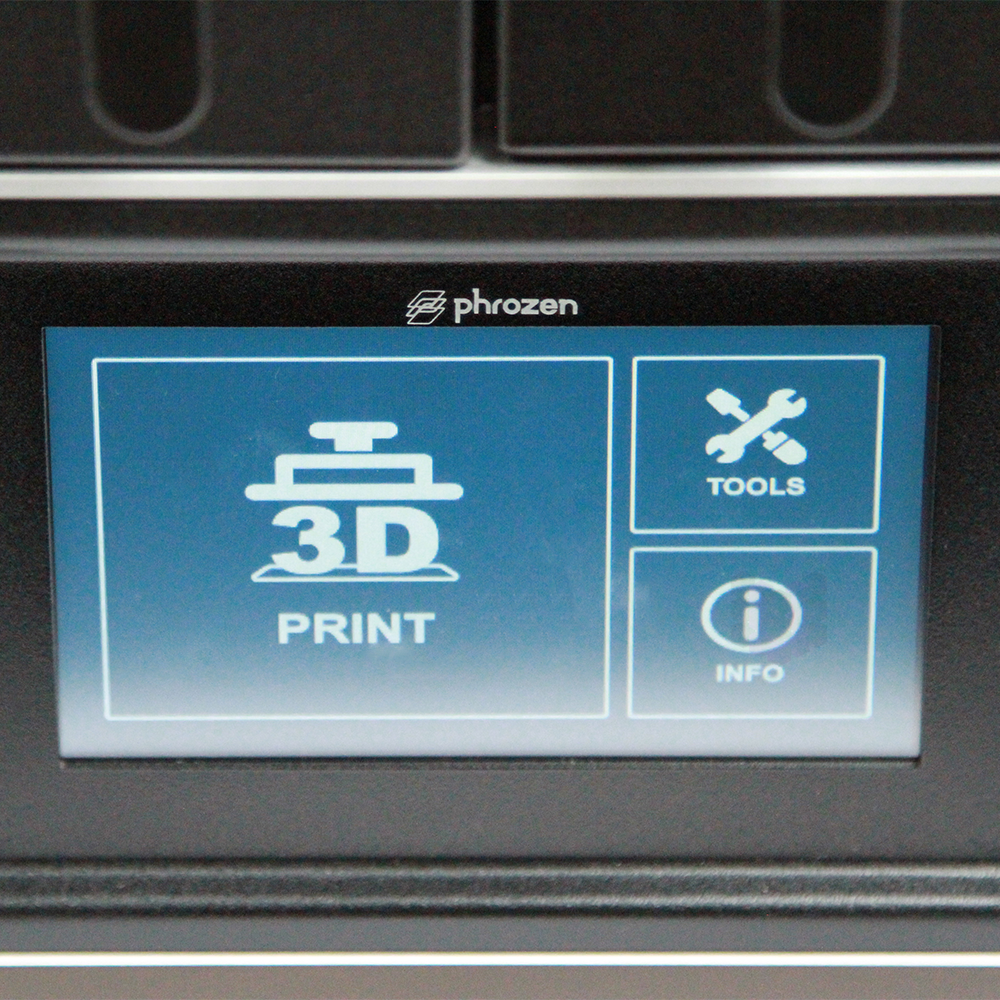

• Operation: 5″” in Large Touch Panel
• Slicer Software: CHITUBOX V1.9.0 or above
• Connectivity: Front USB Port | Ethernet
• Design: Technology Resin 3D Printer – LCD Type
• Light Source: 405nm ParaLED Matrix 3.0
• XY Resolution: 43 m
• Layer Thickness: 0.01-0.30 mm
• Maximum Printing Speed: 70 mm/hr
• Power Requirement: AC100-240V~50/60Hz
• Printer Size: 47.5 x 40 x 68 cm
• Print Volume: 33 x 18.5 x 40 cm
• Printer Weight: 35 kg

8K Printing Capabilities

Sonic Mega 8K trumps all other 3D printers on the market by showcasing striking details at 43 m producing 3D models that are almost twice as detailed as other large-scale 3D printers.

15 Mono-LCD Screen

Sonic Mega 8K comes with the largest Mono-LCD printing area on the market with 15 . In comparison. the largest printing area was previously only 13.3 .

Huge Printing Volume

The largest XY printing area with a 40cm tall Z-axis. enabling you to print significantly larger models in one sitting.

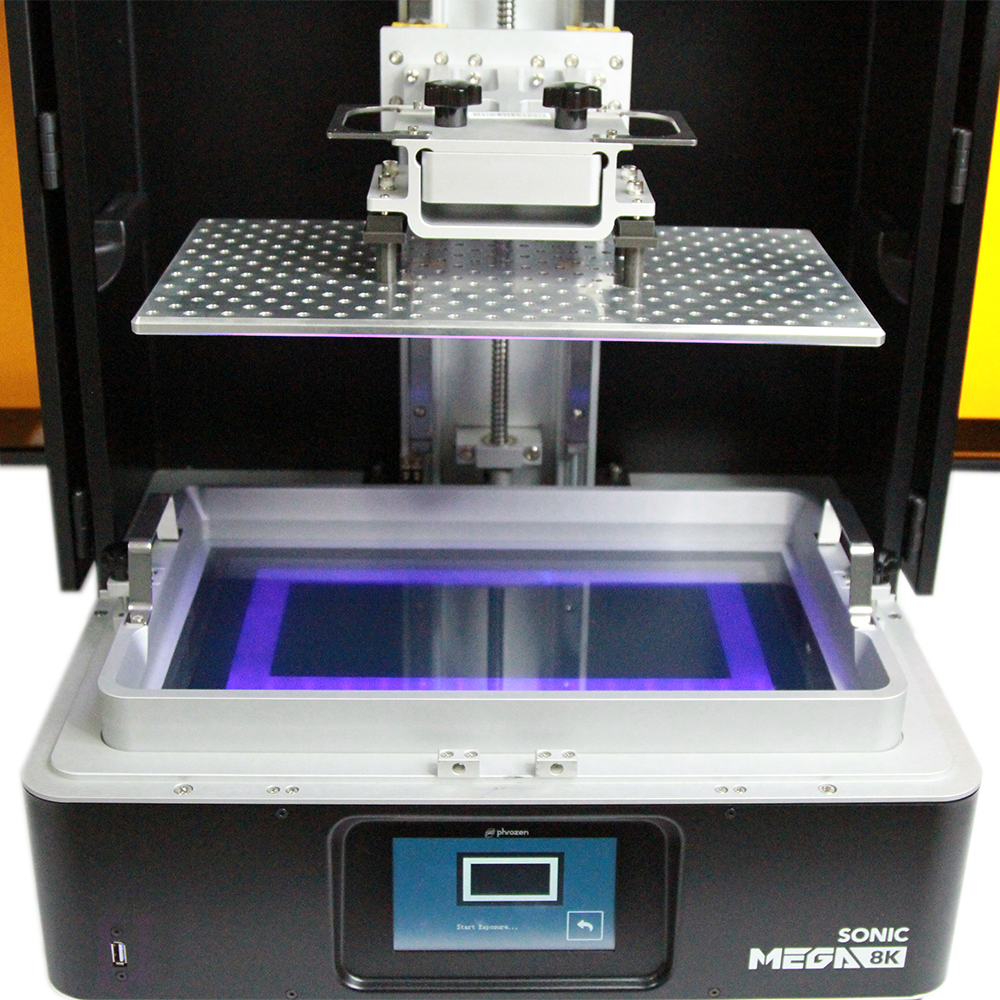

Dual Linear Rail & Ball Screw Design

For an ultra-stable Z-axis. Sonic Mega 8K adopts this specific design so that large and heavy objects can be printed with no wobbling.

Full Metal Exterior

Phrozen Sonic Mega 8K is made completely of metal. This strengthens the entire structure. making it stronger. and more sustainable for long-term usage.

Full Integration with CHITUBOX

Supported by CHITUBOX slicer software system. providing you with the ideal settings to print out models with the best details possible.

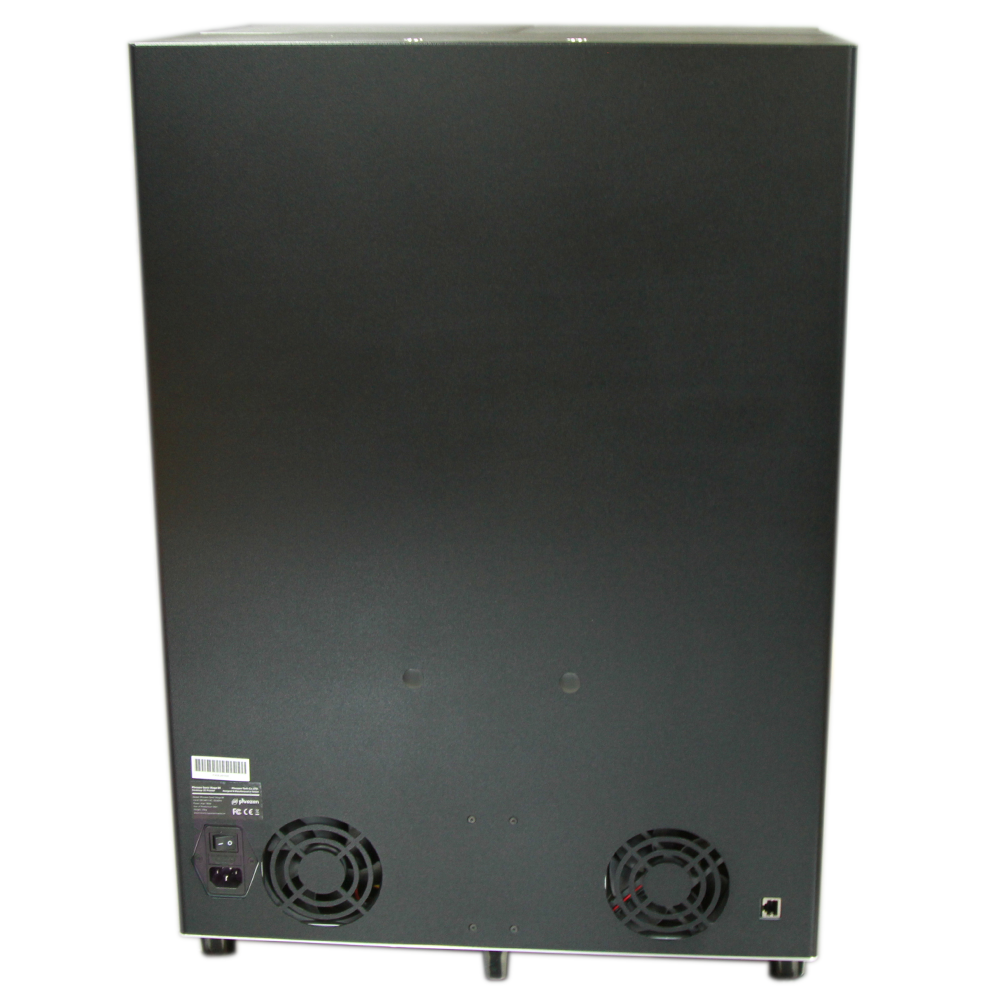

Multi-Fan Cooling System

Say goodbye to overheating as Sonic Mega 8K comes with 2 fans that work to release excess heat from the device.
