Phrozen Sonic Mighty 14K Revo LCD 3D Printer – Pre Order

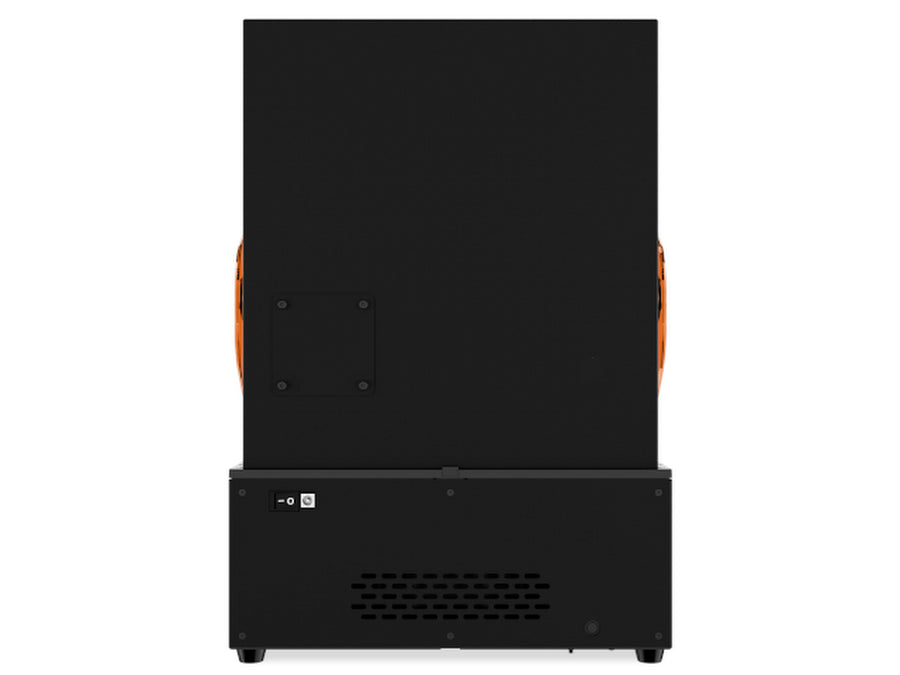

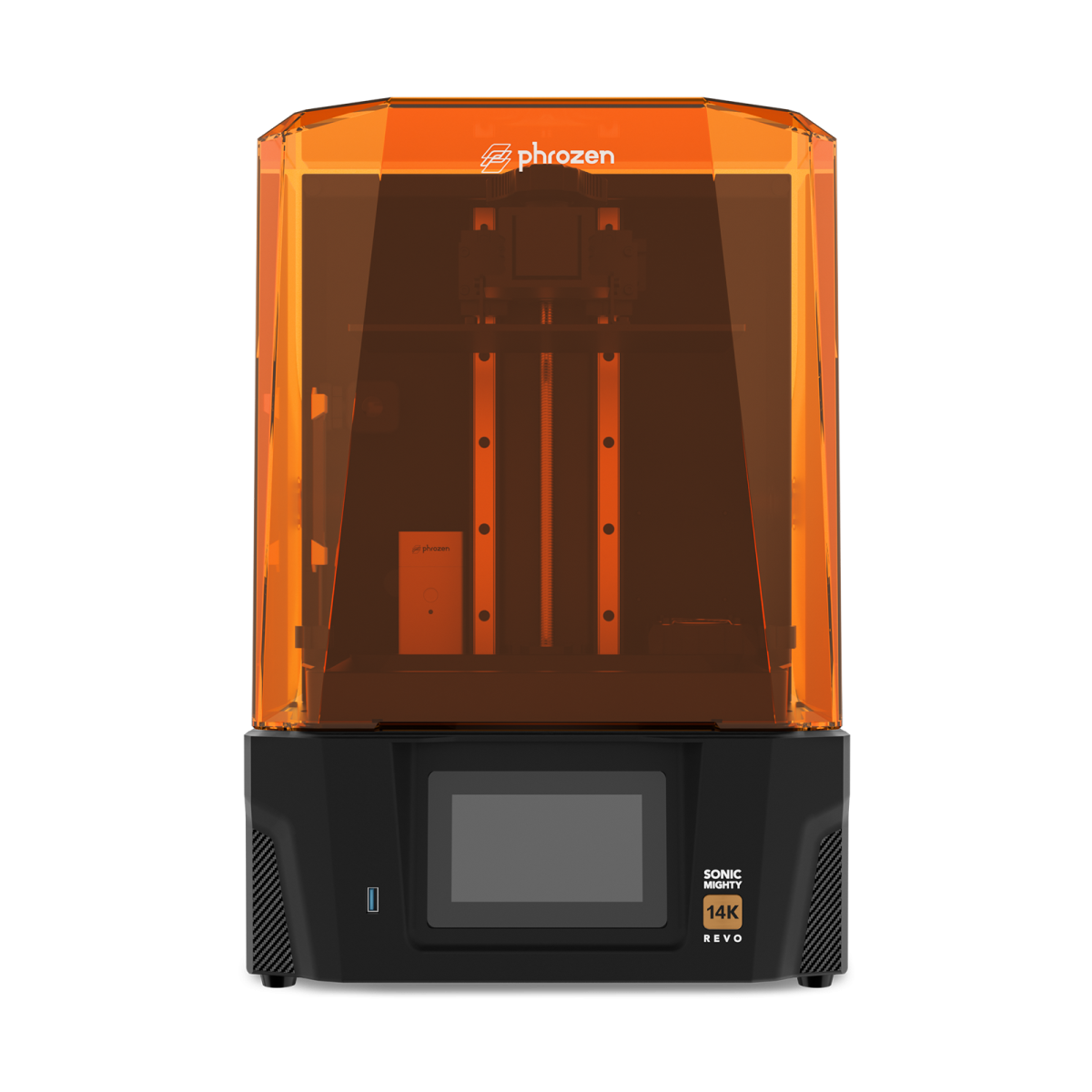

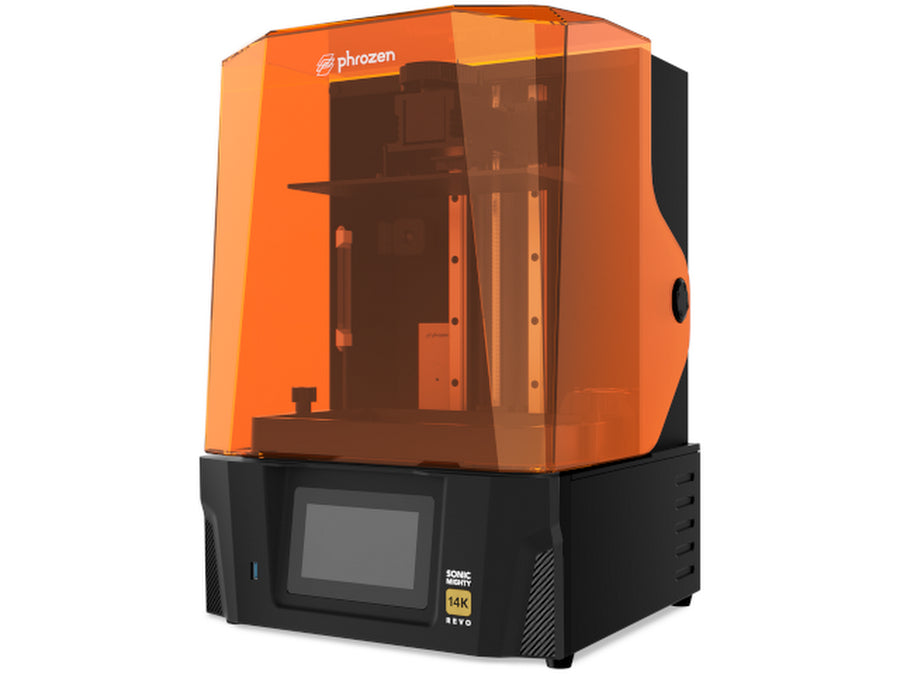

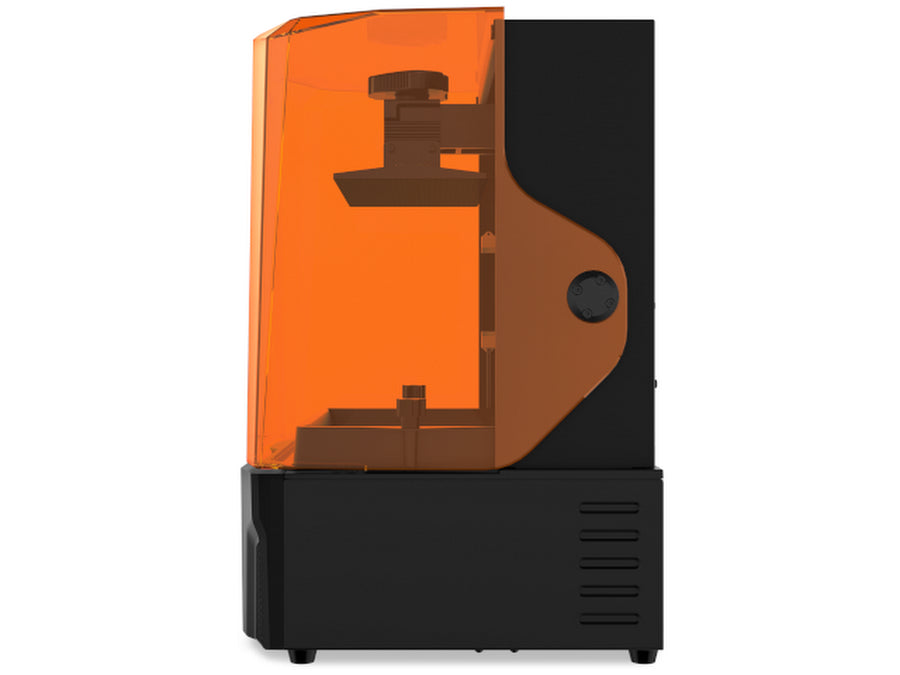

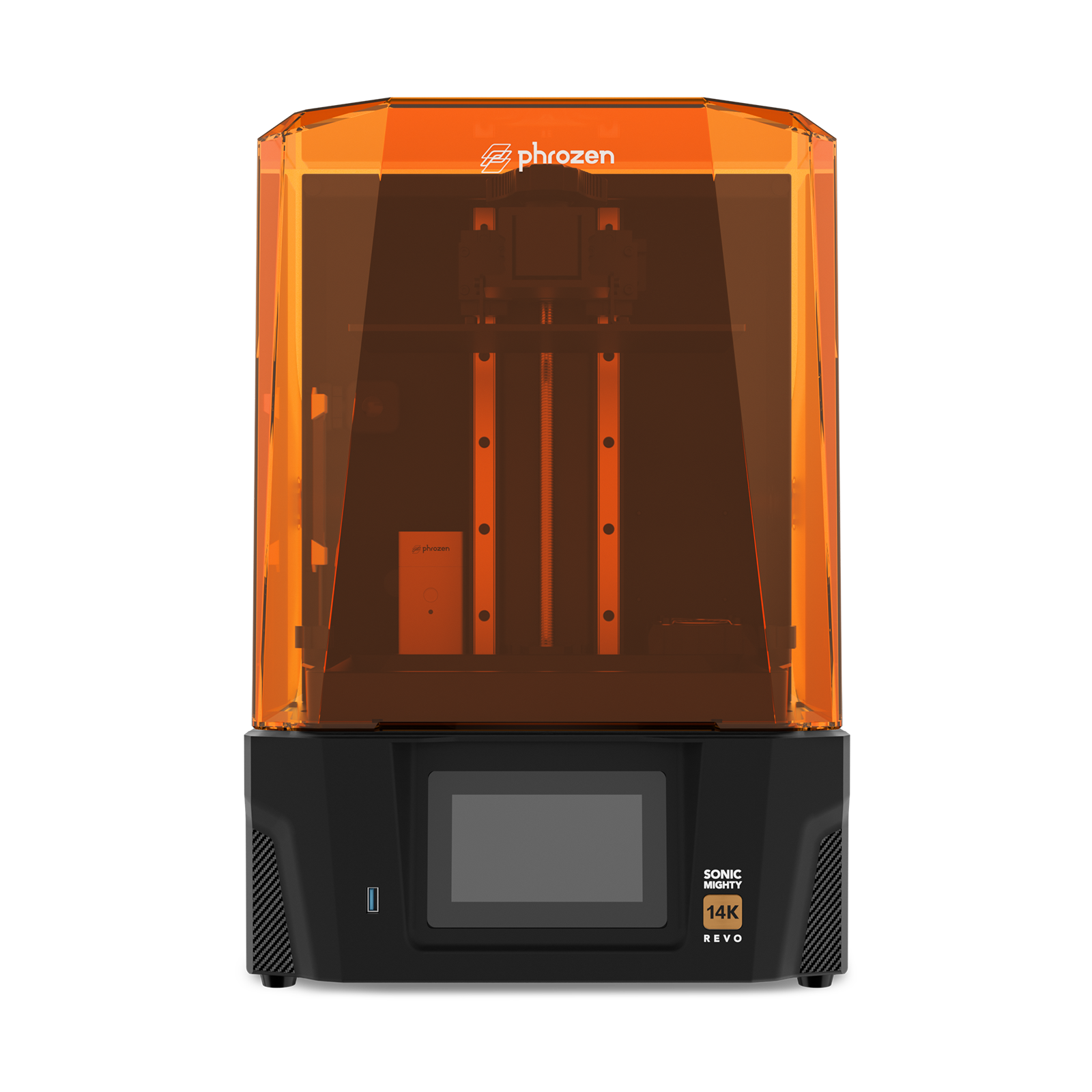

Sonic Mighty 14K Revo LCD 3D Printer

A Smarter Printer For A Smart Workflow

Introducing the Phrozen Sonic Mighty 14K REVO. a revolutionary resin 3D printer designed to redefine precision and productivity in the world of 3D printing. With an impressive resolution of 14K. this cutting-edge printer delivers unparalleled detail. allowing you to create larger models with extraordinary accuracy. Compact yet powerful. the Sonic Mighty 14K REVO strikes the perfect balance between size and performance. Equipped with advanced features such as auto-leveling. residue detection. and failure detection. this printer ensures seamless and hassle-free printing every time. Plus. its compatibility with the Phrozen Pump & Fill Connector enhances efficiency and convenience. Experience the future of 3D printing with the Phrozen Sonic Mighty 14K REVO.

Some key features of the Phrozen Sonic Mighty 14K REVO Resin 3D Printer:

• Plug-in Air Purifier System USB-powered air purifier system for a comfortable printing environment.
• Phrozen GO Camera App Check printing progress remotely with camera capture monitoring.
• Pump & Fill Connector Compatible with the Phrozen Pump & Fill automated resin feeder.
• Exhaust Vent Connect your printer with an external air ventilation or large air purifier system for safe printing environment.
• Built-in Heater Maintain printing temperature at an ideal 30 C for higher success rate.
• Sealed Motor Structure Prevent any resin leakage from seeping into the printer’s interior.
• Optimized LCD Replacement Setup Unplug LCD ribbon cable without removing the front shell. making future LCD replacement more convenient.

Sonic Mighty 14K Revo Specs:

• System: Phrozen OS
• Operation: 5″” in Large Touch Panel
• Slicer Software: CHITUBOX V1.9.6 and above (or others)
• Compatible File Format: .CTP. .PRZ
• Connectivity: USB | Wi-Fi
• Built-in Memory: 8.0 GB
• Design: Technology Resin 3D Printer – LCD Type
• Light Source: Linear ProjectionLED Module
• LCD Specification: 10.1″” 14K Mono LCD
• Release Film: PFA(nFEP) Film
• XY Resolution: 16.8 x 24.8 m
• Layer Thickness: 0.01-0.30 mm
• Average Printing Speed: 450 layer/hr
• Power Requirement: 100 – 240V AC; 50-60Hz
• System Power: Max 240 W
• Printer Size: 35.3 x 34.5 x 51.7 cm
• Print Volume: 22.3 x 12.6 x 23.5 cm
• Printer Weight: 18 kg

*All specifications have been tested in a laboratory. Please note that certain specifications may be subject to change.

Skip the Hassle. Say Bye-Bye to the Manual

Experience the most reliably accurate detection system with Phrozen’s patented 3-point piezoelectric sensor.

Smart Residue Detection

This smart sensor helps prevent LCD damage by notifying you to stop printing once it detects any foreign particles upon curing the first layer.

Smart Failure Detection

Sonic Mighty Revo will promptly detect any possible abnormalities during the printing process and swiftly inform you to ensure a successful print.

Keep It Under Control Even on the GO

Monitor your print on the go or stop printing upon the earliest detection of failure. all from the palm of your hand.

Always Start Right Without the Hassle

Calibrate the Z-axis with just a press of a single button thanks to its automatic zero-point detection sensor.

Maintain Perfect Temperature Throughout Printing

Enhance success rates by keeping your resin printing at the most optimum temperature and viscosity.

Ensuring an Odor-Less Printing Experience

Adsorb resin fumes directly within the printing enclosure. preventing the leak of odor to your printing area.

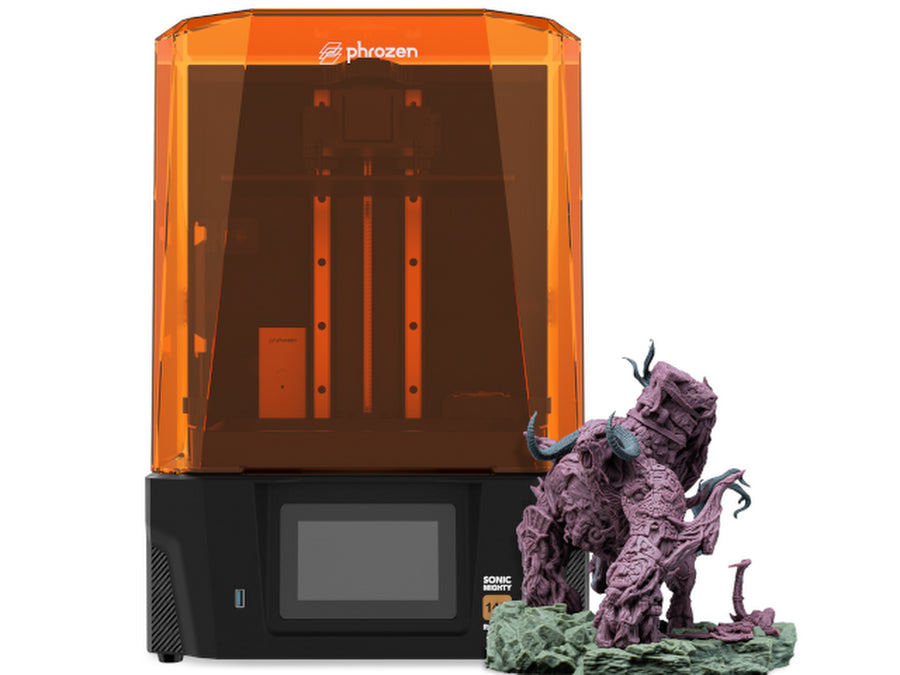

Easy to Print Amazing Details with Sonic Mighty 14K REVO
