Shaper Origin

Shaper Origin Gen2

Elevate Your Craft

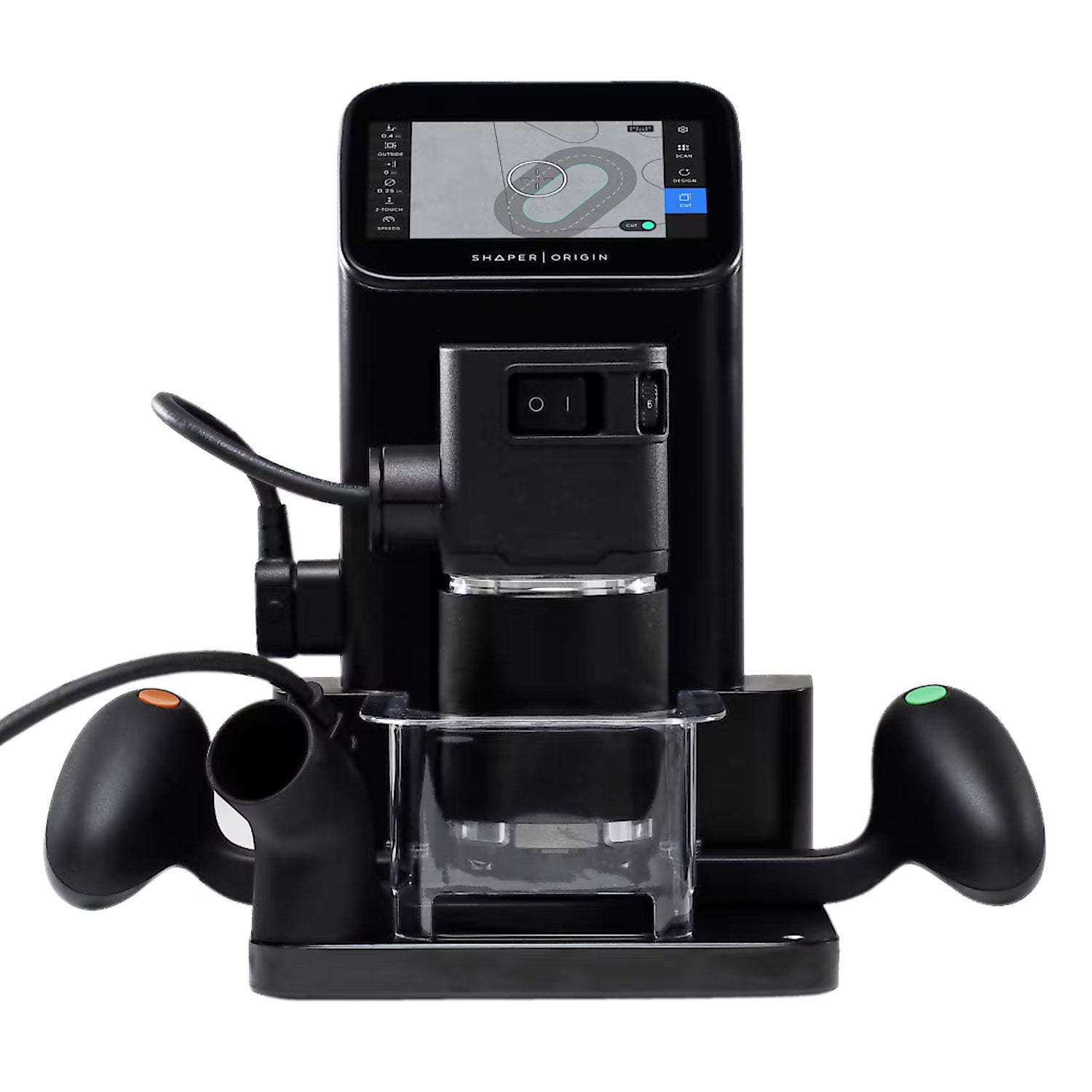

Shaper Origin is an easy-to-use. handheld CNC router providing portable precision cutting. Work with unparalleled accuracy. flexibility & efficiency.

Bring digital precision to the craft of woodworking

Work hands on with unparalleled accuracy. flexibility and efficiency.

Combine Origin with Shaper Workstation to cut mortise and tenons. box joints. and other custom joinery with ease and precision.

The vertical and horizontal workholding capabilities of Workstation allow for a range of different projects and the ability to cut tenons at any angle from 0° to 45° with confidence.

Combine Origin’s Box Joint Basic Extension with Workstation to cut precise box joints with ease.

Bring Origin to the job and work at any scale. Install virtually any hardware or inlay. and route pockets with minimal setup and maximum repeatability.

Combine with Plate ?the universal template for Origin ?to work on smaller tasks from hardware installation to corner rounding.

Advanced Joinery

Add sophisticated elements and handcrafted details to solid wood projects and custom furniture.

Custom Signage

Bring text to life with personalized signage. large and small.

Install Hardware

Inlay hardware. cut mortises for door hinges. and make on-the-fly adjustments.

Keepsake Boxes

Bring your idea to life with easy-to-use design and layout tools. Route intricate joinery like this double dovetail box with Origin and Workstation.

Flooring

Create custom inlays. vents. repairs and patches. onsite with precision and efficiency.

Custom Instruments

Cut everything from profiles and pickups to fret inlays and make design adjustments as you work.

Touch screen

Capacitive multi-touch full-color LCD

Dust extraction port

Designed for the SM-1 spindle

Fits most standard 27mm & 36mm suction hoses.

120 VAC (60HZ)

Input Power

WiFi & USB

Connectivity

Over the air software updates
Transfer design files via ShaperHub
USB port allows easy offline transfer of design files

Brushed Motor Spindle

720 Watt (AC). 10.000 – 26.000 RPM with load-compensating speed control. Soft-start. over-temperature and over-load safety cut-offs.

Produced with Festool to Shaper specifications

1/4″” Collet

Ships installed

Accepts any commonly available
¼ ?shank router bits
??Collet sold separately

43mm / 1.7″”

Z-AXIS MAX Depth

Digitally adjustable depth-of-cut
Automated touch-off sensor

14.9lbs

Weight

12.04in

Height

8.94in

Depth

13.35in

Width

Tanos Systainer3

23.5 lbs (Origin packaged with accessories)
15 ½ ?W x 11 ½ ?D x 17 ?T

ShaperTape (ST1-150)

2 Rolls (150-feet each roll)
A single roll provides ample coverage for approximately one and a half standard
4′ x 8′ sheets of plywood

4mm T-Hex Wrench

For spindle removal

Router Bits

1/8″” Up-Spiral Bit
1/4″” Up-Spiral Bit
V60° Engraving Bit

19 mm Wrench

For loosening / tightening collet
