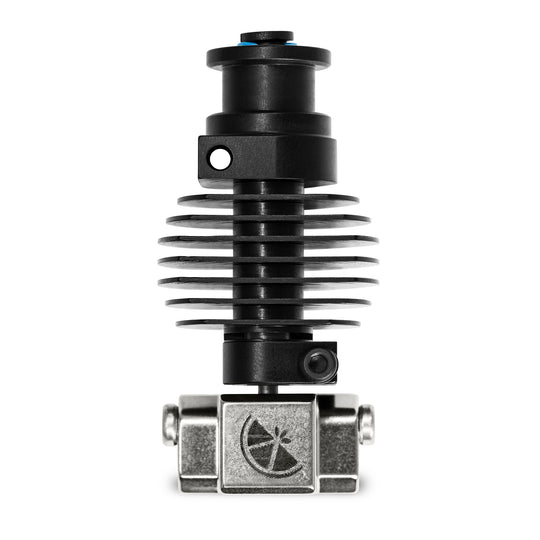

Slice Engineering Copperhead? Hotend

• 450 C temperature rating covers all printable thermoplastics
• Eliminates heat creep through Bimetallic Heat Break? technology
• Versatile mounting options
• Adjustable z-height for dual extrusion setups

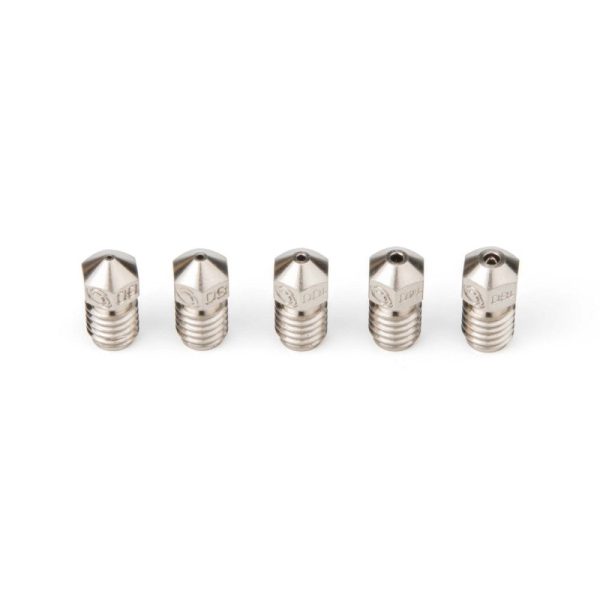

• Uses Rep Rap style nozzles (M6 x 1.0 threads with a 7 mm thread length and 12.5 mm overall length)
• Open source – published under a (CC-BY-SA 4.0) license

• Heat Sink (If purchasing the Groove Mount or Screw Mount G2 Models)
• Mounting Hardware
• Heat Break

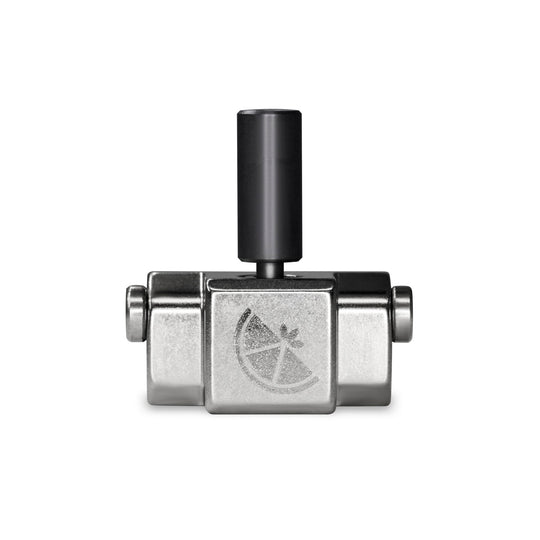

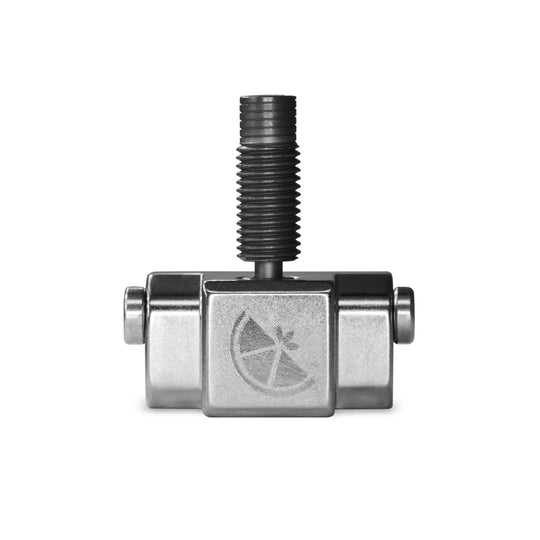

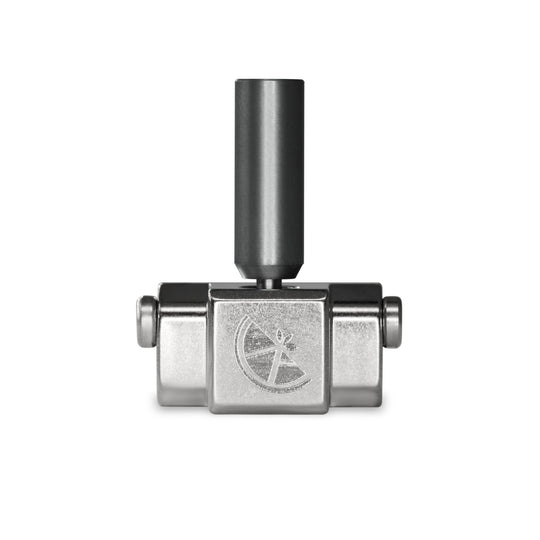

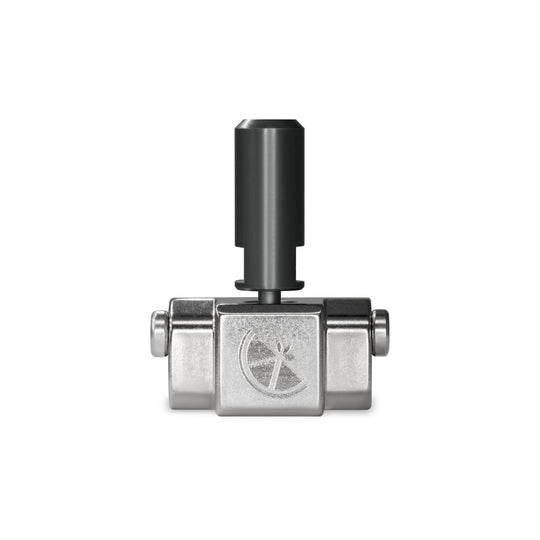

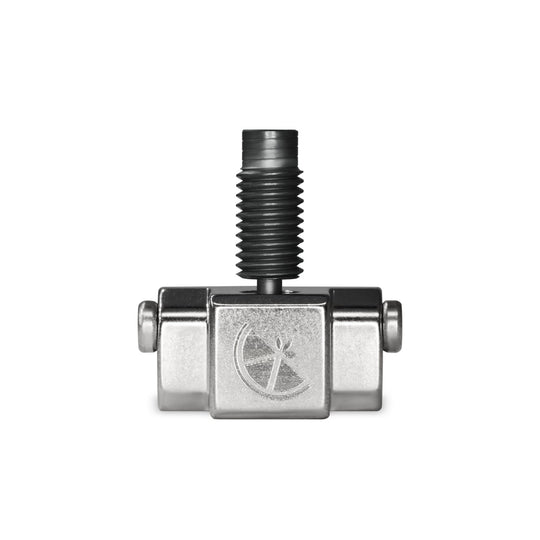

• Hot Block

The Mosquito? and the Copperhead? share Slice Engineering’s Bimetallic Heat Break? technology. are both designed for high performance applications. and are beautifully designed and machined in America; but the similarities end there. The Copperhead? is a traditional style hotend aimed at reducing heat creep and improving high temperature performance. It is the more budget conscious option. The Mosquito? has a radical design featuring a protective roll cage around the most thermally efficient heat break (85%!) available on the market. It allows for cold. one handed nozzle changes. Both options improve performance. so the choice is yours! Click here to check out the Slice Engineering Mosquito? Hotend or the Slice Engineering Mosquito? Magnum Hotend

Manufacturer’s Part Number:
Groove Mount – G2: B-CH-HO-0290-gro
Screw Mount – G2: B-CH-HO-0289-scr
Standard – G2: B-CH-HO-0291-sta
RepRap 1.75: B-CH-HO-0292-rep
MK8: B-CH-HO-0293-mk8
MK10: B-CH-HO-0294-mk1
C-E: B-CH-HO-0295-ceh
C-Pro Max: B-CH-HO-0296-cpm
