Snapmaker Artisan 3-in-1 3D Printer (Pre-Order ETA August)

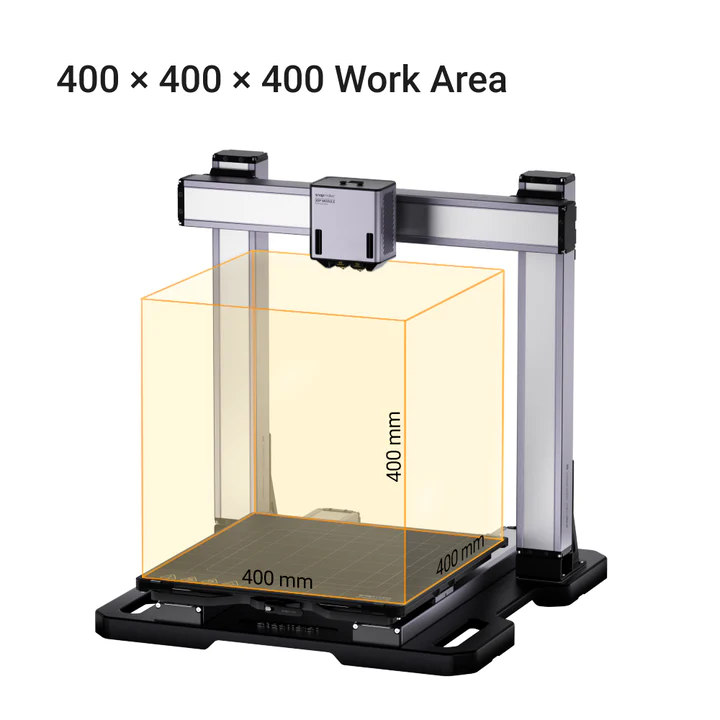

400 400 400 Work Area

Create big or multiple objects as you please in 400 mm 400 mm 400 mm large work area.

3D Printing

Laser Cutting

CNC Cutting

300 C Dual Extrusion 3D Printing

Dual Extrusion 3D Printing Module features a max. temperature of 300 C. letting you print with dissolvable and high-performance materials. with an outstanding dimensional accuracy of 0.1 mm.

Fast and Well

Thanks to the optimized transmission system and motion control algorithm. Artisan features 0.1 mm dimensional accuracy when printing at a high speed of 180 mm/s.

• Fine
• Normal
• Fast
• Extra Fast

Fine

40 mm/s Printing Speed

800 mm/s2 Acceleration

0.12 mm Layer Height

Normal

80 mm/s Printing Speed

1.000 mm/s2 Acceleration

0.16 mm Layer Height

Fast

120 mm/s Printing Speed

1500 mm/s2 Acceleration

0.20 mm Layer Height

Extra Fast

200 mm/s Printing Speed

2000 mm/s2 Acceleration

0.24 mm Layer Height

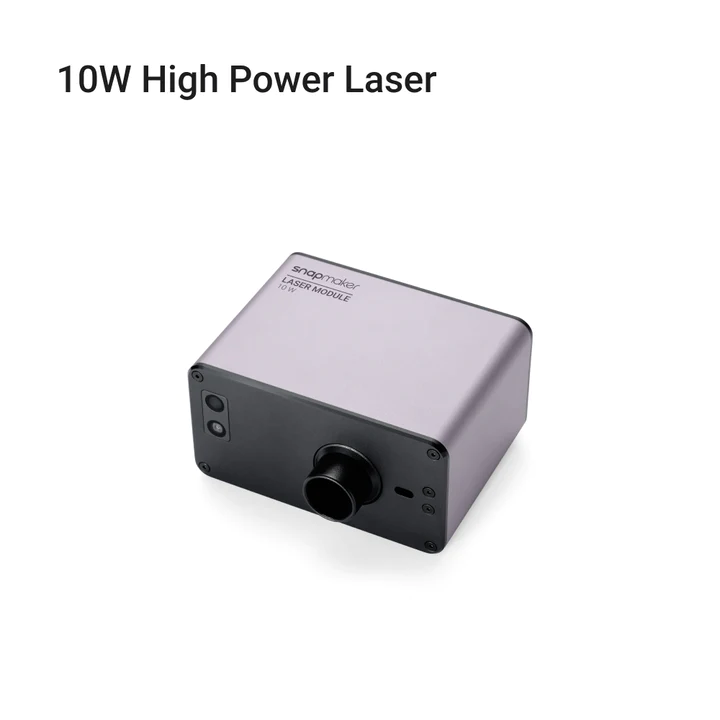

10W High Power Laser Engraving & Cutting

With a 0.05 mm 0.2 mm ultra-fine laser focus. Artisan can engrave at a speed as high as 6000 mm/min. while cutting through wood as thick as 8 mm in a single pass.

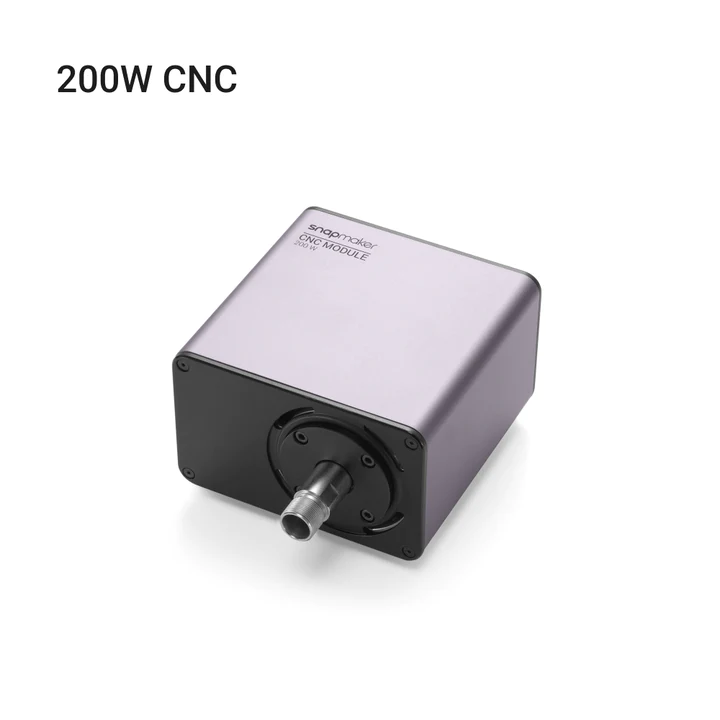

200W CNC Carving & Cutting

Compared with Snapmaker 2.0. the CNC module of Artisan has increased by 300% in power and 50% in maximum spindle speed. making it 6 times faster in machining on hardwood like beech.

Specifications

General

Dimensions (Machine)

580 mm 620 mm 634 mm

Dimensions (Machine & Enclosure)

665 mm 943 mm 705 mm

Weight

116.6 lbs (52.9 kg)

Package Weight

Box A: 76.7 lbs (34.8 kg)
Box B: 69.4 lbs (31.5 kg)

Supported Software

Snapmaker Luban. and third-party software

OS Supported by Luban

Windows. macOS. Linux

Data Transmission Methods

Wi-Fi. USB cable. USB flash drive

Extruder System

Independent Dual Extruders (IDEX)

General

Dimensions

189 mm 300 mm 191 mm

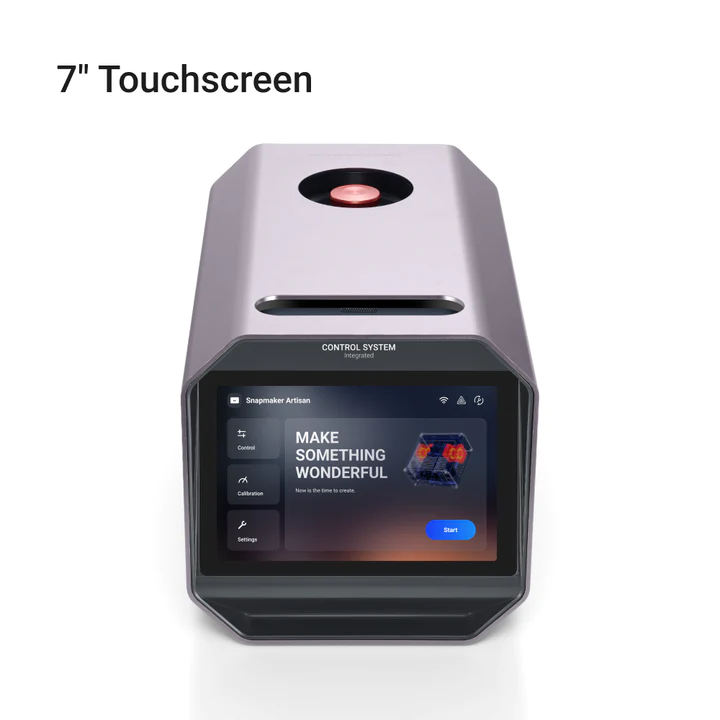

Touchscreen Size

7 inches

Power

300W + 450W

OS

Android

3D Printing

Work Area (W D H)

350 mm 400 mm 400 mm (Dual Nozzle)

Dimensional Accuracy

0.1 mm

Nozzle Diameter (Standard)

0.4 mm

Nozzle Diameter (Optional)

0.2 mm. 0.6 mm. 0.8 mm

Nozzle Material (Standard)

Brass

Nozzle Material (Optional)

Hardened steel

Max. Nozzle Temperature

300 C

Max. Recommended Printing Speed

180 mm/s

Build Plate

Double-sided PEI-coated Glass

High-temperature Zone (Inner Zone)

260 mm 260 mm

Max. Heated Bed Temperature (Inner Zone)

110 C

Max. Heated Bed Temperature (Outer Zone)

80 C

Supported Materials

PLA. ABS. ASA. PETG. TPU. Breakaway PLA. PVA. HIPS. Nylon. Carbon Fiber Reinforced Nylon. Glass Fiber Reinforced Nylon

Supported Formats

stl. obj

Laser Engraving and Cutting

Work Area (W D)

400 mm 400 mm

Power

10W

Laser Type

450 nm C460 nm Semi-conductor

Max. Engraving Speed

100 mm/s

Max. Cutting Depth (Paulownia)

8 mm

Operating Temperature

0 C C35 C

Laser Spot Dimension

0.05 mm 0.2 mm

Supported Materials for Engraving

Basswood. Paulownia. Pinewood. Plywood. Beech. Walnut. Bamboo. MDF. Painted Metal. Copper Clad Laminate. Tinplate. Stainless Steel. Anodized Aluminum. Dark Glass. Slate. Ceramics. Jade. Marble. Shale. Leather. Fabric. Canvas. Corrugated Paper. Cardboard. Plastic. Dark Acrylic (Blue excluded)

Supported Materials for Cutting

Basswood. Paulownia. Pinewood. Plywood. Beech. Walnut. Bamboo. MDF. Leather. Fabric. Canvas. Corrugated Paper. Cardboard. Plastic. Dark Acrylic (Blue excluded)

Supported Formats

stl. svg. png. jpg. jpeg. bmp. dxf

CNC Carving and Cutting

Work Area (W D)

400 mm 400 mm

Power

200W

Max. Spindle Speed

18.000 RPM

Max. Work Speed

50 mm/s (Beech); 33 mm/s (Acrylic)

Maximum Stepdown

2 mm (Beech); 1 mm (Acrylic)

Shank Diameter

0.5 mm C6.35 mm

Supported Materials

Hardwood (Beech. Walnut). Softwood. HDF. MDF. Plywood. Jade. Carbon Fiber. Acrylic. Epoxy Tooling Board. PCB

Supported Formats

stl. svg. png. jpg. jpeg. bmp. dxf

In the box

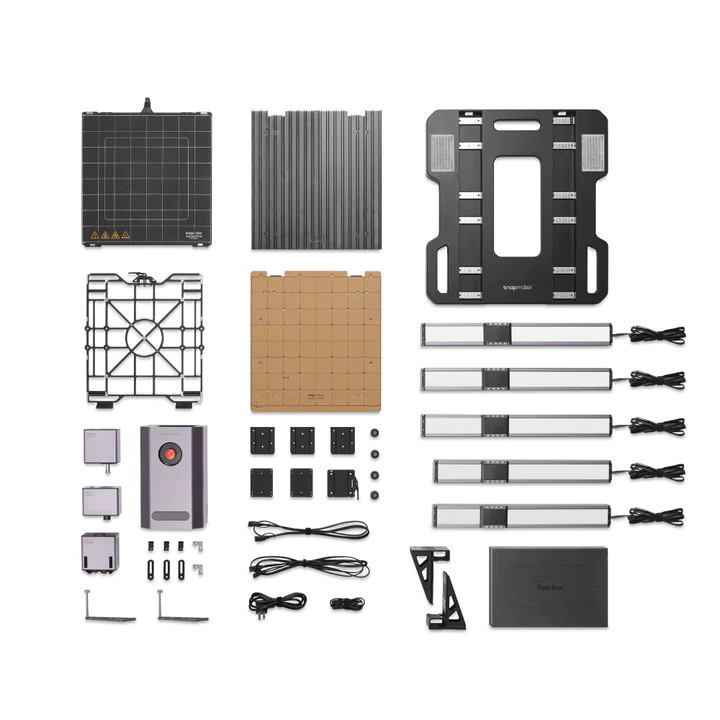

Box A:

Integrated Controller 1

Dual Extrusion Module 1

10W Laser Module 1

200W CNC Module 1

Toolhead Quick-swap Bracket 1

Tool Box 1

Z-axis Linear Module 2

X-axis Linear Module 1

Y-axis Linear Module 2

Base Plate 1

AC Power Cable 1

USB Cable 1

Filament Tube 2

Filament Tube Holder 2

M4 Wing Nut 4

Cable Clip 3

Filament Tube Clip 2

L Bracket 1

Filament Holder Base 2

Toolhead Cable 1

Heated Bed Cable 1

Enclosure Cable 1

Cable Collector 1

Hose 1

Hose Clamp 1

Base Fixture x 2

Cable Pass-through Fixture 1

Laser Material Fixture 4

Sealing Plug 4

Sealing Strip 1

Filament Holder Tube 2

CNC Safety Goggles 1

Calibration Card 1

Quick Start Guide 1

Wiping Cloth 1

Enclosure Screws

Machine Screws

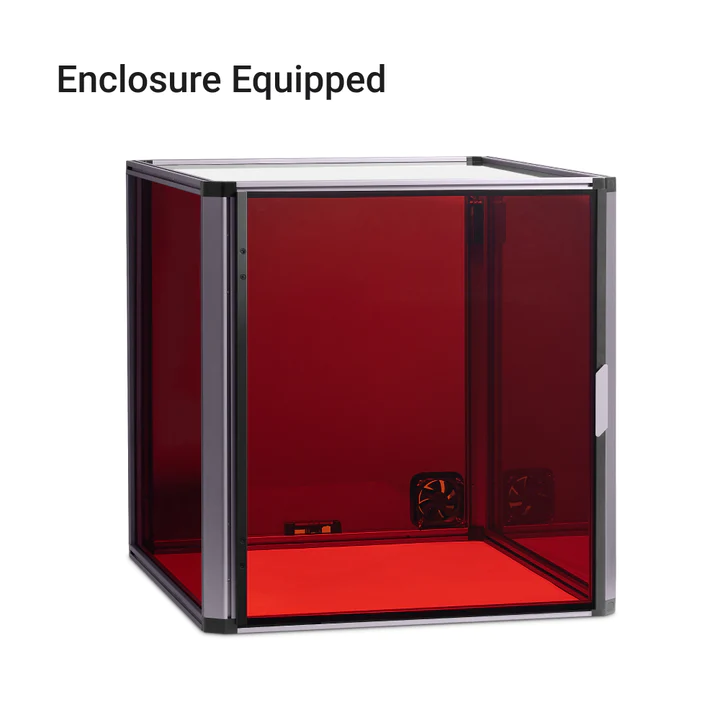

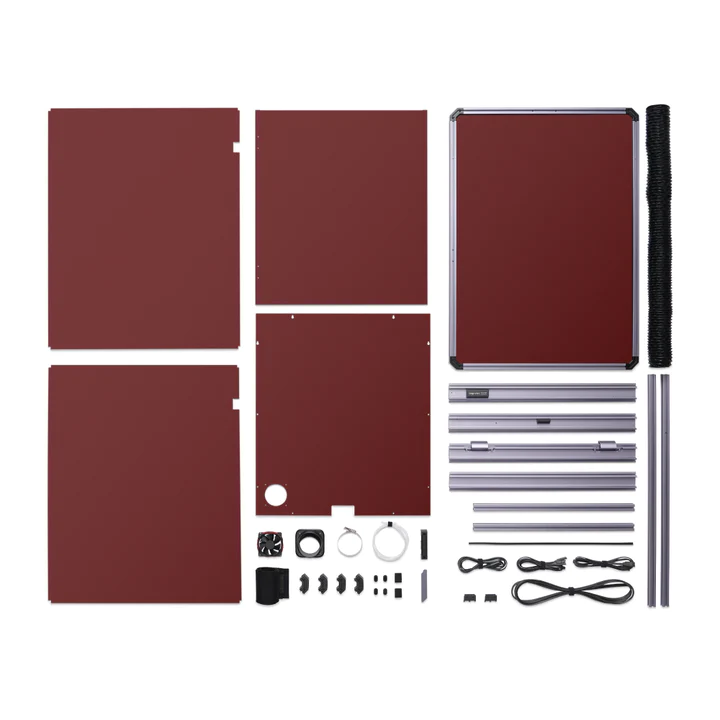

Box B:

Side Panel 2

Door Panel 1

Top Panel Kit 1

Back Panel 1

Exhaust Fan 1
