Snapmaker J1s High Speed IDEX 3D Printer

Fast and Forward.

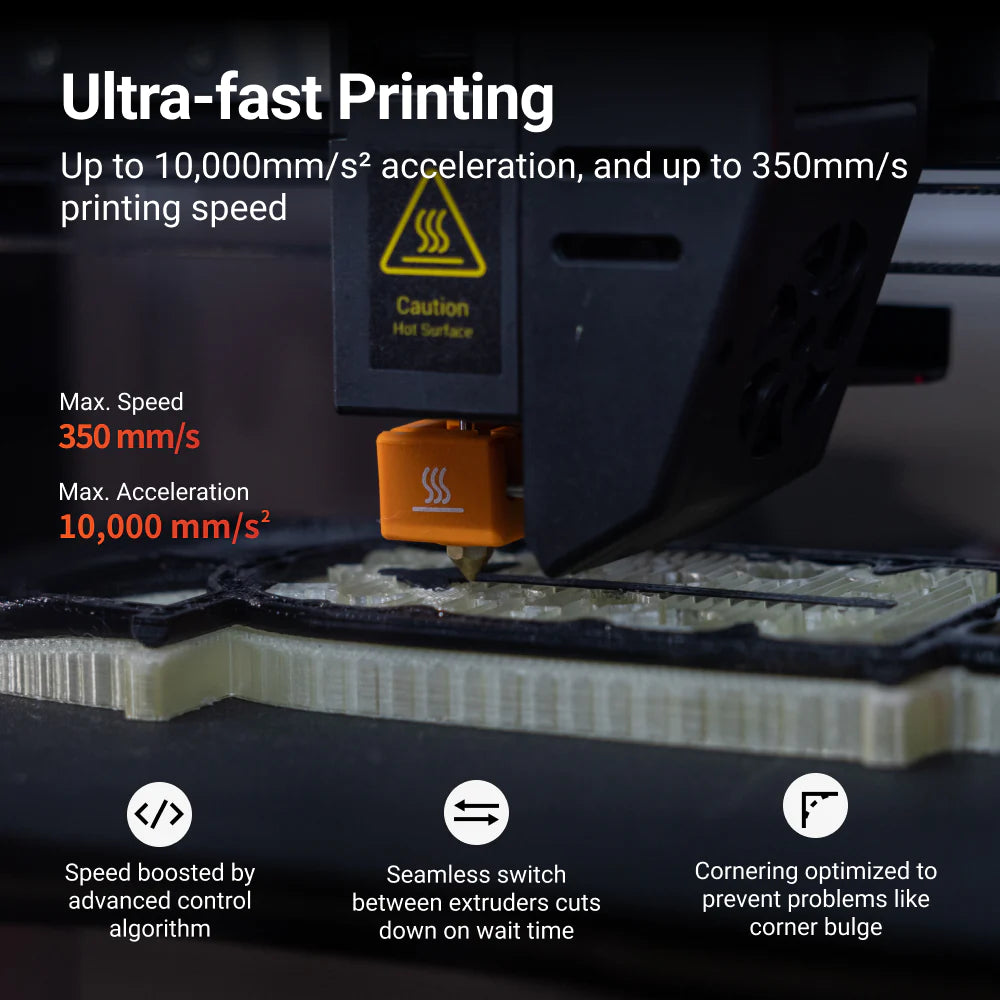

Max. Speed

350 mm/s

Max. Acceleration

10.000 mm/s

Speed Boosted by Advanced Control Algorithm.

Vibration Compensation

J1s brings you a top-of-class printing speed of 350 mm/s while ensuring a high resolution of prints. It is made possible by the optimization of the vibration compensation technology. This technology reduces the vibrations caused by high-speed movements. minimizing ringing to enhance print quality. With the maximum acceleration of 10.000 mm/s2. you can realize small models packed with details with efficiency.

Seamless Extruders Switching

During dual extrusion printing. the non-working extruder preheats while on standby. and starts printing right after the working extruder leaves. significantly reducing your waiting time.

Cornering Optimization

By analyzing the extruders’ moving directions ahead of time. J1s is able to prevent problems like corner bulge. delivering better print quality at corners.

Speed Ensured by Elaborate
Hardware Design.

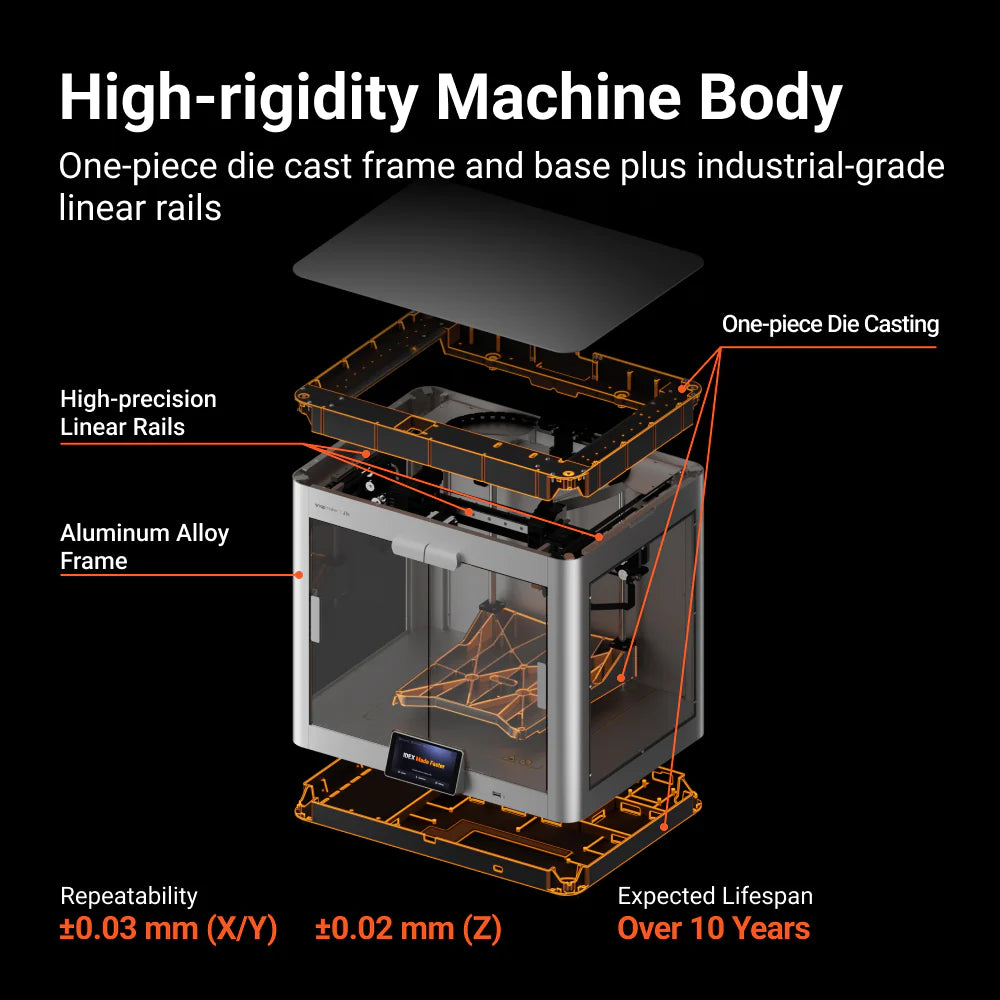

One-piece Die Casting

J1’s body comprises an upper frame and a base made by one-piece die casting. and four aluminum alloy bars. Making the body with just a few highly integrated parts an approach long adopted by the automotive industry facilitates precision assembly.

J1s is so rigid and reliable with minimal wobble and deformation possible that you can print large projects one after another for a long time and get all prints of uncompromising quality.

High-precision
Linear Rails

The industrial-grade linear rails are made by CNC grinding at the micron level. ensuring smooth and steady movements. A significant rise in precision. rigidity. and durability for you to savor a fast. accurate. and steady making experience.

Repeatability

0.03 mm (X/Y)

0.02 mm (Z)

Expected Lifespan

Over 10 Years

Aluminum Alloy
Frame

J1s inherits Snapmaker’s iconic all-metal design which users highly value for its rigidity and durability. It provides better heat dissipation with the main board and power supply spread out on the base and aluminum alloy as its main material. All electronic components well oiled. at your command.

Strong Print Cooling
System3

J1s has a strong print cooling system. comprising print cooling fans not only under the nozzles but also at the back panel. With a narrow fan duct blasting a wide area with air. the print cooling fan at the back can further cool your prints during high speed printing and lower the ambient temperature when printing materials like PLA.

IDEXcel in Dual-material Printing

Compared with a multi-material unit. IDEX dual-material printing requires less time in filament changing and creates less waste. Plus. IDEX offers the cleanest two-extruder solution that prevents cross-contamination. It creates a clean interface between two materials. embracing hassle-free removal and avoiding stains and weird blending along the seam.

Snap Removal. Smooth Finishes

Building and removing support can look like rocket science sometimes. but we’ve done the math for you Csteady support. clean interface. effortless removal. and minimal post-processing needed to maintain high dimensional accuracy.
See your model as it is. no less. no more.

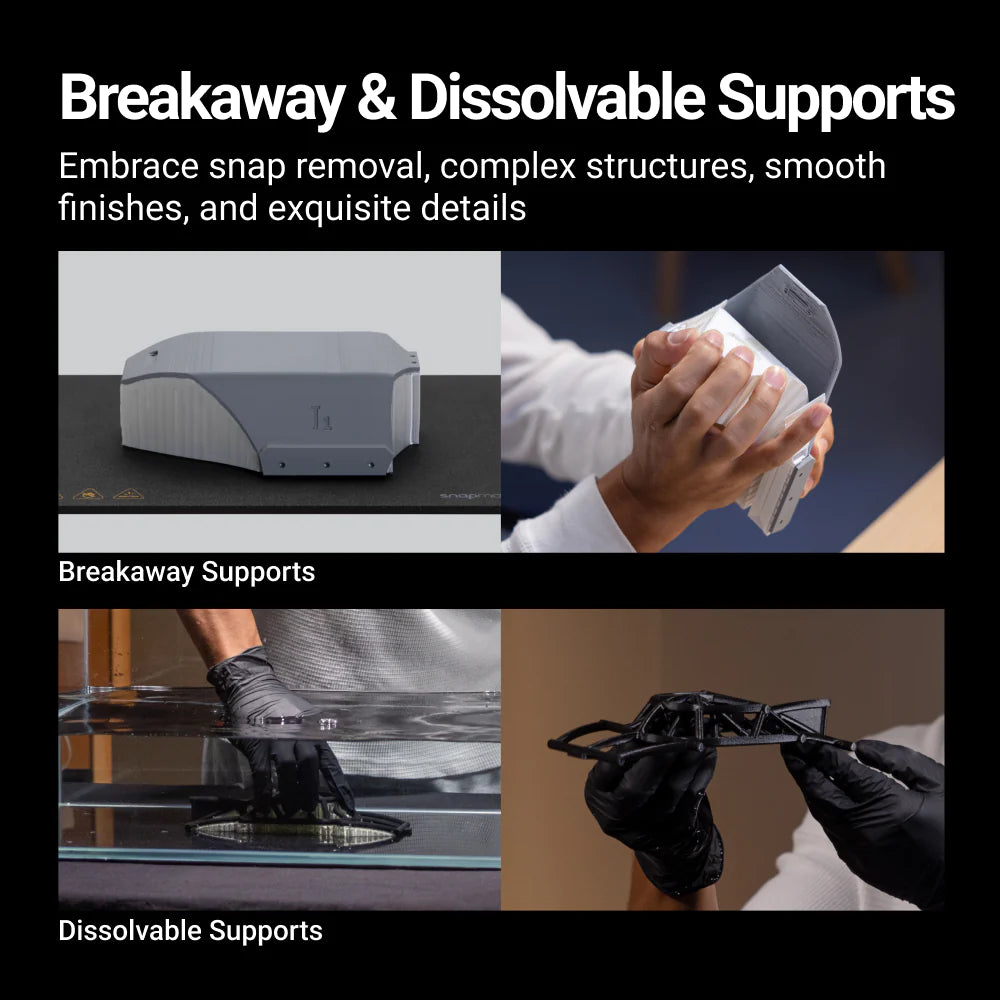

Breakaway Support

Breakaway filament offers the same support as normal materials but is much easier to remove without the need for further post-processing.

Dissolvable Support

J1s supports PVA and other dissolvable materials. Soak the print. and the supports dissolve. leading to a smooth surface and excellent dimensional accuracy. When you are looking for complex geometry. hollow structures. and exquisite details. this is for you.

1 + 1 > 2

Choose different settings for two extruders to maximize the performance of individual filaments.

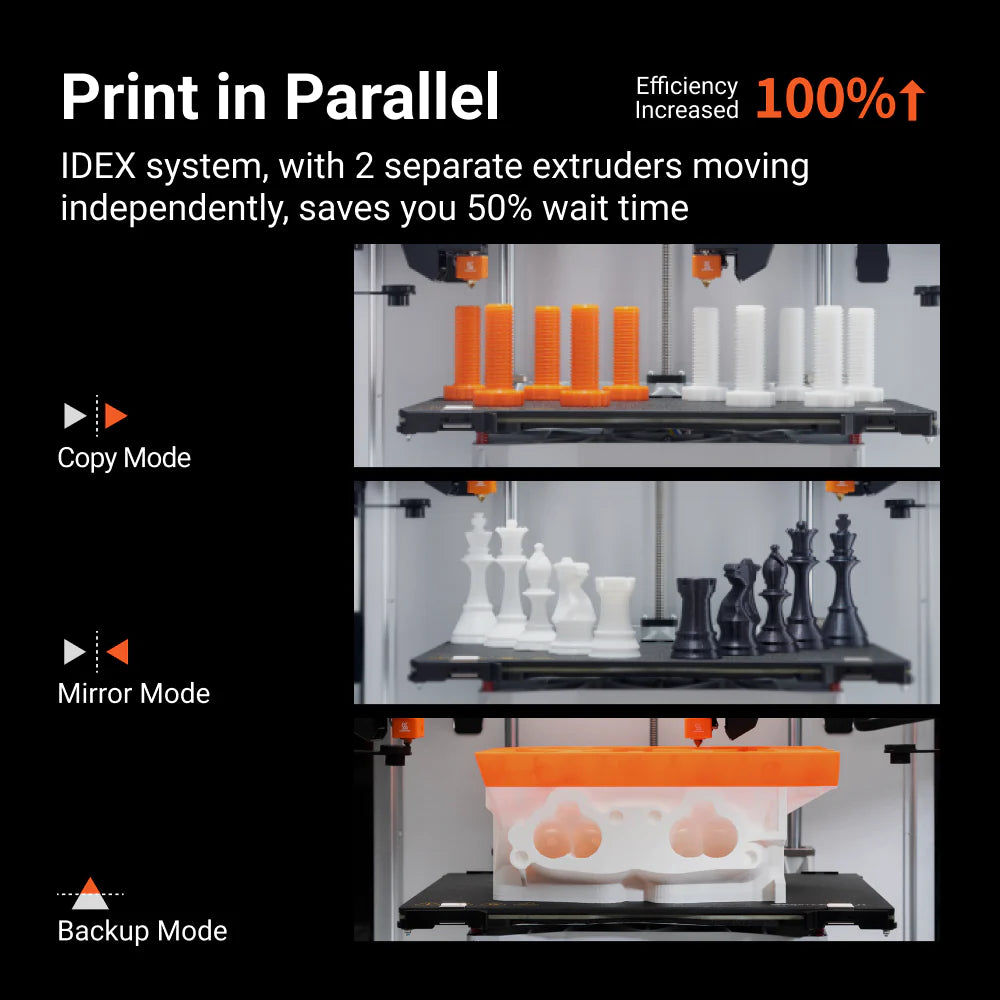

Print in Parallel

Halve your wait time. double your productivity. IDEX is the only extrusion system with two separate extruders moving independently on the X-axis. enabling you to run two prints simultaneously.

Copy Mode

Print two identical objects in one go. It is especially suitable for batch printing. empowering studios and enthusiasts. If one of the prints runs into an issue. you can stop that print without affecting the other. This mode is a lifesaver for a promised delivery on a tight schedule.

Mirror Mode

J1s directly mirrors your model and prints the original and the mirrored one in one go. For a symmetrical model. you can import half of it and print it in Mirror Mode to cut your wait time by 50%. perfect for quick drafts and concept models. Like in the Copy Mode. you can stop one print without affecting the other.

Always a Plan B for Ace Performance.

Backup Mode

Under Backup Mode. you print with one extruder while the other stands by. If the working extruder bumps into a hiccup. the stand-by one would take over the job seamlessly and still deliver a fabulous print to you.

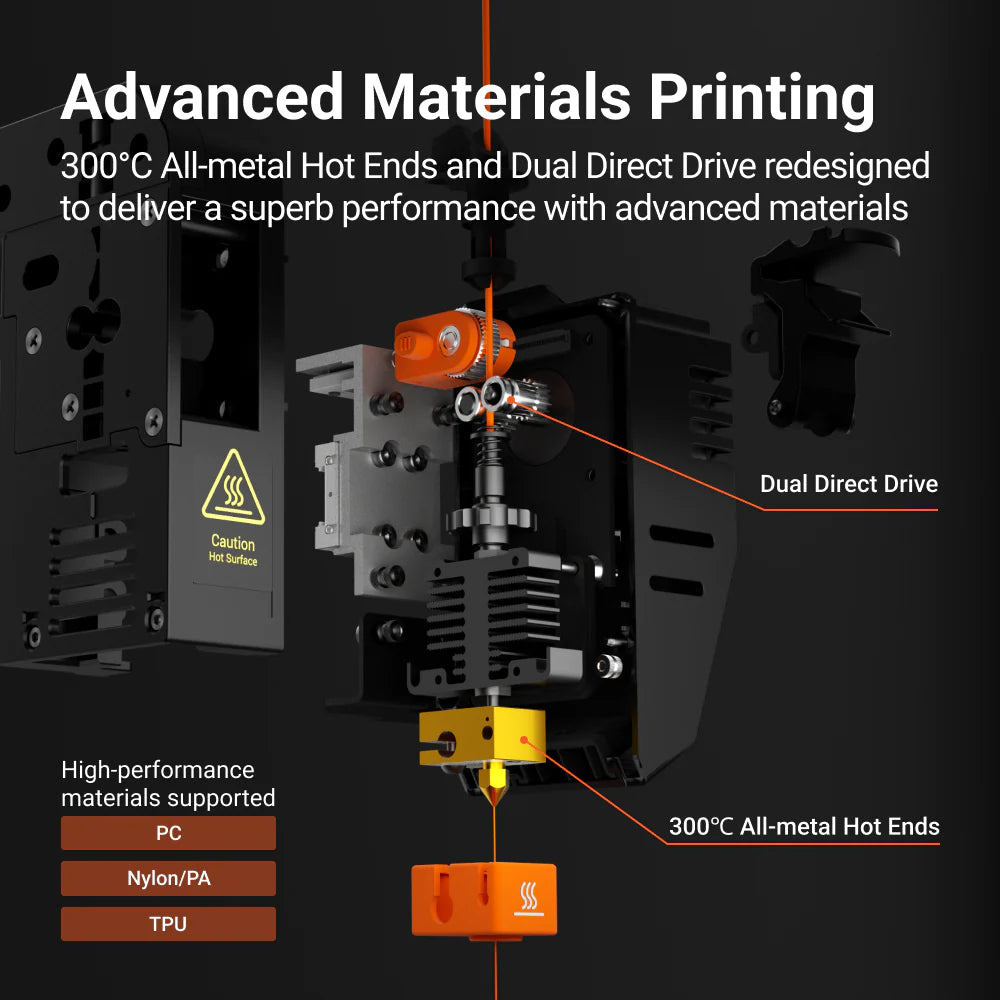

• TPU
• Nylon/PA
• PC
