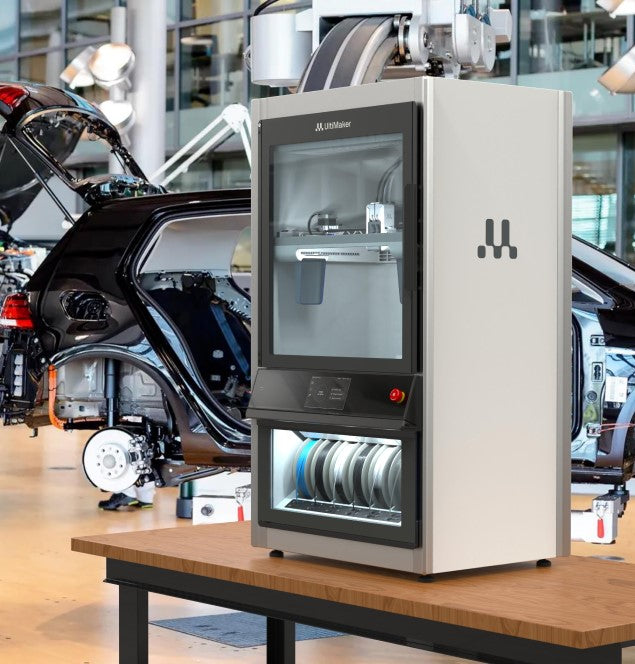

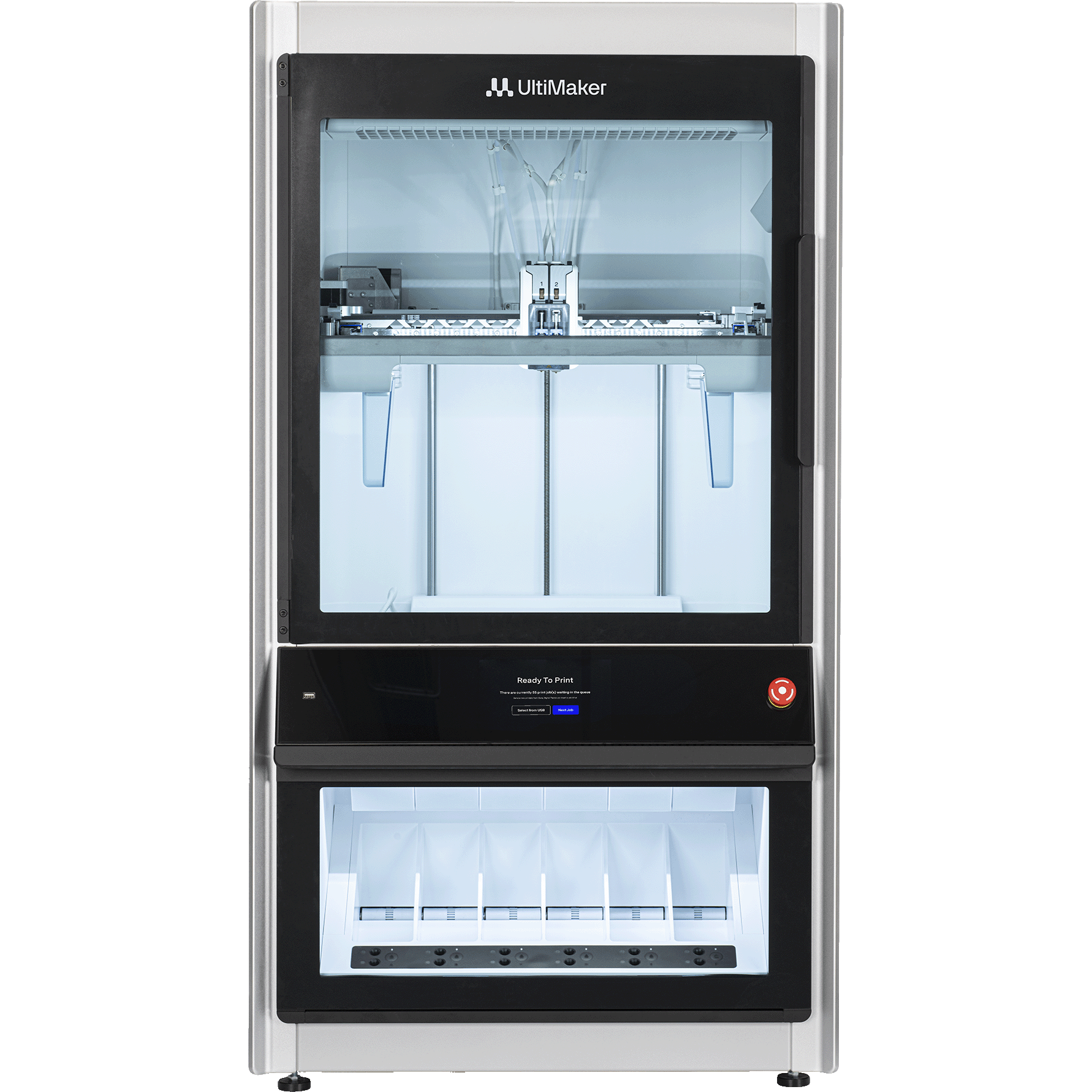

UltiMaker Factor 4

Industrial-grade performance. Reliable. repeatable results

An end-to-end application solution. UltiMaker Factor 4 is tailored for the development. production. and full-confidence deployment of process-critical tools and machine components. Factor 4 keeps operations running. simplifying processes in factories. and reducing human-triggered variabilities. It streamlines factory floor operations with its large effective build volume. direct dual material extrusion. and onboard print process reporting to achieve unrivaled predictability and minimal variance.

The application solution for manufacturing operations

Target Applications

Small batches of auxiliary components.
Manufacturing aids including jigs. fixtures. and assembly tools.
Durable spare. bridge. and service parts for real working conditions.
Functional engineering prototypes.

New Hardware Features

Dual extrusion direct drive print head
Actively controlled build volume temperature
Effective build volume of 330 X 240 mm in XY
Automated material handling system with low relative humidity storage

Materials

14+ Ultimaker materials with NFC recognition
Widest choice of 200+ profiled materials on Ultimaker Marketplce
Including flexible. low Shore A thermoplastic elastomers
Plus composites. mid-high temperature polymers. and stainless steel

Software

Powered by the Ultimaker Cura
Ultimaker Digital Factory for secure printer management file storage. and analytics
Onboard print process reporting for part validation and structural integrity verification
Integration with industry-leading software solutions

Service

Highly modular design for fast and easy repairs
Achieve high uptime with Ultimaker Extended service Policies through Ultimaker customer support agents and our network of service providers

Access to 200+ Marketplace Materials

A wide range of high-performance and certified material properties opens up a huge range of new 3D printing applications on Factor 4.

Manufacturing tools that streamline production

When you need to keep operations running.Factor 4 can help simplify factory processesand reduce human-related inconsistencies. Itfacilitates operations with direct dual material extrusion. support for engineering materials.and onboard print process reporting to achieve unrivaled predictability and minimal variance

High-fidelity functional engineering prototypes

The ability to accurately reproduce functional parts in a wide variety of engineering materials accelerates testing and innovation. Factor 4 is a low-emission. low-maintenance platform that’s safe to leave unattended. Stay in full control with over 400 Cura settings and in-depth part validation tools

Innovation powered by material diversity

UltiMaker PPS-CF is a new high-temperature composite for Factor 4 that can replace complex steel parts. Its heat deflection temperature is greater than 230 C. It’s chemical resistant and flame retardant (UL94 V0). making it a versatile choice for demanding application.

Tested for Accuracy

We have verified dimensional accuracy within 0.2mm or 0.2% nominal length over the full printer build volume using PPS CF. PET CF. Tough PLA. and PET.

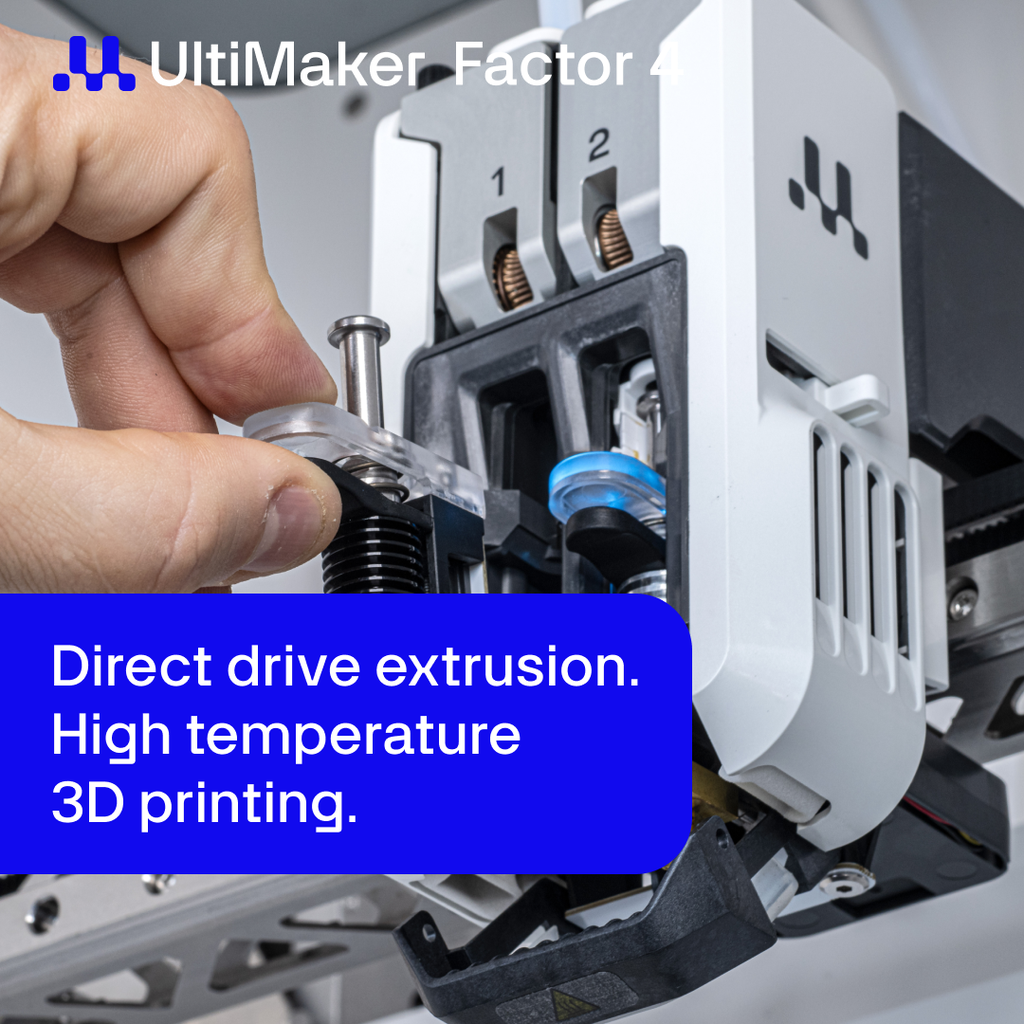

Edge-to-edge Dual Extrusion

3D print with confidence across every millimeter of the 330 x 240mm flexible build plate. And quickly remove parts thanks to its PEI coatin.

Packed with Technology for Maximum Predictability

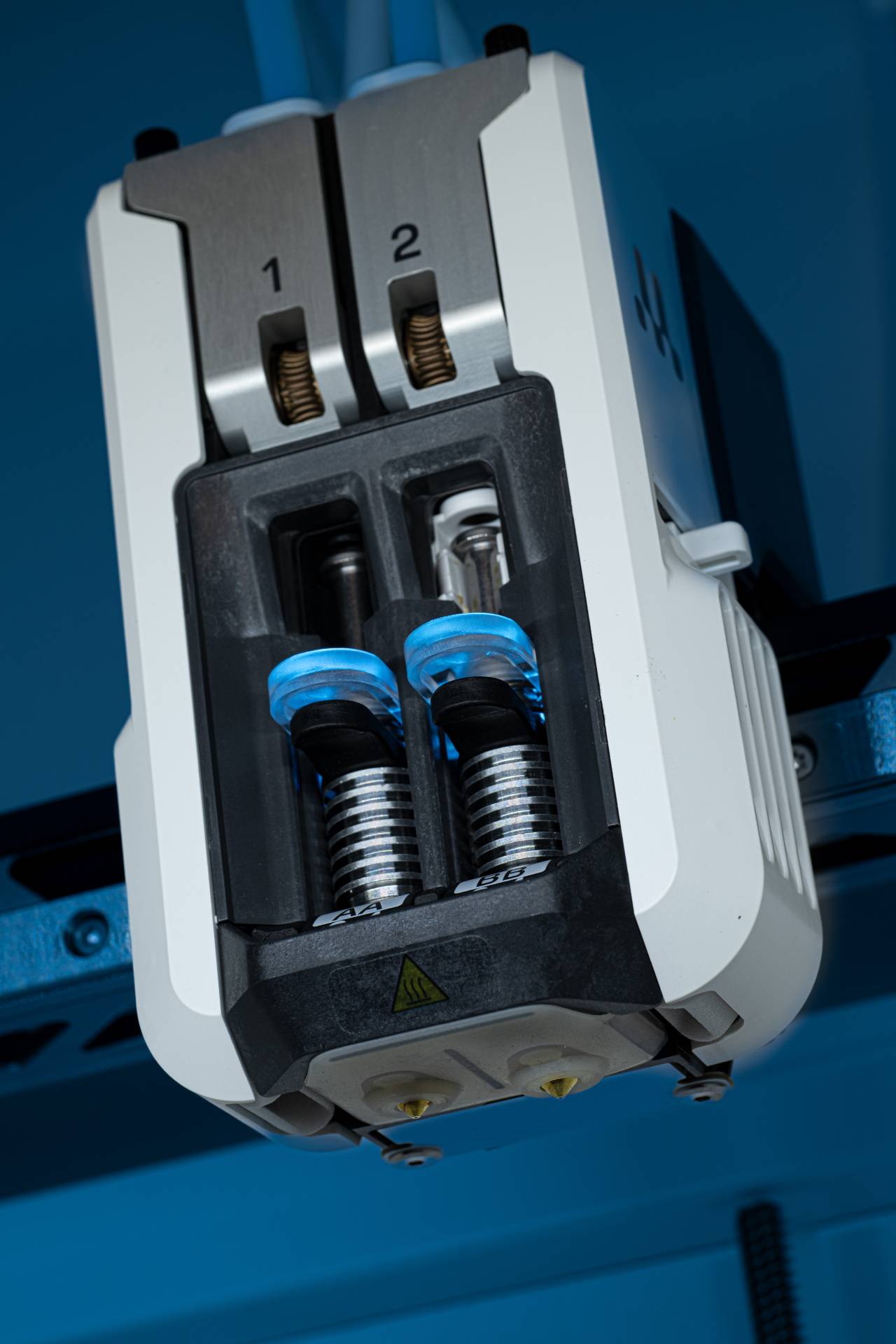

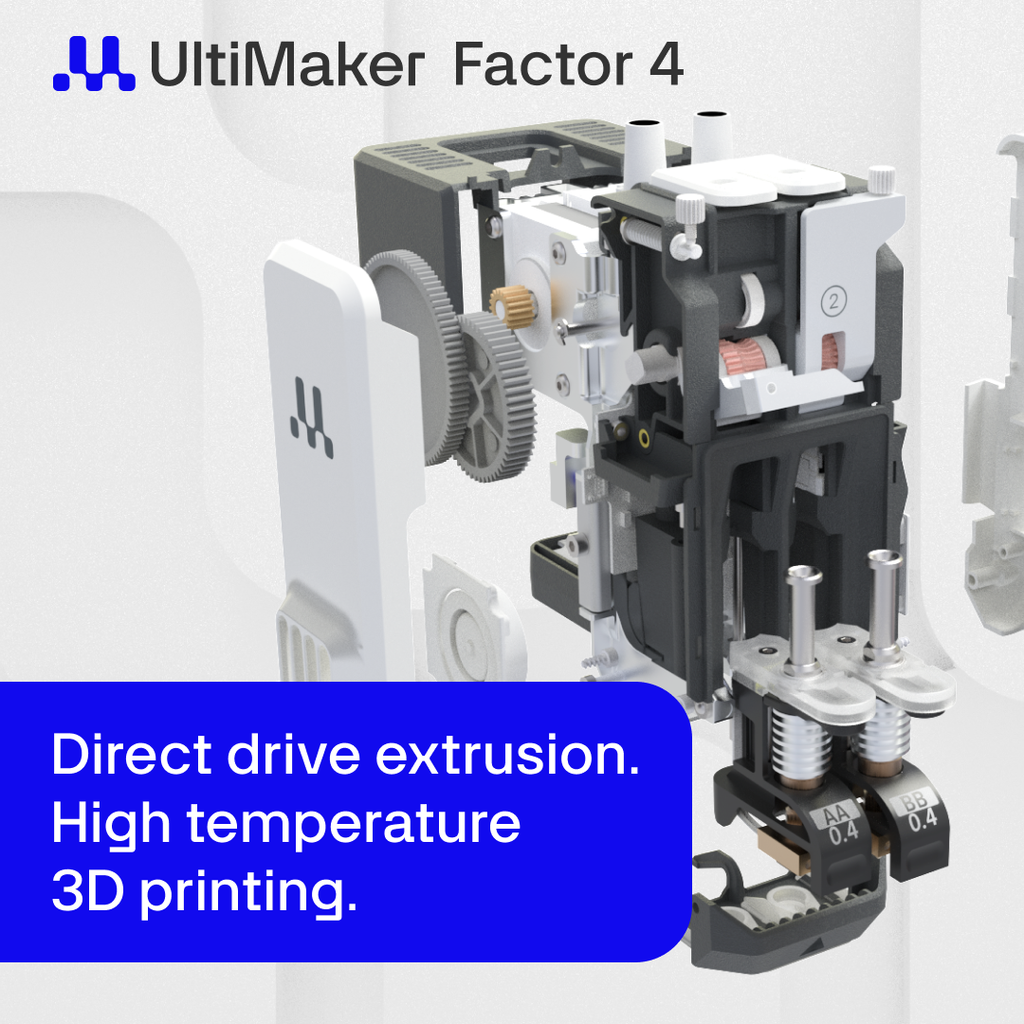

The combination of the all-new H-bridge gantry and direct drive extrusion print head allows high-speed movement and positional accuracy of 0.2 mm or 0.2% of the feature’s nominal length with UltiMaker Verified Materials. This results in best-in-class dual material printing speeds so that you can quickly create the flexible or strong parts you need.

Hassle-free Material Handling

A new. integrated. automatic material handling system reliably manages your spools so you don’t have to. The internal chamber is kept at less than 10% RH in office conditions. so you can keep up to 6 kilograms of filament in perfect condition for back-to-back print jobs.

Innovation powered by material diversity

UltiMaker Factor 4 raises the temperature up to 340 C using the HT print core.
This means that you can now 3D print higher temperature-resistant and durable materials with more confidence.
The temperature within the fully enclosed build volume is also controlled up to 70 C. with a heated bed up to 120 C. ensuring optimal material-specific processing conditions and consistent part quality wherever the 3D printer is located.

Seamless Software Integration

UltiMaker Cura and Digital Factory work together with Factor 4 and UltiMaker materials to provide an easy. secure. and reliable workflow – from 3D model to printed part.

UltiMaker Cura: Easy print preparation for manufacturing

Our software leads the AM industry with its powerful slicing engine. A variety of file types including native CAD files can be directly imported and quickly sliced with pre-tuned application intent profiles. Cura also features:

Over 400 settings to make granular adjustments
Material interlocking for unrestricted multi-material combinations
Sequential printing. ideal for small-batch production
Regular updates that constantly improve the printing experience

UltiMaker Digital Factory: Secure. efficient 3D printing management

With shared workspaces. assigned roles. and file management using the digital library. coordinating your printing schedule is simple. The live HD camera feed on every Factor 4 combined with progress and status updates makes it trivial to handle multiple prints on multiple printers with zero downtime. Digital Factory also includes:

In-depth analytics for review and forecasting (with CSV export)
An overview and history of printer maintenance tasks
Secure remote control to reprint jobs without reslicing

Onboard structural integrity validation

After every print job. receive an in-depth report on extrusion parameters deviations from nominal values. their locations. and their severity in the 3D model. Using a suite of sensors in the print head. build chamber. and material loading system. this print process reporting helps to verify and validate part quality before use in the field.

Modularity at your service

UltiMaker Factor 4 was designed to be modular. This means less production downtime in the event that a part of the printer needs servicing. Under the UltiMaker Factor 4 service plans. an expert technician anywhere in the world will be able to quickly swap the faulty part out for another so you can get up and running again as quickly as possible.

Application and material-matching print cores

UltiMaker print cores feature a quick-swap design and EEPROM chip. They are recognized by Cura and can be quickly changed without tools to meet the requirements of any print job. increasing your efficiency and decreasing downtime.

Type	Nozzle Sizes	Max.Temp	Materials
AA	0.25. 0.4. 0.8	280 C	Up to Polyamides 6. TPU.PC. ABS. PETG
BB	0.4. 0.8	280 C	PVA and other water soluble materials
CC	0.4. 0.6	300 C	Composites. metal
DD	0.4	340 C	High-temp composites. PPS CF. PEKK-A

A safe and function printer station to support Ultimaker Factor 4

Increased ease of use

Easy and safe access to printer rear side for main tenance and repair
Safe displacement and transport
Minimal floor occupancy

Built-in Safety

Tailor-made for Factor 4
Anti-tilting architecture and stability tailored for Factor 4
Lock in mechanisms to fix printer to cabinet

Ergonomically Designed

Perform operations at right height and comfort
Store 18 spools and accessories with lockable drawers

Printing Properties	Technology	Fused deposition modeling (FDM)
?	Extrusion system	Dual-extrusion. direct drive print head with unique auto-nozzle lifting system and swappable print cores
?	Build Volume	Single material printing: 330x240x300mm (13×9.4×11.8in). Dual material printing: 330x240x300mm (13×9.4×11.8in)
?	Filament Diameter	2.85mm
?	Print Profiles Availability	14+ UltiMaker materials. 200+ UltiMaker Marketplace materials
?	Dimensional Accuracy	0.2mm 0.2% feature nominal length. For detailed conditions visit ultimaker.com/factor4
Hardware Properties	XYZ Resolution	6.25.7.8.2.5micron
?	Homing sensor	Optical
?	Build Plate	PEI-coated flexible build plate
?	Build Plate Temperature	Up to 120 C
?	Build Volume Temperature	Actively controlled up to 70 Cwith nozzle plane temperature uniformity within: 3 C for temperatures <50 C 5 C for temperatures <70 C
?	Extrusion flow	Closed loop flow compensation
?	Max. Extrusion Temperature	280 C: Print core AA. BB. DD. 300 C: Print core CC. 340 C: Print core HT.
?	Compatible Print Cores	Print core AA (0.25mm. 0.4mm. 0.8mm). Print core BB (0.4mm. 0.8mm) Print core CC (0.4mm. 0.6mm). Print core DD (0.4mm) C available in selected regions. Print core HT (0.6mm)
?	Closed Loop Fans	Air filtering fan. air recirculation fans. print cooling fans. print core cooling fan
?	Material handling capacity	6 bays with NFC recognition (max. 1kg spool size)
?	Material humidity control	Average relative humidity <15% in all operational conditions

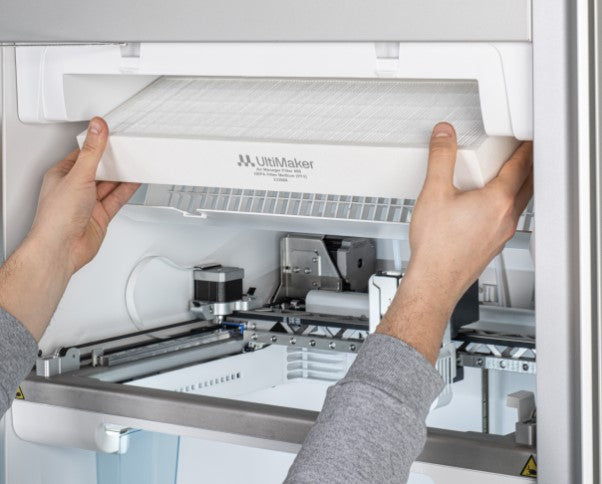

?	Filtration system	HEPA H13
?	Monitoring	HDR (high dynamic range) 1920×1080 px HD camera
?	Emission rate (UFP & VOC)	UltiMaker filaments below limits listed in UL-2904
?	Display	7-inch touchscreen (resolution 1024x600px)
?	Connectivity	Wi-Fi 2.4&5GHz: IEEE 802.11a/b/g/n/ac LAN: Gigabit Ethernet USB: 2.0
?	System on module	NXP i.MX8 Mini Quad (4×1.8GHz). ARM Cortex-A53. 2GB LPDDR4 16GB eMMC
?	Real time controller	i.MX RT1064. Arm Cortex-M7 600MHz. 1MB SRAM
?	Power requirement	100 C240V AC. 50 C60Hz max.. 6A
Physical Dimensions	Dimensions	695x605x1287mm (27.5x24x51in)
?	Weight	120kg (265lbs)
?	Shipping dimensions	760x800x1587mm (30×31.5×62.5 in)
?	Shipping weight	137kg (309lbs)
Ambient Conditions	Operating sound	<50 dBA in operation
?	Operating environment	Operating: Temperature: 18 C C30oC. humidity: 30 C70% RH. Storage: Temperature: 5 C C40oC. humidity: 20 C90% RH
Software	Print job preparation	UltiMaker Cura 5.7.1 or newer
?	Print job management	UltiMaker Digital Factory
?	File types supported	UltiMaker Cura: STL. OBJ. 3MF. Printable formats: G. GCODE. UFP. STEP
?	System requirement	Windows 7 (64-bit). Mac OS X 10.12. OpenGL 2.1 4GB RAM (8GB recommended)
?	Print process reporting	Supported
?	Security	Active firewall and PIN code settings protection
Safety and compliance	Warranty period	12 months limited warranty
?	Certifications	For a detailed list of certifications visit ultimaker.com/factor4
?	Safety features	Red stop button immediately stops motion and heat sources. Open door sensor pauses motion and extrusion

The Widest Material Choice on the Market

Choosing the right material is critical to the success of your 3D print. UltiMaker’s open filament system lets you print with any 2.85 mm filament. and print profiles from the UltiMaker Marketplace streamline print preparation and maximize your print success rate.
