UltiMaker Metal Expansion Kit
15
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：
Description

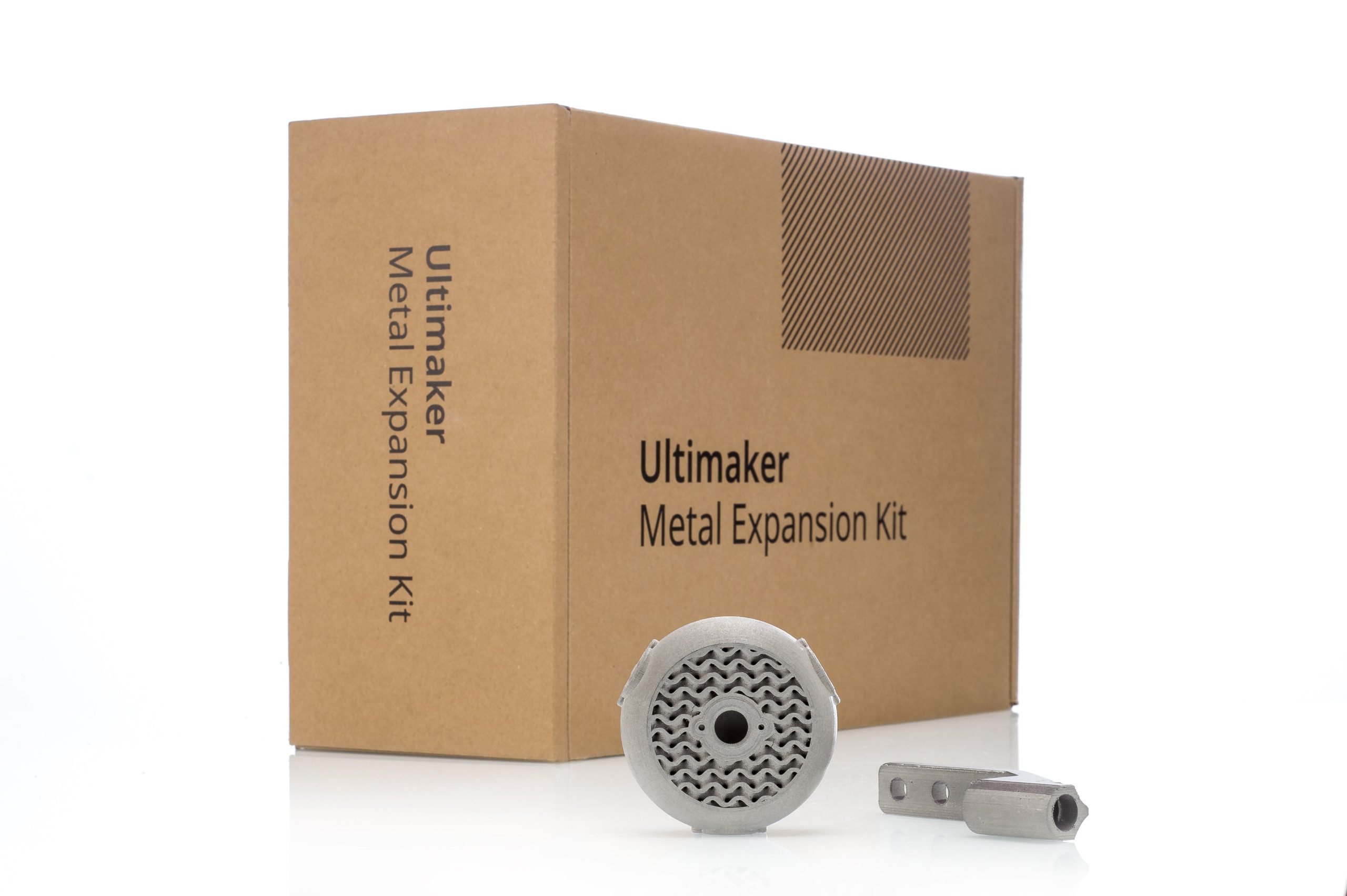

Ultimaker Metal Expansion Kit
The easier. end-to-end stainless steel workflow
Take advantage of a new range of metal 3D printing applications by upgrading the Ultimaker S5 with the Metal Expansion Kit. Its seamless workflow makes creating stainless steel parts easier. more efficient. and affordable.
3D print your part
Step 1. Print with BASF Forward AM Ultrafuse? 17-4 PH stainless steel filament2 to create a green part
Send to post-process
Step 2. Send your green part for post-processing by BASF’s network of certified debinding and sintering services
Track and receive
Step 3. Track debinding and sintering progress via an online portal. and receive your part back in 10 business days
Use your metal part
Step 4. Put your finished metal part to use C from small series of tools to auxiliary components
Freedom to design high-quality steel parts
The Ultimaker Metal Expansion Kit combines 17-4 PH stainless steel with a metal-optimized support material. This offers the freedom to create high-strength parts with complex geometries.
On top of that. Ultimaker Cura 5 includes extra metal FFF features. gives you full control and ensures a more reliable and high-quality result.
Metal parts. Up to 90% cheaper
Reliable metal 3D printing doesn’t have to be expensive. The Ultimaker S5’s low total cost of ownership and small size makes it easy to adopt and scale an affordable metal 3D printing solution.
Compared to CNC and other additive methods. you can achieve up to 90% cost-savings. And because the Ultimaker S5 can fit on your desk. this solution is easy to adopt and scale based on your need for small series of metal tools and auxiliary components.
Plastic or metal? You decide
Being able to 3D print either plastic or metal on the Ultimaker S5 opens up a wider range of potential applications. Just switch out the print cores to switch between materials!
This gives you the flexibility to 3D print using an even wider range of materials all on one machine C from simple PLA or Tough PLA. to engineering-grade polymers. to stainless steel.
Key Features
What’s included
The Ultimaker Metal Expansion Kit includes:
- BASF Forward AM Ultrafuse? 17-4 PH (1 kg)
- Ultimaker Print Core CC 0.4
- Magigoo Pro Metal (50 ml) adhesive
- Ultimaker Cleaning Filament (10 pcs)
- Ultimaker Glue release tray
- MFFF Ultimaker Academy (E-learning) courses
- Debinding & Sintering(D&S) Voucher (for D&S up to 1 kg of parts)
- Free Ultimaker Cura software with optimized metal part slicing features

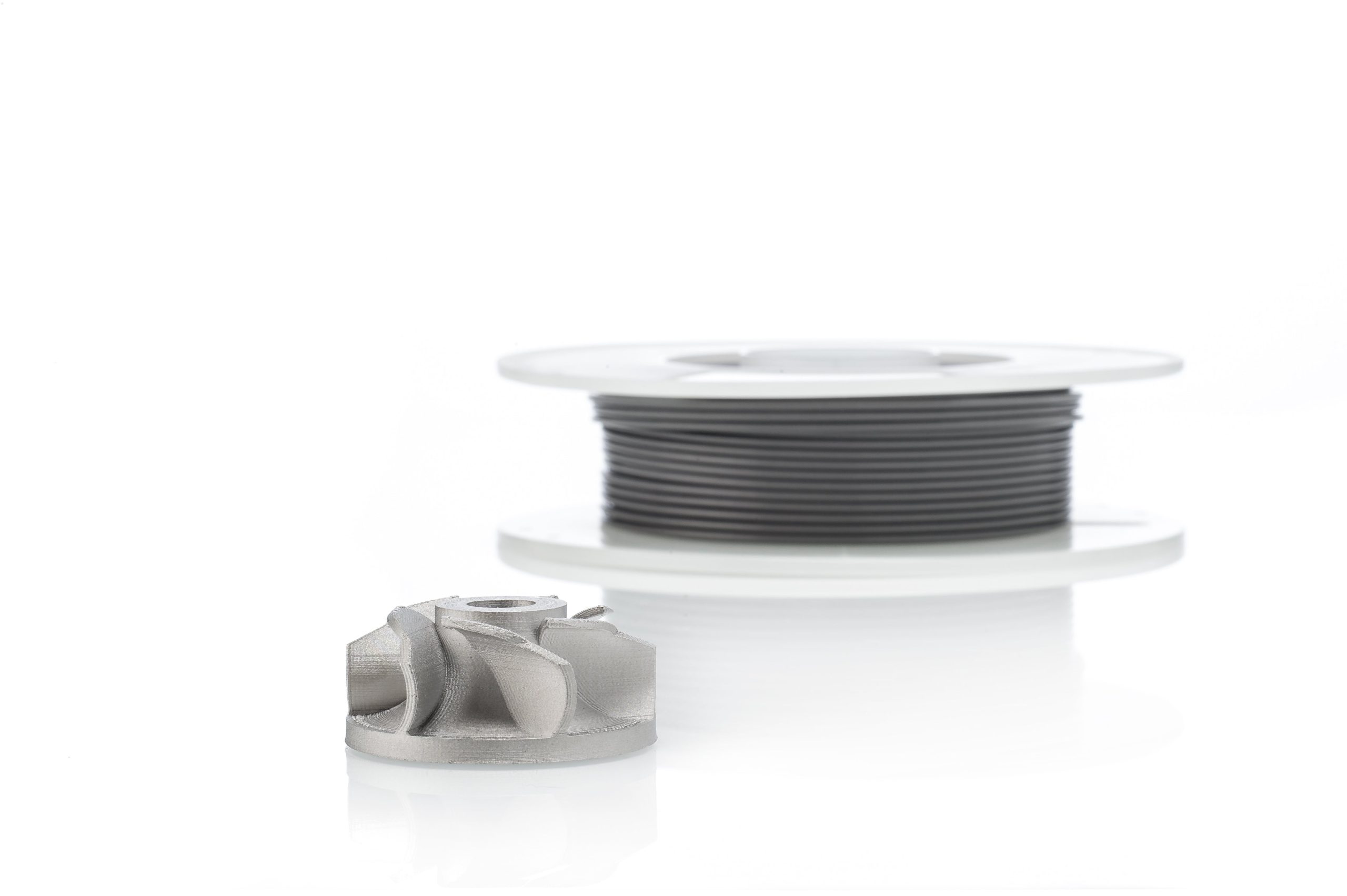

BASF Forward AM Ultrafuse? 17-4 PH
BASF Forward AM Ultrafuse? 17-4 PH is an ideal stainless steel for high-strength and stiff parts. It is also capable of withstanding the harshest operating conditions thanks to its excellent corrosion and heat resistance.
These properties are achieved through a proven catalytic debinding and sintering process used for traditional metal injection molding.
Post-processing
Each Ultimaker Metal Expansion Kit includes a voucher toward post-processing your 3D print into a full metal part within 10 business days.
This is possible via BASF’s network of certified debinding and sintering services. Via an online portal. you can book your part’s post-processing on the calendar and check in on your part’s progress at any time.
Software
The Ultimaker Metal Expansion Kit unlocks extra features inside the Ultimaker Cura 5 engine.
These make metal print preparation simpler C automatically and accurately compensating for shrinkage that happens during sintering across all axes. You gain better control over your part and increased metal print success.
E-learning
New to metal 3D printing? The Ultimaker Metal Expansion Kit gives every user access to an exclusive. 1-hour e-learning course.
Get step-by-step guidance through the full workflow. And learn to successfully create high-quality metal parts with an Ultimaker printer.
Explore High-Strength Applications
The Ultimaker Metal Expansion Kit makes it easier. more efficient. and more affordable to create steel parts and tools.
Scroll down to see what’s possible with metal 3D printing (MFFF)
Auxiliary Components
Non-critical parts sed in final products
Engine bracket
Liebherr Componentes Colmar SAS
MFFF reduced the mass of Liebherr’s original bracket by nearly 60%. while providing 3x the load-bearing capacity for added safety.
Paddle fan mount
Schwartz Off Road Motorsportz
When carbon reinforced nylon wasn’t enough. this innovative racing team turned to low-cost MFFF C with winning results.
Solar panel bracket
Sparox 3D and Wien Energy
3D printing stainless steel to replace aluminum resulted in a more weather resistant part and thousands of Euros saved.
Gear shift lever
Kawasaki Motors Corp.. USA
A more cost-effective and easily customized part 3D printed with stainless steel C with the added benefit of “”fuzzy skin””
Welding fixture
Hoedtke 3D Additive
Replacing plastic injection molded parts with metal for a huge cost saving in avoided machine modifications.
Functional prototypes
Usable parts to test a concept or process
Heat exchanger
A single-piece heat exchanger with optimized internal geometry that would be impossible to create without using additive metal technology.
Cutter tool
A design optimized with complex internal geometry made easy with MFFF. This allows cooling fluid to flow in this cutting tool.
Pump impeller
Additive metal manufacturing makes it easier to iterate on complex shapes that would usual require expensive 5-axis CNC milling.
Tooling
Custom metal devices for a specific function
Engine assembly tool
Liebherr Componentes Colmar SAS
Compared to CNC fabrication. this 3D printed tool saved Liebherr 50% on production costs and resulted in less wasted material.
Spherical gripper
An optimized end-of-arm tooling part that would be almost impossible to produce without metal 3D printing and generative design.
Vacuum gripper
A polymer part redesigned with metal FFF in mind. This EOAT can easily withstand the wear and tear of pick-and-place operations.
Window tool
Wien Energy
Replace your windows or replace the obsolete tool to open them? MFFF with Ultimaker 3D printing made the cheaper option possible.
Custom hammer
A concept tool to showcase what can be achieved with plastic and metal 3D printing when combined with standard post-processing techniques.
Learn more
Roundtable: Developments
in Metal FFF
Printing with metal in FFF has long been an area of high interest for 3D printing users. In this free webinar we dive in to the topic. exploring exciting new developments that are pushing the technology’s boundaries C as well as showing how the Ultimaker Metal Expansion Kit works.
Product Number: 234007
