UltiMaker S5

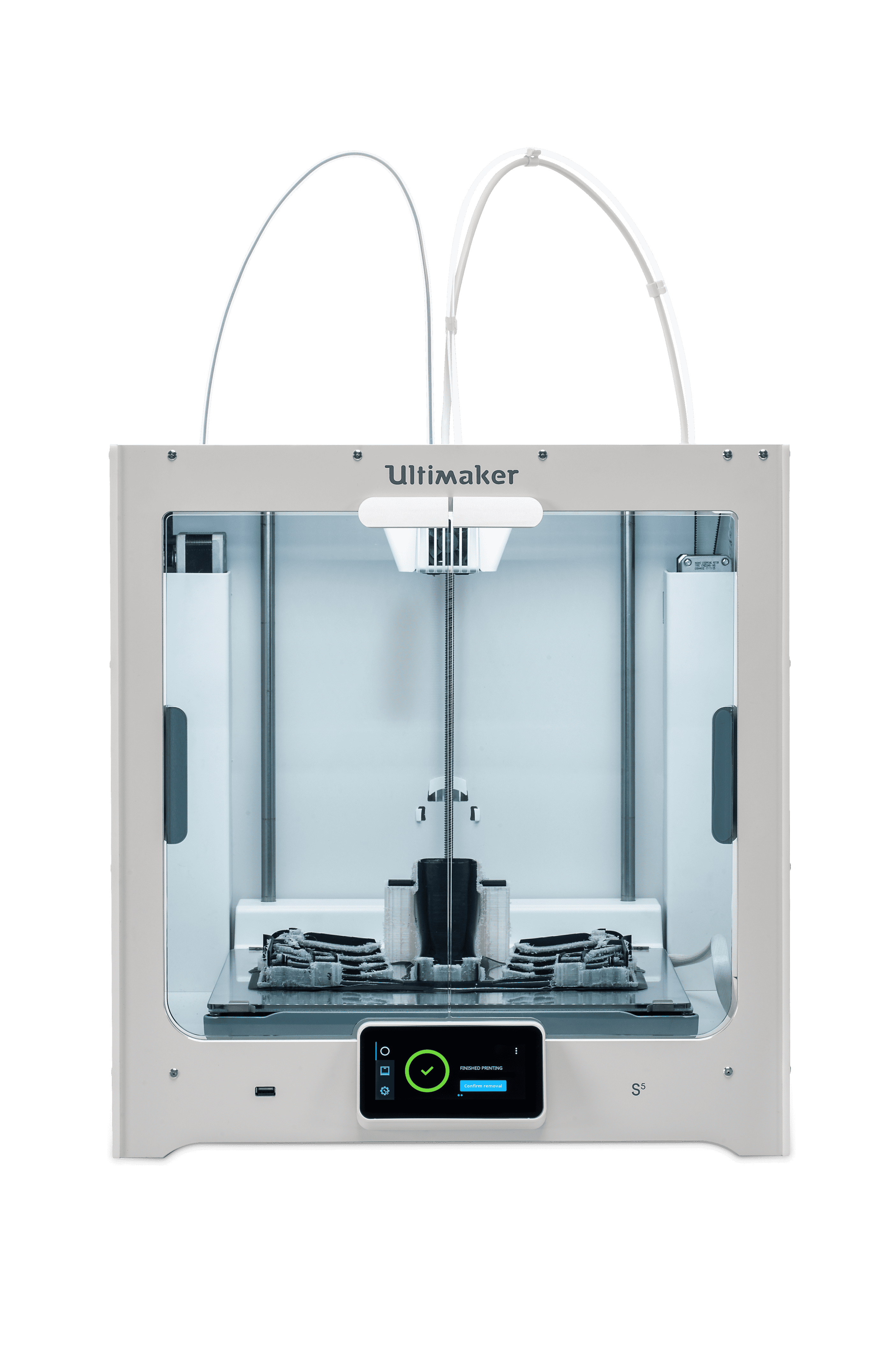

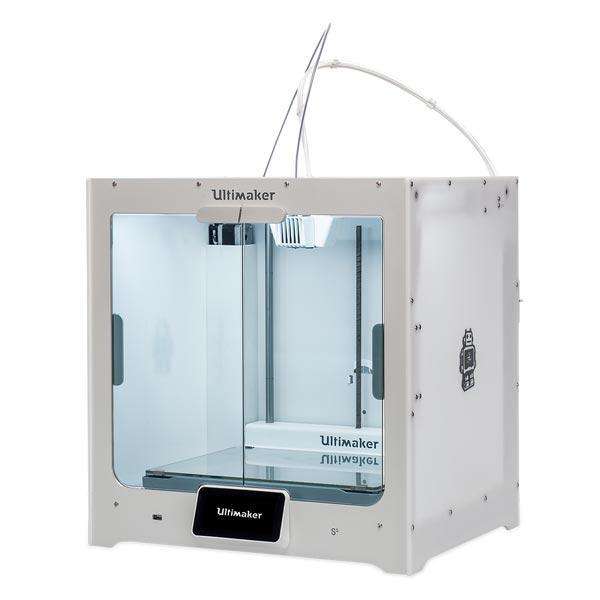

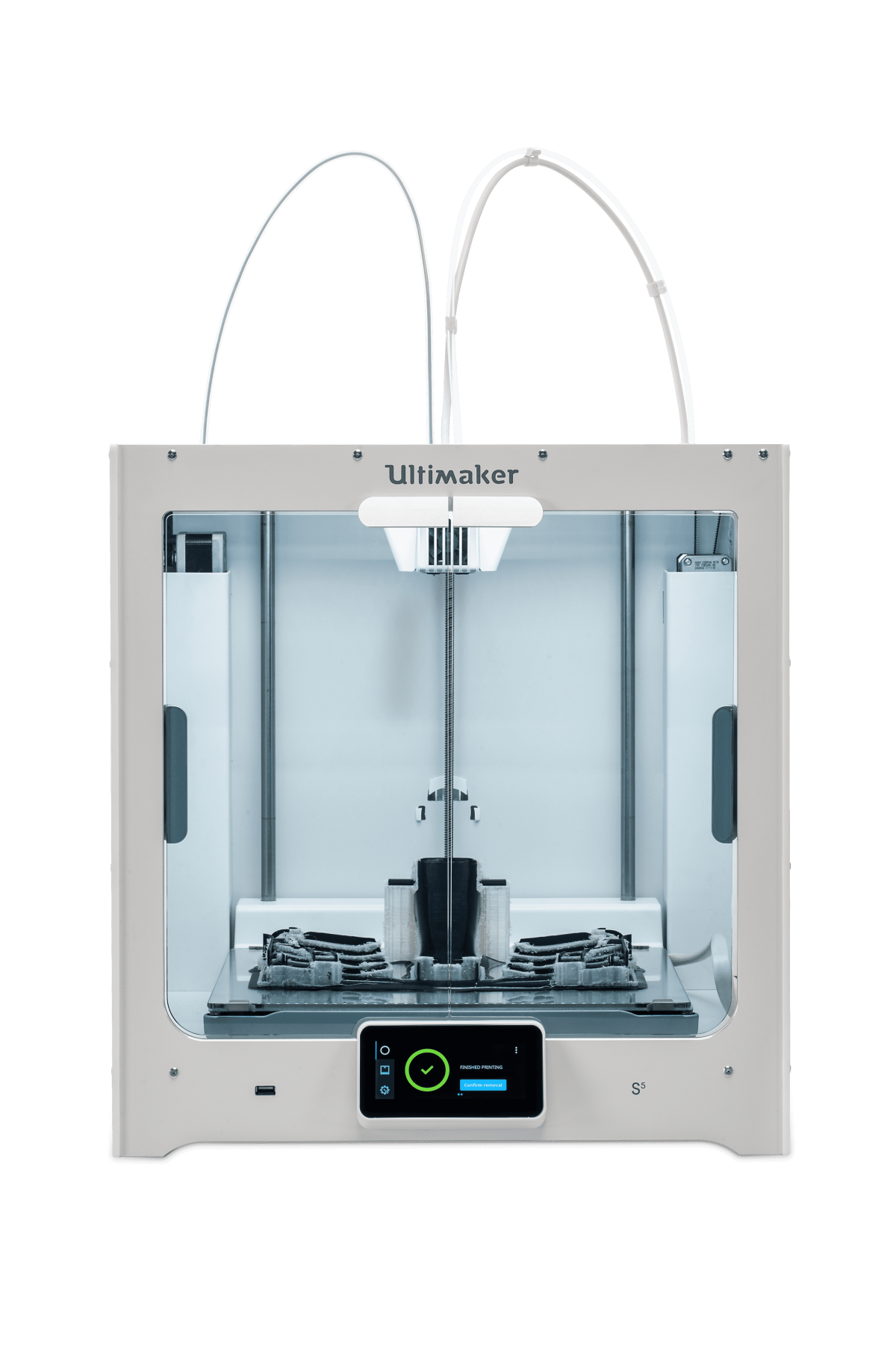

Ultimaker S5 3D Printer

Expand your 3D Printing Ambitions

Ultimaker’s flagship 3D printer offers reliable dual extrusion on a larger scale. Create functional prototypes. production tools. and strong end-use parts made from advanced polymers and composite materials C thanks to tested. predefined print settings. The Ultimaker S5 also features advanced active leveling. filament flow sensors. and an intuitive touchscreen to make your 3D printing experience simpler and easier.

Key Features & Benefits

24/7 capacity. Always-on productivity

Composite-ready dual extrusion

330 x 240 x 300 mm build volume

Advanced auto bed leveling

Compatible with over 200 materials

Enhanced Reliability

With the Ultimaker S5’s enhanced reliability. you can trust it to do its job right the first time. while you get back to work. With advanced active bed levelling. the S5 always lays down a perfect first layer. The Ultimaker S5’s dual filament flow sensors will pause your print and notify you if you run out of material. These features. combined with Ultimaker’s class leading build quality. give you a printer that is sturdy. reliable. and reduces time spent trying to find problems.

Larger Build Volume

The Ultimaker S5 boasts a large build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8″”). Meet your demand with increased efficiency by printing larger parts or multiple smaller parts at once. The Ultimaker S5 gives you all this space to work while fitting comfortably on your desk or workstation.

Advanced Filament Compatibility

Ultimaker works tirelessly to work with the leading material manufacturers around the globe to provide Ultimaker users with pre-tuned settings for the best filament to meet your use-case. The Ultimaker S5 is an easy way to print with some of the world’s most advanced filaments – including glass and carbon fiber composites.

Free Access to Ultimaker Essentials

Ultimaker Essentials gives you the tools you need to start 3D printing at work. while meeting IT requirements. Features include remote printer management. firmware firewalls. verified plugins. and direct support.

Discover Ultimaker Essentials

3 Easy Steps to Transform your Workflow

1. Prepare Your Model

Import from CAD. choose your material. slice with optimized settings. and remotely send your print job C all in a few clicks.

2. Start 3D Printing

Get on with your work. knowing the Ultimaker S5 is reliable and safe for unattended use.

3. Use Your Part

Create prototypes. tools. and parts with almost any mechanical properties C thanks to world-leading material compatibility.

Complete the Bundle

Upgrade to 24/7 Productivity

Combining the Ultimaker S5 with the Air Manager. and Material Handling Station gives you full environmental control of the entire 3D printing process from start to end. Up to 6 rolls of filament can be stored and automatically managed in the Material Handling Station. controlling humidity to provide super reliable printing. Using the air manager also allows you to passively heat the build chamber and filter up to 95% of ultrafine particles. creating a safer working environment.

Learn More

Trusted by the World’s Leading Brands

What UltiMaker’s Partners Say

Volkswagen

“”Last year. we produced around 1.000 different 3D printed parts. The benefits of these are improved ergonomics. productivity. and operator satisfaction. In the end. we get very good feedback from the operators working on the line.””

Luis Pascoa. Pilot Plant Manager at Volkswagen Autoeuropa

Read the full story

Heineken

“”So far in the pilots that have ran. we’ve significantly seen a cost reduction in the functional applications that we’ve found from 70 – 90%. On delivery time we’ve seen the same decrease.””

Isabelle Haenen. Global Supply Chain Procurement at Heineken

Read the full story

ZEISS

“”We chose UltiMaker because the machines are reliable and the results are repeatable. That’s important for us. for a stable production process.””

Johannes Grimm. Manager Operation Excellence at Carl Zeiss Optical Components

Read the full story

Ford

“”If you compare our 3D printed tools to conventionally manufactured tools. we can easily save approximately 1.000 per tool. which is of course a lot when you consider all the tools which are needed to produce a vehicle.””

Raphael Koch. Research Engineer R&A at Ford Europe

Read the full story

Compare UltiMaker’s 3D Printers

Technical Specifications

Dimensions

• ? Build Volume: 330 x 240 x 300 mm (13 x 9.4 x 11.8″”)
• ? Assembled Dimensions: 495 x 585 x 780 mm (19.5 x 23 x 30.7 inches)
• ? Printing Technology: Fused Filament Fabrication (FFF)
• ? Compatible Filament Diameter: 2.85 mm
• ? Weight: 20.6 kg (45.4 lbs)
• ? Power Input: 100-240 VAC. 50-60 Hz
• ? Maximum Power Output: 500W

Printer Properties

• ? Layer Resolution:
  • 0.25 mm nozzle: 150 – 60 micron
  • 0.4 mm nozzle: 200 – 20 micron
  • 0.6 mm nozzle: 300 – 20 micron
  • 0.8 mm nozzle: 600 – 20 micron
• ? XYZ Resolution: 6.9. 6.9. 2.5 micron
