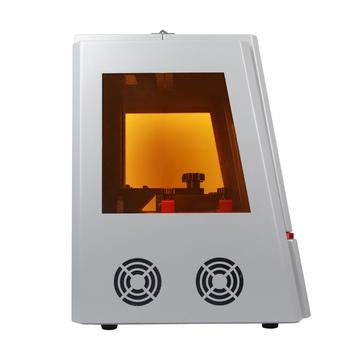

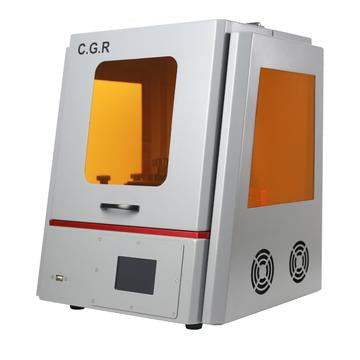

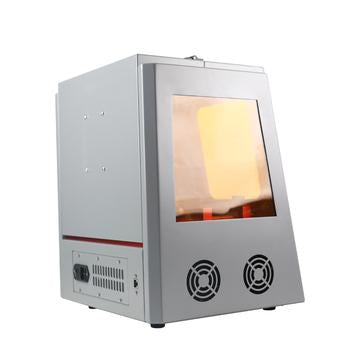

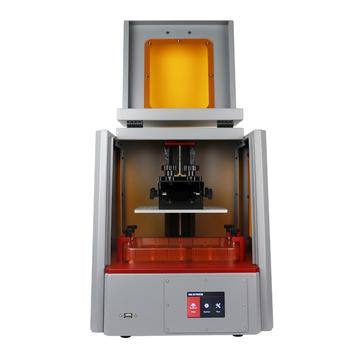

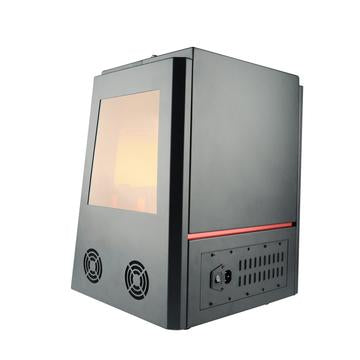

Wanhao CGR Resin Printer – 4K 8.9 inch Mono LCD
12
People watching this product now!
-
Warranty 1 year
-
Free 30-Day returns
付款方式：
Description
USA Wanhao North American Master Distributor
The following is included in the price:
-
All custom duty fees and import taxes paid for in advance by U3DPS
-
Free shipping anywhere in the continental United States
-
Stateside support provided by U3DPS
-
Stateside factory warranty provided by U3DPS
?
Technical Specifications |
|
Machine Type |
DLP (Digital Light Processing) LCD 3D Printer |
Hardware? |
|
Max printable area |
192*120*180mm(7.5 |
Accuracy |
X 0.075mm(75um)Y 0.075mm(75um)Z 0.010mm(10um) |
Printing speed |
10-40mm/hr |
Optical Uniformity |
UV LED array( Maxim) Design with 90% Optical Uniformity |
UV Type |
405 nm UV lamp.? |
Packing size(cm) |
470*460*575mm |
Enclosure Type |
Tilt Hood with UV safe glass |
Net Weight(kg) |
22kg |
Gross Weight(kg) |
28kg |

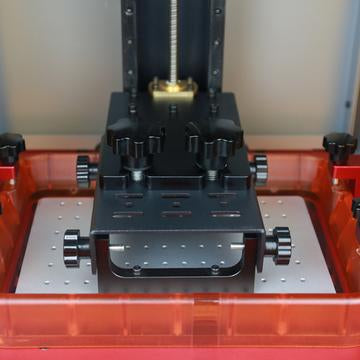

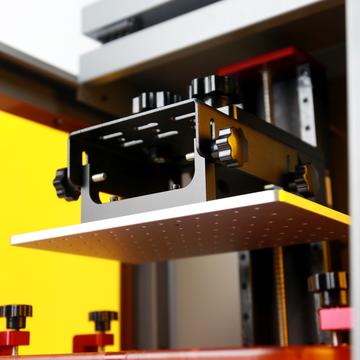

Z axis movement |
Reinforced double linear guide with Gap eliminated ball screw |
Screen |
Customize 4K LCD |
Light |
UV LED Array design(150W. 405nm) |
End stop sensor |
Optical Endstop(sensitive to 2um) |
Vat |
Teflon vat( 10 times life span than traditional PDMS) |
Software |
Chitubox |
Workmanship |
Build with CNC machining parts and Aviation Grade aluminum alloy.? |
Cooling system |
Build in 6 silent super cooling fan |
Temperature monitor |
Build in temperature monitor system provide on time monitoring and warning notice. |
Leveling monitor system |
Build in leveling monitor. leveling before you print |
Material supported |
405nm Resin |
Max printing speed |
Up to 60mm/hour |
