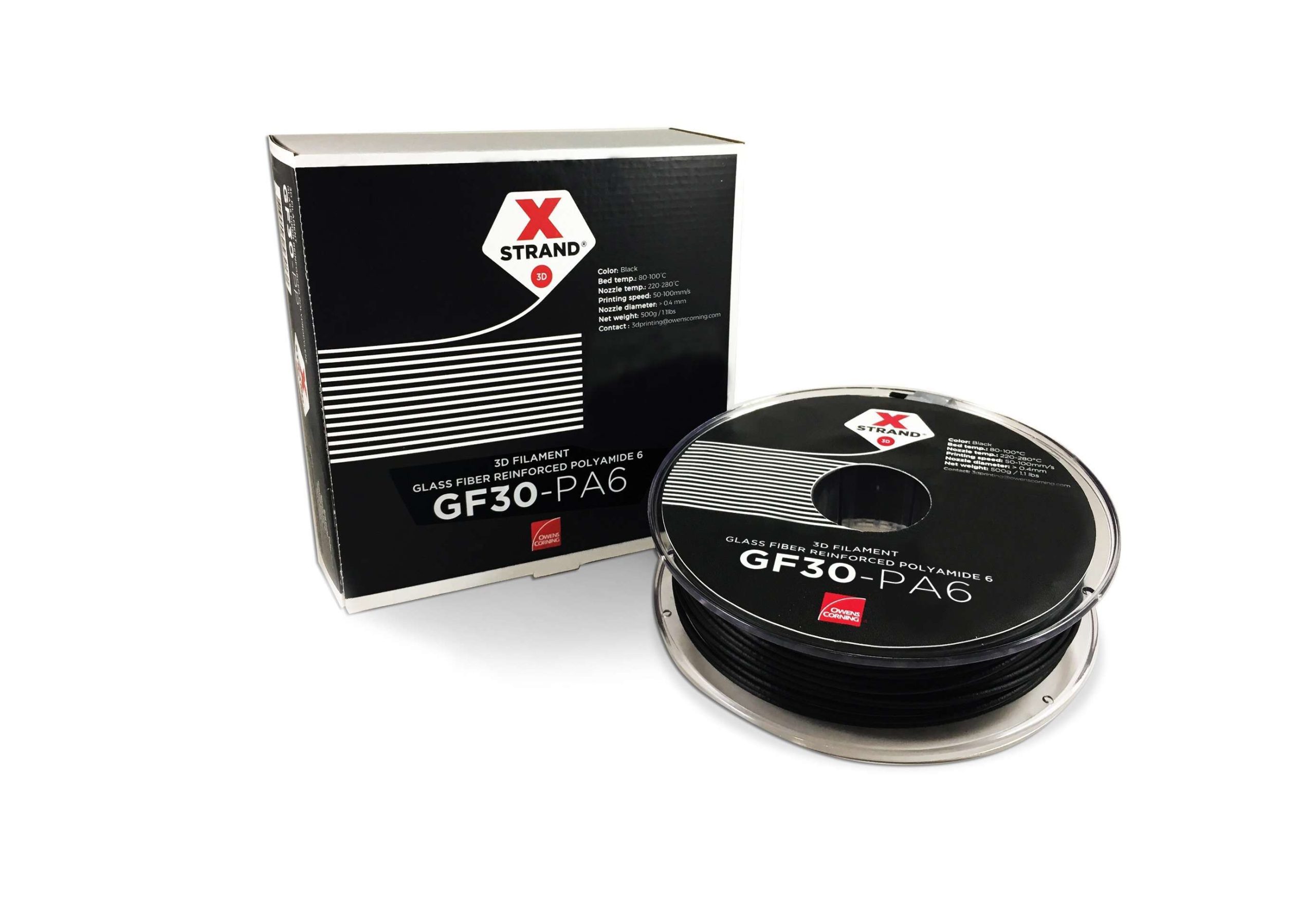

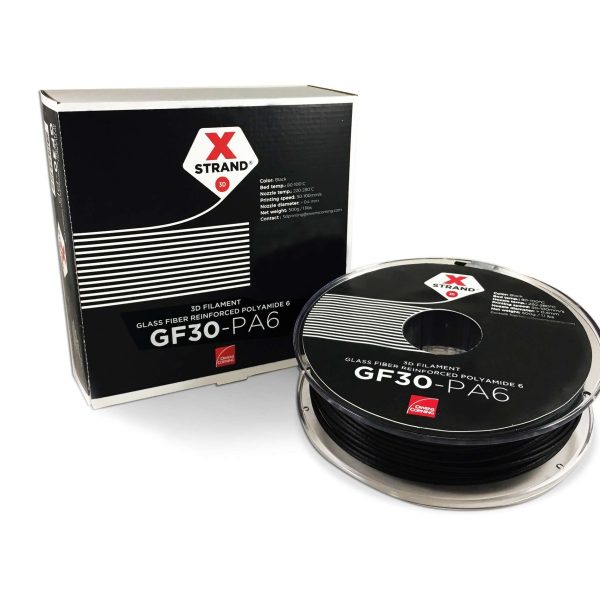

XStrand? GF30-PA6 Filament – Black 2.85mm (500g)

GF-30 PA6:

Features and Benefits:

– Materials designed for functional prototyping and industrial applications
– Engineered reinforced plastics
– Very stiff and strong
– Large operational temperature range: -20 ?C to 120 ?C
– Good chemical and UV resistance
– Excellent layer adhesion
– No warping

Printing Recommendations:

– XSTRAND? filaments are designed to be compatible with most of open fused filament fabrication 3D printers available on the market.
– Hardened steel nozzle is highly recommended to print XSTRAND?. When melted. XSTRAND? filament can be abrasive due to its glass reinforcement. Using hardened steel nozzles and extruder driving wheels is advised. Hardened steel nozzles can be found at

https://www.p3-d.com/collections/duraplat-3d-extruder-nozzles

???????????????????????????????????? or

https://www.3dxtech.com/e3dv6-hercules-a2-hardened-steel-nozzle/

– Nozzle diameter: >0.4mm
– It’s recommended to start with default setting for nylon materials in the slicer software.
– Nozzle temperature: 220 C 280 ?C

– Bed temperature: 80-110 ?C
– Better bed adhesion is achieved using the following components for standard nylon printing.
– Perforated bed (such as the one on Zortrax machines). If you are using a perforated bed. you don’t need kapton tape or glue sticks.
– If you are printing on glass bed. a regular all-purpose elmer’s glue stick is preferred for better bed adhesion.
– If you are printing on PI Katpon adhesive tape. a glue stick is also recommended.
– Or you can choose to use a PEI sheet

Case studies:

About Owens Corning:

– A world leader in glass fiber composite
– More than 500 researchers in five R&D centers
– $5.7 billion sales (2016)
– 17.000 employees in 33 countries
– 3D Printing labs in Ohio. USA and France

	? ?

?
